Product Details:
|
| Product Name: | Waterproof Anti 400w Signal Jammer | Application: | Prison, Jail, Military |
|---|---|---|---|
| Jamming Range: | 50 - 600meters,depend On Signal Strength Of Mobile Network | Antennas: | Omni Fiberglass Or Directional Panel Antenna |
| Operating Temp: | -20℃ To +55℃ | Weight: | 28kg |
| High Light: | cell phone signal blocker,cell phone signal scrambler |
||

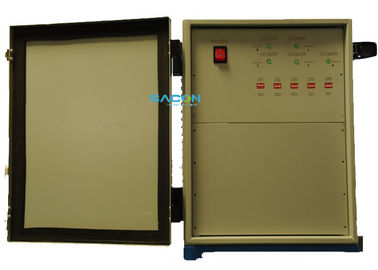

4 Bands 400w Waterproof Cell Phone Signal Jammer Used For Prison Jail
Description:
This cell phone jammer is a waterproof model. Using high quality waterproof case, ensure stability of the
equipment, even work in bad weather conditions.
Equipped with special high gain directional planar antenna or fiberglass omni-directional whip antenna, the
waterproof signal jammer can effective block CDMA/GSM/DCS /3G/ LTE/WIMAX / Wifi /GPS.
Use the overseas advanced chip and technology . With independent modular design, it keeps high
operation efficiency, and avoid mutual interference.
This signal blocker 100 watts per band, total RF power 400 watts, also with power adjustable switches to
control the radius range. It is suitable for prisons, detention houses, military bases, large oil fields and all
other outdoor places where need the signal to block.
Competitive Advantage:
1. Using high quality waterproof case, ensure stability of the equipment even work in bad weather
conditions.
2.with good cooling system, can operate for long time.
3.Using digital interference technology, overall effective suppression of target spectrum.
4.independent module design. Each module can separate switch,disassemble. So it is convenient for
maintenance and update.
5. Perfect Alarm System, fully protected circuit in case of disconnection of antennas.
Features:
1. High-power multi-band jammer, make high jamming range
2. Modular construction for easy maintenance, repair and upgrade.
3. Jamming up to 4 different jamming modules.
4. Max 400watts total RF output power.
5. Special additional housing for all weather protection.
6. The general design of the system meets military requirements.
7. Different frequency band can be controlled independently by single switches;
8. Power Amplifiers protection design ensures the working reliability of the device.
9. Can customize these frequencies AM, FM Radio, LoJack 173MHz, VHF, UHF, Walkie-talkie, interphone,
Wireless Toys , FM Radio, Remote Control, 27MHz, 49MHz, 433MHz,315MHz, 868MHz, 450MHz, iDEN,
CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA,UMTS,3G,4G,LTE 700, LTE 800, LTE 2300, LTE 2600,
GPS L1,GPSL2, Galileo, Compass, Glonass, WIFI, Bluetooth, Spy camera, WIMAX, UAV, Drone, etc.
Applications:
1. prison
2. Military camp
3. detention houses
4. oil fields.
5. Museums
6. Drug Enforcement
7. Secret Services
Technical Specification:
| Output interface | Description | Shield band of frequency | RF output power | |
| CH1 | CDMA800 | 851-894 MHz | 50dBm | |
| CH2 | WCDMA 3G | 2110-2170 MHz | 50dBm | |
| CH3 | GSM900 | 925-960 MHz | 50dBm | |
| CH4 |
GSM1800 /PCS 1900 |
1805-1880 MHz /1930-1990 MHz |
50dBm | |
| WIFI, 2.4G(Optional) | 2400-2485 MHz | |||
| LTE 2600(Optional) | 2620-2690MHz | |||
| GPS L1(Optional) | 1570-1580 MHz | |||
| LTE800(Optional) | 790-821 MHz | |||
| Power supply: AC220V, or 110v. | ||||
| Total Output Power: 400Watt | ||||
| Power consumption: 1200Watt | ||||
|
Weight: 28Kg Size(length × wind × high):592×395×265mm |
||||
|
Humidity: 30%-95% Running Temperature: -20℃ to +55℃ |
||||
| Jammer Module Number | 4 | |||
| Cooling System | Systematic Smart Cooling System | |||
| System Protection |
VSWR, Over-voltage Circuit, shock, temperature |
|||
| Jamming Source | Frequency Scan Technology | |||
| Antenna Type | High Gain Directional Panel Antennas or omni antenna | |||
| Jamming range: 50-600m according to signal density of mobile network | ||||
