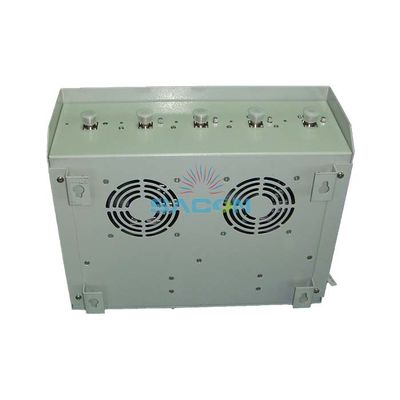

5 Bands Wireless Cell Phone Signal Scrambler 75w With Omni Glass Antennas

Product Details:
Place of Origin: China
Brand Name: Sacon
Certification: ISO9001
Model Number: SA-005M-S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Wooden Case with PE Foam
Delivery Time: Within 7 working days after received your payment
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000pcs/month
Contact Now

Detail Information

Product Name: 75w High Power Signal Jammer Advantage: Intelligent Spot Jamming
Application: Police And SWAT Teams Jamming Range: 20 - 100meters,depend On Mobile Signal Strength
Power Supply: AC220V, DC 28V Weight: 10kg
High Light:

cell phone signal blocker

,

cell phone signal scrambler

Product Description

5 Bands 75w Wireless Indoor Cell Phone Signal Jammer With Omni Glass Antennas





Description



1. It is constructed inside a special metal enclosure as a prison jammer , incorporating an efficient "smart



active" cooling system with incoming air filters, which enables the system to operate 365 days/24



Hours/7days continuously even in hot weather. Its secure design ensures that the prison inmates and



unauthorized prison personnel cannot tamper with the safe and continuous operation of the system.





2. 75w high power blocker can continuous operation, even in hot climates, with no time limit.



3. Heat sink designing combing with the fans in this wireless indoor signal jammer to make system in a



cooling status.



4. Secure design to avoid sabotage.



5. Antenna type options, directional or omni-directional antennas for option.





Features:



1. Special design feature.



2. User can adjust frequency range by adjustable button.



3. Highly Efficiency output power, long jamming radius.



4. Perfect Self Protection.



5. Over Heat protection by Thermal protector.



6. Jam up to 5 different jamming frequency.



7. Max 75 watt total RF output power.



8. Systematic Smart Cooling System.



9.  (VSWR) circuit protection to ensure system will not burn out in case of antenna short circuiting or



disconnection.



10. Can customize AM, FM, VHF, UHF, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA,



4G 700, 4G 800, LTE 2300, LTE 2600, GPS, WIFI, WIMAX, etc





Specification:





Output interface





Description



Shield band of frequency



RF output power(+1dBm)



CH1





CDMA800



851-894 MHz



43dBm



CH2





WCDMA 3G



2110-2170 MHz



42dBm



CH3





GSM900



925-960 MHz



43dBm



CH4





GSM1800/PCS 1900



1805-1880 MHz

/1930-1990 MHz





42dBm



CH5





GPS or WIFI



1570-1580 MHz or

2400-2500 MHz





42dBm



Power supply: AC220V, DC 28V





Total Output Power: 75Watt





Power consumption:300Watt





Weight: 10Kg

Size(length × wind × high):45*30*25cm





Humidity: 30%-95%

Running Temperature: -20℃ to +55℃





Jammer Module Number





5



Cooling System





Systematic Smart Cooling System



System Protection





VSWR



Jamming Source





Frequency Scan Technology



Antenna Type





Omni antennas or High Gain Directional Panel Antennas





Jumper





7D-FB superflexible coaxial cable



Jamming range: 20-100m according to signal density of mobile network







Application Area:



Prisons and other large sensitive locations such as military or governmental compounds. It can also be



used in oil and gas storage facilities and fields, security services, military units, secret services, museums,



border patrol and drug enforcement, customs, etc.





Packing List:



1. 1 x Mobile Signal Jammer Master



2. 1 x English User Manual (If you need, we will send the scan file via email, it will avoid some possible custom issue)


3. Mounting Screws



4. 5 x Omni Glass Antennas
