Product Details:
|
| Product Name: | RF Signal Jammer | Output Power: | 20w |
|---|---|---|---|
| Jamming Range: | 10-40 Meters At 75dBm (depends On The Strength Signal In Given Area) | Antenna: | 8pcs Omni Antennas |
| Size: | 427*116*60mm | Weight: | 5kg |
| High Light: | cell phone signal blocker,cell phone signal scrambler |
||

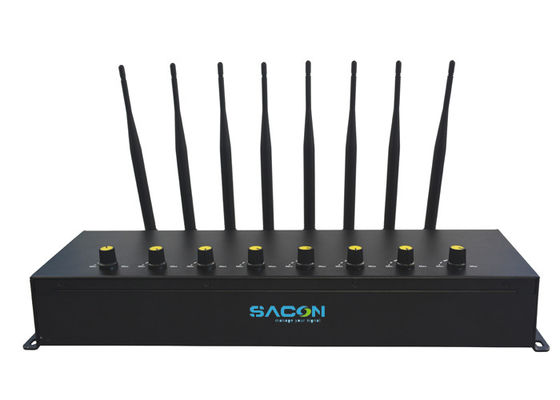

8 Bands Adjustable Desktop Cell Phone Signal Jammer Block 2G 3G 4G GPS WIFI
SA-008A-N desktop jammer has 8 antennas and each antenna is responsible for blocking a particular
frequency. It means this unit will be able to jam 8 frequencies at the same time in the radius up to 40
meters. SA-008A-N is a perfect solution for jamming different frequencies indoors and outdoors as well,
because the working temperature is allowed to be between -40°C and +50°C. Additionally to this the output
power of each antenna can be manually regulated, thus increasing or reducing the jamming range of the
frequency which is coupled with this antenna. The weight of the unit is 5.0KG which is quite a few – it can
be easily used inside your vehicle or be moved without any problems from one room (or building) to
another.
Features
l 8 High Power jamming signal generators inside.
l Omni-directional Antennas.
l Light weight design, easy to carry.
l Can block 8 frequency bands continuously and simultaneously.
l Total output power up to 20 watts.
l Inside cooling fans.
l Can work 24 hours * 7 days * 12 month.
Advantages:
* 8 antennas for almost all cell phone signals,GPS signals and wifi signals
* With adjustable button to min or max single band
* With car charger, can be used in car directly
* Good cooling system, face temperature below 45°C (working under normal temperature)
* OEM welcomed
Specifications:
| Output port | Frequency | Average output power | Output power |
| CDMA800 | 851-894MHz | 35dBm | 3W |
| GSM900 | 925-960MHz | 35dBm | 3W |
|
DCS1800/ PCS1900
|
1805-1880MHz/ 1930-1990MHz |
33dBm | 3W |
| 3G | 2110-2170MHz | 33dBm | 2W |
| 4G LTE |
790-826MHz/ 725-770MHz |
33dBm | 2W |
| 4G WIMAX |
2620-2690MHz/ 2345-2400MHz |
33dBm | 2W |
| WIFI | 2400-2500MHz | 33dBm | 2W |
| GPS | 1570-1580MHz | 33dBm | 2W |
| Total Output Power | 20 Watt | ||
| Power Supply | 50-60Hz, 100-240V AC | ||
| Weight | 5.0kg | ||
| Size | 427*116*60mm | ||
| Running temperature | -10℃ to +55℃ | ||
| Humidity | 5% - 95% | ||
| Complete accessories | Eight omni-directional antennas, Power cable, Fixed Mount | ||
| Jamming range(Radius) | 10 - 40meters , depend on local signal strength |
||
Frequencies:
|
European standard
|
American standard |
|
CDMA: 850-894MHz
|
CDMA: 850-894MHz |
|
GSM: 925-960MHz
|
GSM: 925-960MHz |
|
GSM/PCS: 1805-1990MHz
|
GSM/PCS: 1805-1990MHz |
|
3G: 2110-2170MHz
|
3G: 2110-2170MHz |
|
4GLTE: 790-826MHz
|
4GLTE: 725-770MHz |
|
4GWIMAX: 2620-2690MHz
|
4GWIMAX: 2345-2400MH |
|
GPS:1500-1600MHz
|
GPS:1500-1600MHz |
|
WIFI:2400-2500MHz
|
WIFI:2400-2500MHz |
Installation instructions:
This product is available direct screw fixed to the wall or ceiling, so please stay away from low-heat-
resistant objects.
Installation height: 1.0-2.0 meters best effect
Mounting direction: The power plug with AC220V power directly to the connection
Application Area:
1. It can be applied at meeting rooms, conference rooms, museums, galleries, theaters, concert halls,
churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more.
2. For some locations of special purpose such as hospitals, gas stations and more, Please do field
test first to make sure no interference happened to the normal operation of their equipment and instrument.

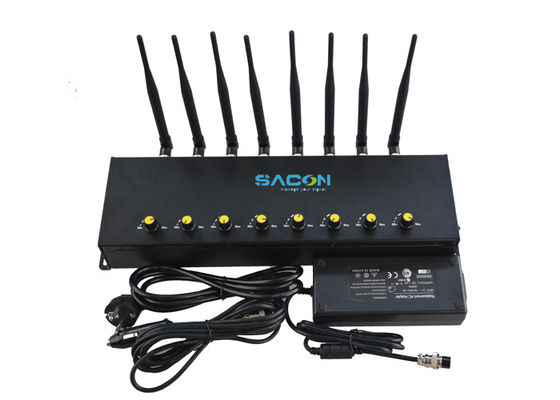

Packing List:
1. 1 x Mobile Signal Jammer Master
2. 1 x English User Manual (If you need, we will send the scan file via email, it will avoid some possible custom issue)
3. AC Power Charger (we will send correct standard power charger which according customer's shipping address)
4. Mounting Screws
5. Band Specific Antennas x 8
6. 1 x car charger
