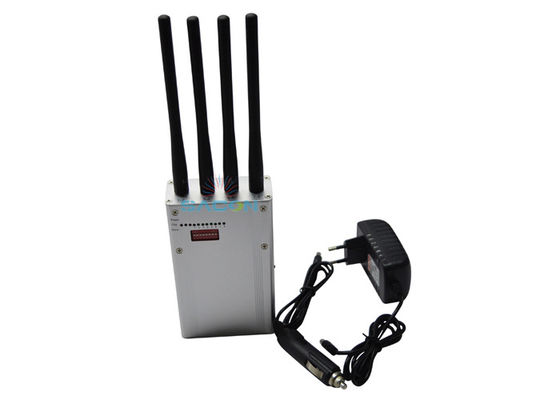

Professional Digital Portable Cell Phone Jammer 6.5 W With 4 Antennas

Product Details:
Place of Origin: China
Brand Name: Sacon
Certification: ISO9001
Model Number: SA-008P-D
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Box with PE Foam
Delivery Time: Within 3 days after receive payment
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000pcs/month
Contact Now

Detail Information

Product Name: Digital Handheld Signal Jammer Output Power: 6.5w
Jamming Range: 10-30M @ Depending On The Signal Strength Antenna: 4pcs External Omni-directional Antennas
Work Time: 1.5 Hours Weight: 950g
High Light:

wireless signal blocker

,

wifi signal scrambler

Product Description

8 Bands Digital Portable Wifi Signal Jammer With 4 Antennas Up To 30m





Description


This jammer SA-008P-D design 8 signal frequencies with 4 antennas.



Each signal frequency was controlled by DIP switch independently.



Digital noise technology jamming range is very high, 3 times jamming rangethan VCO technology jammer.



Digital Gaussian white noise is essentially a pseudo random signal, signal characteristics consistent with a



random function. Strong Anti-interference ability, there is no need high power interference radiation power,



influence and damage to the electromagnetic environment is very small, can bear long distance loss. Long-



term cases, interference stability. Mechanism causes due to interference, interference by external



environment (such as wind, rain, ice, variations on space) change is not obvious.





Basic Features:



(1) Compact Size and easy carry



(2) Multiple bands ,Individual channel on/off with selector switches



(3) Long battery life (>1.5hours)



(4) The digital signals modulated to VCO, produce RF signals, resemble noise signals in the RF spectrum,



guarantee the interference efficiency between the traditional VCO and digital interference source.



(5) jamming eight RF frequencies with four antennas.



(6) UWB frequency matching technology employed to reduce the antennas quantity and enhance the



working efficiency.



(7) Do not turn on device until antenna fixed.





There are 3 types RF Jammers.



1. VCO(voltage controlled oscillator) Technology



2. DDS (Direct Digital Synthesis)Technology



3. Pseudo random digital Gaussian white noise technology.





General speaking,



1. VCO(voltage controlled oscillator) Technology



Requirements for the jamming range is not high, extremely sensitive civilian consumption levels of low cost,



but efficiencies are not very strict scene.



2. DDS (Direct Digital Synthesis)Technology



Requirements for the jammer need wideband frequency range, and choose different frequency range, such



as 20-3000MHz NO gap jamming.



3. Pseudo random digital Gaussian white noise technology.



Requirements for the jamming range is very high, can accept high cost, national security and military, have



strict requirements for jamming range.





Specifications:





Type



Output port Frequency Output power(±1dBm)







8 Band Digital Handheld Jammer



LTE800



791-821MHz 31dBm



GSM900



925-960MHz 30dBm



GPS L2



1227.6±2MHz 24dBm



GPS L1



1575.4±2MHz 26dBm



DCS1800/PCS1900



1805-1880/1930-1990MHz

30dBm



WCDMA 3G



2110-2170MHz 29.5dBm



WiFi 2.4G



2400-2500MHz 29.5dBm



LTE2600



2620-2690MHz 29.5dBm
Can customize frequency



LTE2300



2300-2400MHz 29.5dBm



CDMA800



851-894MHz 31dBm



LTE700



725-770MHz 31dBm



Power supply: 50 to 60Hz, AC 100 to 240V





With AC adapter (DC12-24V), Built-in Battery 4300mAh





Total Output power: 6.5Watt





Working time: 1.5 hours





Recharging Time of Battery: 3 hours with 12V/2A adapter





10-30M @ depending on the Signal strength





Weight: 950g
Dimension: 90x38x156mm and not include antennas

Packing Dimension: 70x210x240mm





4pcs External Omni-directional Antennas





Running temperature: -10'C to +55'C







Applications:



Border control units, checkpoint personnel, Meeting rooms, Hospitals,



Banks, Churches, Conference Rooms, etc
