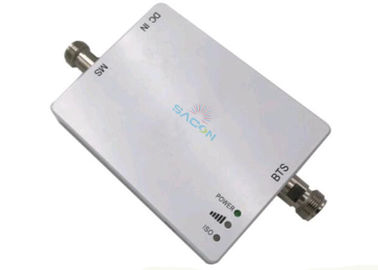

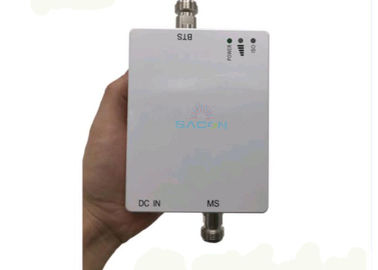

N Female Connector Mobile Phone Signal Booster 23dBm CDMA 800Mhz ALC Function Design

N Female Connector Mobile Phone Signal Booster 23dBm CDMA 800Mhz ALC Function Design

    • N Female Connector Mobile Phone Signal Booster 23dBm CDMA 800Mhz ALC Function Design
    • N Female Connector Mobile Phone Signal Booster 23dBm CDMA 800Mhz ALC Function Design
  • N Female Connector Mobile Phone Signal Booster 23dBm CDMA 800Mhz ALC Function Design

    Product Details:

    Place of Origin: China
    Brand Name: Sacon
    Certification: ISO9001, CE
    Model Number: SA-23S-CDMA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: Carton with PE Foam
    Delivery Time: 3 working days after receive payment
    Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 10000pcs/month
    Contact Now
    Detailed Product Description
    Product Name: CDMA 800Mhz Signal Booster Frequency: CDMA 800Mhz Wide Band
    RF Connector: N-Female Power Supply: AC100-240V,DC9V/3A
    Size: 204mm×128mm×27mm Weight: 41.5kg

    South America 23dBm Mobile Signal Amplifier CDMA 800Mhz ALC Function Design





    Descriptions:



    A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals. The repeater device features easy installation & operation, and no interference. It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use. This GSM 850Mhz signal repeater SA-23S-CDMA can cover max 1000 m2, it is South America standard.





    Features:


    1. Cost effective solution for weak signal zones, reduce drop/off calls.
    2. Compact size, low power consumption, easy installation, great cover.

    Expansion and extention of the signal of base station.
    Optimization of the quality of the signal and source
    3. Cover about max 1000m² without block or obstruct.
    4. High linear design, ALC function design, low interference to BTS.

    5. Support any cellular devices (voice & data & video)
    6. Wide band signal booster, or customize selective band booster.

    Antenna isolation testing,Prevent the oscillation





    Specifications



    Frequency Range Uplink         Downlink
    CDMA 800Mhz 824 - 849MHz 869- 894MHz
    Max. Gain 60 - 70dB 65 - 75dB
    Max. Output Power 14 - 20dBm 17 - 24dBm
    Band width Wide Band
    Manual Gain Control 31dB / 1dB Step
    Automatic Gain Control >20dB
    Ripple in-band ≤ 6dB
    Return loss ≤ -10dB
    Noise Figure ≤ 6dB
    Spurious Emission
    &Intermodulation
    9KHz~1GHz ≤ -36dBm
    1~12.75GHz ≤ -30dBm
    WCDMA Spurious Emission Mask Meet 3GPP TS 25.143 ( V 6.2.0 )
    Modulation Accuracy ≤ 12.5%
    Peak Code Domain Error ≤ -35dB@Spreading Factor 256
    Time Delay ≤ 1.5 μs
    Frequency stability ≤ 0.01ppm
    MTBF > 50000 hours
    Power Supply AC100-240V,DC9V/3A
    Power LED Power indicator
    ISO LED Red Autoexcitation or High Power
    Green Standard
    AGC LED Off Low Power or No power
    Green Standard
    Red Full Signal, ALC On
    Mechanical Specification
    RF Connector N-Female
    Impedance 50 ohm
    Humidity < 90%
    Operating Temperature -10°C~55°C
    Environment Conditions IP40
    Size 204mm×128mm×27mm
    Weight 1.5 Kg





    Application:


    To expand signal coverage of fill signal blind area where signal is weak or unavailable.
    Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, etc.





    Recommended Accessories:


    1)Donor antenna: Log Periodic Antenna (9dBi,806-960/1710-2700MHz)
    2)Service antenna: Omni Ceiling Antenna (3dBi,806-960/1710-2700MHz)
    3)5D-FB coaxial cable with connecter (Cable length optional)


    High Gain 27dBm Triband Mobile Signal Booster with AGC/Alc





    Standard Package:


    1) AC 90-264V,DC 6V/3A power supply adapter 1PCS
    2) AC power cord (EU/US/UK/SA/China standard, etc) 1PCS
    3) Installation kit 1PCS
    4) User manual 1PCS

    5) CDMA 850Mhz mobile signal booster 1PCS
