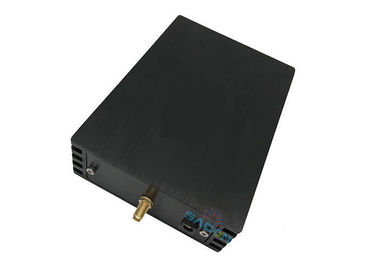

Indoor Tetra Wide Band Cellular Signal Boosters Repeatersr 380Mhz For Any Cellular Devices

Indoor Tetra Wide Band Cellular Signal Boosters Repeatersr 380Mhz For Any Cellular Devices

    • Indoor Tetra Wide Band Cellular Signal Boosters Repeatersr 380Mhz For Any Cellular Devices
    • Indoor Tetra Wide Band Cellular Signal Boosters Repeatersr 380Mhz For Any Cellular Devices
  • Indoor Tetra Wide Band Cellular Signal Boosters Repeatersr 380Mhz For Any Cellular Devices

    Product Details:

    Place of Origin: China
    Brand Name: Sacon
    Certification: ISO9001, CE
    Model Number: SA-20-Tetra

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: Carton with PE Foam
    Delivery Time: 10 Working Days After Received Payment
    Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 10000pcs/month
    Contact Now
    Detailed Product Description
    Product Name: Tetra Repeater Frequency: 380 - 385MHz
    ManuaGain Control: 15dB / 1dB Step Output Power: 20dBm
    Gain: 70dB Weight: 1kg

    Indoor Tetra Wide Band Mobile Signal Repeater 380Mhz For Any Cellular Devices





    Description:



    Sacon has one of the most experienced TETRA engineering and design capabilities in the industry and are regularly called upon by network operators, public safety systems integrators, base station manufacturers and public safety authorities to help solve a TETRA coverage issue. This Tetra 380Mhz repeater SA-20-Tetra can cover max 1500 m2, it is 70dB high gain.





    Features:



    1. Cost effective solution for weak signal zones,
    2. Compact size, low power consumption, easy installation, great cover.

    Expansion and extention of the signal of base station.

    Optimization of the quality of the signal and source
    3. Cover about 500~1500 m² without block or obstruct.
    4. High linear design, ALC function design, low interference to BTS.
    5. Support any cellular devices (voice & data & video)
    6. Wide band signal booster, or customize selective band booster.





    Specification:



    Frequency Range Uplink

    Downlink



    Tetra 400 380 - 385MHz

    390 - 395MHz



    Max. Gain 65dB

    70dB



    Max. Output Power 17dBm

    20dBm



    Band width

    Wide Band



    Manual Gain Control

    15dB / 1dB Step



    Automatic Gain Control

    >25dB



    Ripple in-band

    ≤ 6dB



    Return loss

    ≤ -10dB



    Noise Figure

    ≤ 6dB



    Spurious Emission 9KHz~1GHz

    ≤ -36dBm



    1~12.75GHz

    ≤ -30dBm



    Third-Order Intermodulation

    ≤ -40dBc



    Time Delay

    ≤ 1.5 μs



    Frequency stability

    ≤ 0.01ppm



    MTBF

    > 50000 hours



    Power Supply

    AC100-240V



    Power LED

    Power indicator



    Alarm LED Green

    Standard



    Red

    Self-oscillation or High Power



    Mechanical Specification



    RF Connector

    N-Female



    Switch

    Power Switch



    Cooling

    Heatsink Convection cooling



    Impedance

    50 ohm



    Humidity

    < 90%



    Operating Temperature

    -20°C ~ +55°C



    Environment Conditions

    IP40



    Size

    360mm*265mm*100mm



    Weight

    1Kg







    Application:


    To expand signal coverage of fill signal blind area where signal is weak or unavailable.

    Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, etc.





    Recommended Accessories:


    1)Donor antenna: Log Periodic Antenna (9dBi,806-960/1710-2700MHz)
    2)Service antenna: Omni Ceiling Antenna (3dBi,806-960/1710-2700MHz)
    3)5D-FB coaxial cable with connecter (Cable length optional)


    High Gain 27dBm Triband Mobile Signal Booster with AGC/Alc





    Standard Package:


    1) AC90-264V, power supply adapter 1PCS
    2) AC power cord (EU/US/UK/SA/China standard, etc) 1PCS
    3) Installation kit 1PCS
    4) User manual 1PCS

    5) Tetra Repeater 1PCS


    Indoor Tetra Wide Band Cellular Signal Boosters Repeatersr 380Mhz For Any Cellular Devices
