Product Details:
|
| Product Name: | Backpack Signal Jammer | Output Power: | 230w |
|---|---|---|---|
| Jamming Radius: | 50-150 Meters@－75dBm | Power Supply: | AC Adapter (AC220V/110V-DC27V Or 27V/18Amp) |
| Battery: | 1-2 Hours Working | Weight: | 14kgs |
| High Light: | 5G Wifi Lojack Manpack Jammer,150m Manpack Jammer,Manpack Mobile Phone Signal Jammer |
||
8 channels 230w high power all cell phones 5g wifi lojack 150m manpack mobile phone signal jammer
Descriptions:

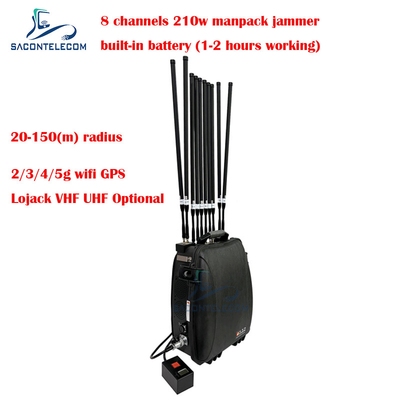

This backpack powerful signal jammer SA-MSJ08 can not only block cell phone signals, also can be done for anti drone signals. Support 8 bands frequencies 2g 3g 4g 5g GPS WiFi Lojack VHF UHF 315 433 868 optional. This manpack signal jammer with 230w high power, jamming radius is up to 150m long distance. Built-in battery inside, it can be working about 1-2 hours after full charge.
Features:
1. 8 bands 230w high power;
2. Up to 150m long distance;
3. Built-in battery, 1-2 hours working;
4. 100% Safe VSWR over protection (Isolator) for each module;
5. OEM and ODM is available;
6. AC adapter (AC220V/110V-DC27V or 27V/18Amp).
Specifications:
| SA-MSJ08-A | SA-MSJ08-B | SA-MSJ08-C | SA-MSJ08-D |
|
920-960MHz: 30W GSM900 |
920-960MHz: 30W GSM900 |
850-895MHz 30W CDMA |
850-895MHz 30W CDMA |
|
1800-1920MHz 30W GSM 1800 |
1800-1920MHz 30W GSM 1800 |
1920-1990MH 30W
|
1920-1990MH 30W
|
|
2100-2170MHz 30 W 3G UMTS |
2100-2170MHz 30 W 3G UMTS |
2100-2170MHz 30W 3G UMTS |
2100-2170MHz 30W 3G UMTS |
|
2570-2690MHz:25W 4G LTE High |
2570-2690MHz:25W 4G LTE High |
700-805MHz:30W 4G LTE Low |
700-805MHz:30W 4G LTE Low |
|
758-821MHz:30W 4G LTE Low |
758-821MHz:30W 4G LTE Low |
2500-2700MHz:25W 4G LTE High |
2500-2700MHz:25W 4G LTE High |
|
2300-2500MHz:25W 4G LTE + WiFi 11.b&g |
2300-2500MHz:25W 4G LTE + WiFi 11.b&g |
2300-2500MHz:25W 4G LTE + WiFi 11.b&g |
2300-2500MHz:25W 4G LTE + WiFi 11.b&g |
|
1420-1520MHz:30W 4G LTE |
3400-3800MHz:10W 5G |
610-655MHz 30W 5G |
610-655MHz 30W 5G |
|
3400-3800MHz:10W 5G |
1570-1620MHz 30W GPS L1 |
3600-3800MHz 10W 5G |
1570-1620MHz 30W GPS L1 |
| Total : 210 W | Total : 210 W | Total : 210 W | Total : 230 W |
|
Option: GPS L2 L3 L4 L5: 30W, VHF 130-200MHz: 30W, 300-400MHz: 30W, UHF 400-500MHz: 40W, LoJack 173MHz: 40W, |
|||
| 100% Safe VSWR over protection (Isolator) for each modular | |||
| Power supply: | AC adapter (AC220V/110V-DC27V or 27V/18Amp) | ||
| Jamming Range: | 50-150 meters@－75dBm | ||
| Battery Operating Time | 1- 2 Hours (more option about battery working time) | ||
| Dimension:490 x 370 x 190 mm (H × W × D) | |||
| Weight:14 Kg (approximately) just main unit not included antenna & all accessories | |||
Packing Lists:
1pcs backpack phone signal jammer
8pcs omni antennas
1pcs power adapter
