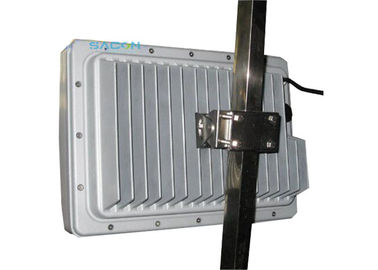

IP66 40w Power Radio Frequency Jamming Devices 6dBi Gain Antenna , 5% - 95% Humidity

IP66 40w Power Radio Frequency Jamming Devices 6dBi Gain Antenna , 5% - 95% Humidity

Product Details:

Place of Origin: China
Brand Name: Sacon
Certification: ISO9001
Model Number: SA-008V-I

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Carton With PE Foam
Delivery Time: Within 10 working days after received your payment
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Product Name: Waterproof Vehicle Mounted Jammer Waterproof Level: IP66
Storage Temp: -40 To 70ºC Output Power: 40w
Jamming Range: 5-100m Depending On The Environment Signal Strength Weight: 7kg

8 Bands Waterproof Vehicle Mounted Jammer 40w Power With Built-In Antennas





Descriptions:



This jammer has passed the strict inspection and gotten the certification from The Ministry of Public



Security Safety and Police Electronic Product Quality Inspection Center, Electronic Products Quality Control



Center, and The Electromagnetic Leakage Transmission Safety Protection Product Testing Center.





Features:



1. Easy operation, plug in and play


2. Built-in Antenna design, easy installation


3. High Efficiency output power, long jamming distance


4. Effectively making subsections, no interception to base station


5. Waterproof Jammer, proper for outdoor use


6. Ethernet Remote Monitoring available (Optional)


7. Channel Output power adjustable (Optional)


8. Working Channel selectable from 1 to 8 channels with different RF Output Power




Specifications:



Jamming frequency bands 8 Bands Selectable of VHF, UHF, GSM, CDMA, DCS, PCS, 3G, 4G, WIFI, GPS, etc
Total RF output power Up to 40W
Internal Modulation Analog
Effective jamming range 5-100m depending on the environment signal strength
Power supply 220VAC/110VAC
Continuous working hours Long time
Power Consumption 90W
Remote Control Ethernet Control by Remote Monitoring Software (Optional)
Remote Control Interface RJ45 (Optional)
Antenna type Built-in Directional Antenna
Antenna Gain 6dBi
Proof Level IP65
Dimensions 400× 288× 155mm
Net Weight 7kg
Operating Temp -20º C - +50º C
Humidity 5% - 95%



Customized Isolating Signal Bandwidth

VHF 135-175MHz
UHF 435-475MHz
RF Radio 315MHz
RF Radio 433MHz
CDMA 851-894MHz
GSM 925-960MHz
DCS 1805-1880MHz
PCS 1930-1990MHz
3G 2110-2185MHz
4G (LTE) 725-785MHZ
4G (Wimax) 2300-2410MHZ
Lojack 167-175MHZ
GPSL1/Glonass 1575.42MHz
GPSL2/Glonass 1227.42MHz
Wireless Camera 1.2G 1100-1200MHz
Wireless Camera 2.4G 2400-2483MHz
Wi-Fi/Bluetooth 2.4G
WI-FI, 5G





Applications:



Prisons and other large sensitive locations such as military or governmental compounds. It can also be



used in oil and gas storage facilities and fields, security services, military units, secret services, museums,



border patrol and drug enforcement, customs, etc.





Accessories of the Cell Phone Signal Jammer


1. 1 x English User Manual (If you need, we will send the scan file via email, it will avoid some possible

     custom issue)


2. AC Power Charger (we will send correct standard power charger which according customer's shipping         address)


3. Mounting Screws
