Product Details:
|
Product Name: | GSM + DCS Dual Band Signal Booster | Frequency System: | GSM900MHz + DCS1800MHz |
---|---|---|---|
Power Supply: | AC100~240V, 50/ 60Hz DC12V 2A | Output Power: | 20dBm |
Size: | 195mm * 180mm * 20mm | Weight: | 2kg |
High Light: | mobile phone signal repeater,cell phone booster repeater |

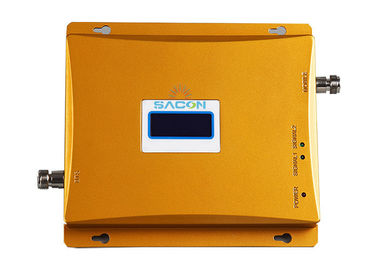

Yellow Dual Band Mobile Signal Repeater For GSM 900MHz And DCS 1800MHz Bands
Descriptions:
A mobile phone signal repeater provides the ultimate solution in any area where cellular communications
can not work well due to leak of signals. The repeater device features easy installation & operation, build-
in indoor antenna and no interference. It could also improve indoor electromagnetism environments,
protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for
house, home, office use.
Introduction To Mobile Phone Signal Repeater
|
1. Enhance Mobile Phone Signal Strength |
2. Improve Communication Quality |
3. Reduce Cellphone Radiation |
4. Protract Cellular Battery Life |
5. Economic Building Cost |
6. Easy Operation |
7. Easy Installation |
8. Build-in Power Supply |
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
Specifications:
Model No | SA-20Y-GD | ||
Parameter data | Uplink | Downlink | |
Frequency Range | GSM+DCS | 890~915/1710~1785 MHz | 935~960/1805~1880 MHz |
Output Power | 15 ±2dBm | 20±2dBm | |
Gain | 60 ±2 dB | 65±2dB | |
Bandwidth | 25M+75M | ||
Ripple in Band | GSM≤5dB,DCS≤6dB | ||
Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
1GHz~12.75GHz | ≤ -30 dBm | ||
Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | |
1GHz~12.75GHz | ≤ -30 dBm | ||
VSWR | ≤3 | ||
MTBF | 50000 hours | ||
Power Supply | AC100~240V, 50/ 60Hz DC12V 2A | ||
Power Comsumption | < 36W | ||
Impedance | 50 ohm | ||
Mechanical Specification | |||
RF Connector | N-Female | ||
Dimensions (D*W*H ) | 195*180*20mm | ||
Cooling | Heatsink Convection cooling | ||
Net weight | < 1.4Kg | ||
Packing size (D*W*H ) | 250*240*65mm | ||
Gross weight | < 1.8Kg | ||
Installation Type | Wall Installation | ||
Environment Conditions | IP40 | ||
Humidity | < 90% | ||
Operating Temperature | -10C ~ 55C |
