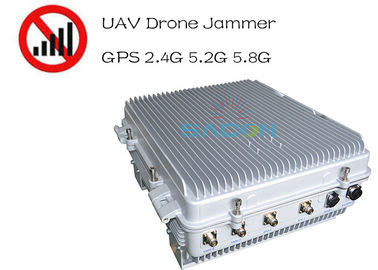

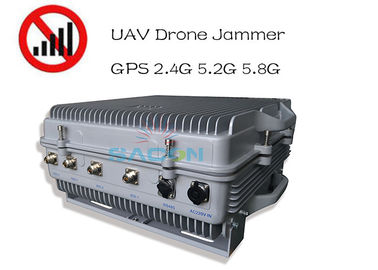

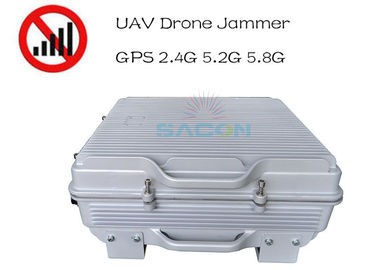

Waterproof IP64 High Power 385w Drone Signal Jammer 1.5km Long Distance GPS 2.4G 5.8G

Waterproof IP64 High Power 385w Drone Signal Jammer 1.5km Long Distance GPS 2.4G 5.8G
large.img.alt
Waterproof IP64 High Power 385w Drone Signal Jammer 1.5km Long Distance GPS 2.4G 5.8G Waterproof IP64 High Power 385w Drone Signal Jammer 1.5km Long Distance GPS 2.4G 5.8G Waterproof IP64 High Power 385w Drone Signal Jammer 1.5km Long Distance GPS 2.4G 5.8G Waterproof IP64 High Power 385w Drone Signal Jammer 1.5km Long Distance GPS 2.4G 5.8G

Large Image :  Waterproof IP64 High Power 385w Drone Signal Jammer 1.5km Long Distance GPS 2.4G 5.8G

Product Details:
Place of Origin: China
Brand Name: Sacon
Certification: CE, ISO9001
Model Number: SA-WDJ04
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: negotiate
Packaging Details: Neutral Packing Carton Box
Delivery Time: 8 working days after payment
Payment Terms: L/C, Western Union, T/T, MoneyGram
Supply Ability: 1000pcs/month

Waterproof IP64 High Power 385w Drone Signal Jammer 1.5km Long Distance GPS 2.4G 5.8G

Description
Product Name: UAV Drone Jammer Output Power: 385w
Jamming Range: Up To 1.5KM Working Time: Not-stop Working
Size: 490 X400x185mm(not Include Antenna) Weight: 45kgs
High Light:

1.5km Drone Frequency Blocker

,

385w Drone Signal Scrambler

IP64 High Power 385w Drone Signal Jammer Waterproof For Outdoor Project Up To 1.5km

Descriptions:

The one UAV drone signal jammer SA-WDJ01 is professionalhigh power drone jammer ,it can defend 100% drones UAVs, like Phantom 4, Phantom 3 Professional, advanced, standard series, inspire series. RJ45/RS485 wireless control system be customized. used omni or directional antennas jamming UAV 360º or longer distance. The drone jammer can be used for outdoor project. It is waterproof IP64. Each band power of this drone jammer device is about 100w, the distance can up to 1.5km. This high power drone jammer works 24/7 hours non-stopped. It is used in prison, military management area, national strategic resources projects, nuclear industry facilities, airports, political regions and etc.


Feature:

1. Output power total 385w, Use High gain 5-10dbi omni antennas , shielding 800-1500m,Still depends on the strength signal in given area;
2. Each unit can jam up to 8 frequency bands simultaneously, each frequency band is separate and with adjustable power from max to off (0);
3. 100% safe VSWR over protection (isolator) for each modular;
4. Big aluminum alloy shell and cooling fans, not-stop to work;
5. IP64Design for outdoor installation, Secure design to avoid sabotage;
6. Option RJ45/RS485 wireless control system.


OEM Customized Service
Frequency Range can be customized: Mobile phone GSM2G 3G 4GLTE and more
Silkscreen OEM service can be offered.



Basic Specifications

Jam Signal Type:Drones UAVs RC2.4G/5.8GHz+GPSL1Signals
Output Power:Total 385W,35-100W each band
Jam Radius:up to 800-1500meters(GPS signal for1500m)
Power Supply:AC110or 220V to DC27V
Cooling System:High efficiency aluminum alloy radiator+ 4X cooling fans
Working Time:Not-stop Working
Product Size:490 x400x185mm(not Include Antenna)
Product Weight: appr.45kg ( for omni antennas)
Package Contents:Jammer Host x 1, Adapter x 1, antenna x6, 2 metersCable x6


Specifications:


Key specifications:SA-WDJ01
Output PortFrequency rangeAverage out-putting power
RC2.4G2400-2500MHz50dbm /100W
RC5.8G5725-5850MHz45.5dbm /35W
GPSL1 and Glonass L11560-1620MHz47dbm /50W
GPSL2+L51170-1280MHz47dbm /50W
Power supply: AC adapter 50 to 60Hz, (AC110 or 240V to DC27V)
Dimension: (width, height, length) 490 x400x185mmmm
Package Size: 65*55*35cm N.W: 29kg G.W:32kg (Not include antennas)
Total Power:385W Shielding Radius: (800-1500) meters@Still depends on the distance of drone and remote control
Warranty: One year from delivery date.

Omni Directional Antenna:

Dimension: (length, width, height,):120x 3.8 cm

N.W:1Kg Gains:5-10dbi VSWR>1.5 H:360º




Application


1) Protection of prohibited areas, such as: prison, military management area, national strategic resources projects, nuclear industry facilities, airports, political regions and etc;

2) To prevent the leakage of information on the scene, such as: major criminal cases on-site, urban management law enforcement scene, an important security venues, political followers protection, large-scale performance rehearsal, archaeological excavation site, large groups event site;

3) To combat the use of unmanned aerial vehicles as a carrier of illegal activities, such as: transport / drug trafficking, smuggling, illegal goods or information transmission.
