Product Details:
|
Product Name: | All Major Frequencies Cell Phone Jammer | Application: | Indoor |
---|---|---|---|
Channels: | 16 | Output Power: | 38w |
Jamming Range: | Up To 40m | Weight: | 7.5kg |
Highlight: | cell phone signal blocker,cell phone signal scrambler |

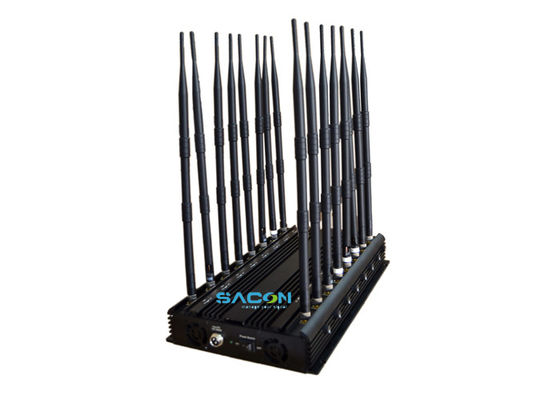

All Major Frequencies Cell Phone Signal Jammer Used In Car Directly
The jamming radius of all 16 bands can be manually adjusted. In this way you can select the frequencies
you would like to jam at particular time, while not jamming other frequencies.
SA-016B can be used in USA, Canada, South America, Europe, Asia, Australia and Africa - in other words
it will fully disable all major frequencies worldwide.
This 16 bands cell phone jammer block GSM, 3G, 4G, VHF, UHF, Wi-Fi, GPS, L1, L2, L5, LOJACK, 433,
315MHz all-in-one mobile phone jammer is power full design to blocks all the signals in one device, it
great for school classroom avoid exam cheat and oil/gas station keep in secure.
Notice: you can select 16 of above frequency bands as your needed, in default we will send by country
different.
First jammer ever which can completely jam all frequencies in the 130-2700MHz range. Just have a look at
the frequencies that this signal jammer can fully disable:
130-200MHz: VHF, Lojack 173MHz, Walkie Talkie
200-300MHz: VHF, Lojack 173MHz, Walkie Talkie
300-400MHz: 315MHz: Car Remote
400-500MHz: UHF 433MHz Car Remote
700-800MHz: 4G LTE America USA
800-900MHz: 4G LTE Low, CDMA 850
900-1000MHz: GSM 900
1050-1200MHz: GPS L5 1176.45 MHz
1200-1400MHz: GPS L2 1227.60 MHz, GPS L3 +L4 1381.05 MHz
1500-1620MHz: GPS L1 1575MHz, SAT Satellite Phones
1700-1800MHz: 4G LTE America
1800-2000MHz: DCS, PCS, GSM 1800, CDMA 1900
2100-2200MHz: 3G UMTS
2300-2400MHz: 4G LTE
2400-2500MHz: WiFi 2.4GHz, 11.b, g, Buletooth
2500-2700MHz: 4G LTE High
Advantages:
1,All in one with 16 bands frequency
2,Good cooling system with 5 cooling fans inside
3,Low noise
4,Can adjust or turn off any single band without influencing the other bands operation
5,Work non-stopped
6,Stable capability
7,Could be used in car directly, with car charger
8,Total output power: 48W
9,Full set weight: 7.5kg
10,Power supply: AC 100-240V and 12V cable to car battery (300mm Long)
11,Dimension: 395mm x 238mm x 60mm
Specifications:
CDMA 800
|
851 - 894MHz |
GSM 900
|
925 - 960MHz |
DCS & PCS
|
1,805 - 1,990MHz |
3G
|
2,110 - 2,170MHz |
VHF
|
135 - 174MHz |
UHF
|
400 - 470MHz |
4G1 LTE
|
700 - 800MHz Or 790 - 862MHz |
4G Wimax
|
2500 - 2690MHz |
WIFI
|
2400 - 2483MHz |
GPS
|
1570 - 1580MHZ |
315
|
315MHz |
433
|
433MHz |
LOJACK
|
167 - 175MHz |
4G 1700
|
2,110 - 2,155MHz |
GPS L2 L5
|
1,170-1,280MHz |
GPS L3 L4
|
1,370-1,390MHz |
Option
|
868MHz/4G2300/ WIFI5.8G/3.6G/ UHF200-400MHz/ Wireless camera1000-1390MHz |
Total output power
|
38W |
Jamming range
|
up to 40m, the jamming radius still depends on the strength signal in given area |
Antennas
|
16pcs External Omni-directional antennas all the TX frequency covered down link only |
Power supply
|
AC 100-240V and 12V cable to car battery (300mm Long) |
Dimension
|
395mm x 238mm x 60mm |
Full set weight
|
7.5kg |
Application Area:
1) it can be applied at meeting rooms, conference rooms, museums, galleries, theaters, concert halls,
churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more
2) For some locations of special purpose such as hospitals, gas stations and more, Please do field test first
to make sure no interference happened to them
Package Item:
1. 1 x Mobile Signal Jammer Master
2. 1 x English User Manual (If you need, we will send the scan file via email, it will avoid some possible custom issue)
3. AC Power Charger (we will send correct standard power charger which according customer's shipping address)
4. Mounting Screws
5. Band Specific Antennas x 16
6. 1 x car charger
