Product Details:
|
| Product Name: | Camera WIFI Signal Blocker | Frequency: | 135MHz - 5800MHz |
|---|---|---|---|
| Operating Temp: | -10 To 55℃ | Jamming Range: | 5 - 50meters Depend On Mobile Signal Strength |
| Weight: | 6kg | Size: | 330mm X 238mm X 60mm |
| High Light: | cell phone signal blocker,cell phone signal scrambler |
||

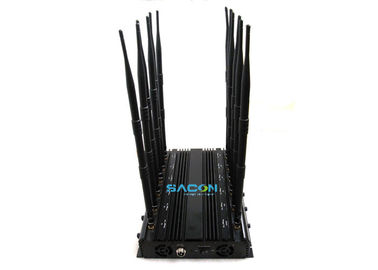

Up To 50m Range Walkie Talkie Cell Phone Signal Jammer 30w High Power 12 Bands
Descriptions:
SA-012B powerful desktop walkie talkie jammer is designed to work with wide range of frequency bands
in huge 50 meters radius around it. It can effectively shield you against any kind of wiretapping,
eavesdropping, private data sharing and illegal acquiring, or even location tracking with the help of mobile
phone tower location triangulation. So it is hard to underestimate the usefulness of this device.
SA-012B is used in huge facilities due to its wide working range. Considering the fact that this product
works with so many frequencies (cell phones, wireless internet, satellite systems, etc.), its implementation is
incredibly wide too. When you use this device, you will be reliably shielded against all wireless threats
except those related to low frequency bands and this protection would have really wide working range
suitable for huge facilities.
Specification:
| Output port | Frequency | Average output power | Output power |
| CDMA800 | 851-894MHz | 35dBm | 3W |
| GSM900 | 925-960MHz | 35dBm | 3W |
|
DCS1800/ PCS1900
|
1805-1880MHz/ 1930-1990MHz |
33dBm | 2W |
| 3G | 2110-2170MHz | 33dBm | 2W |
| GPS | 1570-1580MHz | 32dBm | 2W |
| WIFI | 2400-2500MHz | 32dBm | 2W |
| 4G LTE 800 | 791-821MHz | 35dBm | 3W |
| 4G LTE700(Optional) | 725-770MHz | 35dBm | 3W |
| 4G LTE2600 | 2620-2690MHz | 33dBm | 2W |
| 4G LTE 2300(Optional) | 2300-2400MHz | 33dBm | 2W |
| VHF | 135-174MHz | 33dBm | 2W |
| UHF | 400-470MHz | 33dBm | 2W |
| LOJACK | 170MHz - 175MHz | 33dBm | 2W |
| RF | 433MHz | 33dBm | 2W |
| RF(Optional) | 315MHz | 33dBm | 2W |
| Total Output Power | 25-30 Watt | ||
| Power Supply | AC110-240V,DC 12V | ||
| Power consumption | 90 Watt | ||
| Weight | 6.0kg | ||
| Size | 330*238*60mm | ||
| Running temperature | -10℃ to +55℃ | ||
| Humidity | 5% - 95% | ||
| Complete accessories | Twelve omni-directional antennas, Power cable, Fixed Mount | ||
| Jamming range(Radius) | 5 - 50meters , depend on local signal strength | ||
Features:
1. Four Cooling fans design make the device work in a good cooling environment.
2. The output power of each band can be adjusted.
3. Working 24 hours continuously.
4. With the current of car and car adaptor design,make the jammer can be used on the vehicle directly.
5. Stable capability, cost-effective choice
6. Total output power: 30W
7. 12 channels with different frequency range,or customize other cellular standard in the world.
Such as Walkie Talkie,450MHz,GPRS,iDEN,GPS, Galileo,Compass,Glonass,UMTS,WiFi,AWS,LTE 4G.
Application Area:
1. It can be applied at meeting rooms, conference rooms, museums, galleries, theaters, concert halls,
churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more.
2. For some locations of special purpose such as hospitals, gas stations and more, Please do field
test first to make sure no interference happened to the normal operation of their equipment and
instrument.
Notice:
1. Before linking all the antenna, power supply shall not be switched on at first. Non taking off antenna when
the mainframe is in the working condition.
2. The jammer shall be installed in the position with good ventilation. And large-scale things shall be
avoided to ensure to the shielding effect.
3. When use the jammer outdoors, preventing water shall be taken into consideration.
4. Antenna shall be used vertical to the ground.
5. If you used in car,Please make sure the car output adapter is DC12V, this machine only can be working
on DC12V.
Package Item:
1. 1 x Mobile Signal Jammer Master
2. 1 x English User Manual (If you need, we will send the scan file via email, it will avoid some possible custom issue)
3. AC Power Charger (we will send correct standard power charger which according customer's shipping address)
4. Mounting Screws
5. Band Specific Antennas x 12
6. 1 x car charger
