Product Details:
|
| Product Name: | Mobile Phone Jammer | Application: | Mosques, Museums |
|---|---|---|---|
| Antenna: | 14pcs Omni-directional Antennas | Operating Temp: | -10℃ To +55℃ |
| Power Supply: | AC 110V~220V,DC12V | Jamming Range: | Up To 50meters Depend On Mobile Signal Strength |
| High Light: | gps tracking device jammer,gps jamming device |
||

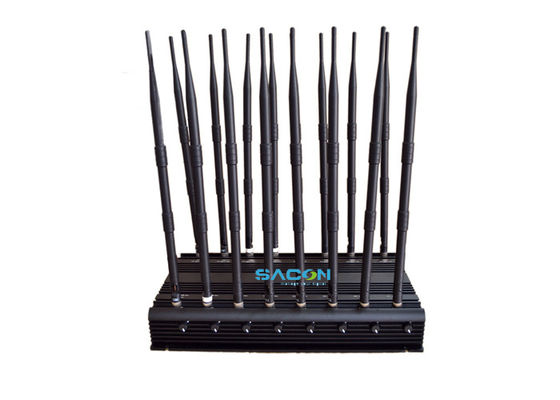

70m Long Range Cell Phone GPS Jammer 16 Antennas 5 Cooling Fans Inside
Introduction:
This signal blocker can not only jam 2G 3G 4G signal , but also GPS signal, WIFI and LOJACK signals.
And each band can turn ON/OFF without influencing the other bands operation.
The jamming radius is 5-40 meters depending on the signal strength and location. With good cooling system with heat sink and fan inside, it can be used for 24/7 non- stop.
Moreover, it can support use while battery charging, But don’t suggest use like that always. More importantly, it also support powered by car cigarette charger, which is convenient for car users.
Features:
1. Total output power: 38W
2. Working 24 hours continuously.
3. Stable capability, cost-effective choice
4.Four Cooling fans design make the device work in a good cooling environment.
5. The output power of each band can be adjusted.
6. With the current of car and car adaptor design,make the jammer can be used on the vehicle directly.
7. Sixteen channels with different frequency range,or customize other cellular standard in the world.
Such as Walkie Talkie,450MHz,GPRS,iDEN,GPS, Galileo,Compass,Glonass,UMTS,WiFi,AWS,LTE 4G.
Specifications:
| Output port | Frequency | Average out-putting power | Channel out-putting power |
| CDMA | 851-894MHz | 35dBm | 5dBm/30KHz(min) |
| GSM | 925-960MHz | 35dBm | 5dBm/30KHz(min) |
| DCS | 1805-1880MHz | 33dBm | 2dBm/30KHz(min) |
| PCS | 1920-1990MHz | 33dBm | 2dBm/30KHz(min) |
| 3G | 2110-2170MHz | 33dBm | 2dBm/30KHz(min) |
| WIFI2.4G | 2400-2500MHz | 30dBm | 0dBm/30KHz(min) |
| GPS | 1575MHz | 32dBm | 5dBm/30KHz(min) |
| 4G LTE700/LTE800 | 725-825MHz | 34dBm | 3dBm/30KHz(min) |
| 4G WIMAX | 2500-2690 MHz | 30dBm | 0dBm/30KHz(min) |
| UHF | 400-470Mhz | 34dBm | 2dBm/30KHz(min) |
| VHF | 135-174Mhz | 34dBm | 2dBm/30KHz(min) |
| LOJACK | 173.075Mhz | 34dBm | 5dBm/30KHz(min) |
| 315 | 315Mhz | 33dBm | 5dBm/30KHz(min) |
| 433 | 433Mhz | 34dBm | 5dBm/30KHz(min) |
| 868 | 868MHz | 35dBm | 5dBm/30KHz(min) |
| GPSL2-L5 | 1170-1280MHz | 32dBm | 5dBm/30KHz(min) |
| Option | 4G2300/ WIFI5.8G/3.6G/ UHF200-400MHz/ Wireless camera1000-1390MHz.etc. | ||
| Power supply: AC adapter (AC220V-DC12V) Shielding Radius: (5-50) meters@-75dBm still depends on the strength signal in given area.The shielding radius of VHF/UHF signal should be lesser than cell phone signal. |
|||
| Dimension: (width, height, length) 238x60x395mm Net weight: 7.0kg | |||
Application Area:
1) it can be applied at meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more.
2) For some locations of special purpose such as hospitals, gas stations and more, Please do field test first to make sure no interference happened to them.
Package Item:
1. Jammer Kit *1pc
2. Omni Antenna *16pcs
3. Car Charger *1pc
4. Power Adapter *1pc
