Product Details:
|
Product Name: | 8 Antennas 3G 4G High Power Signal Blocker | Advantage: | Good Cooling System |
---|---|---|---|
Frequency: | CDMA,GSM,Dcs,PCS,3G,4G,GPS,WiFi | Application: | Examination Hall, School |
Output Power: | 20w | Jamming Range: | 10-40 Meters At 75dBm (depends On The Strength Signal In Given Area) |
High Light: | mobile phone signal blocker,mobile phone blocker jammer |

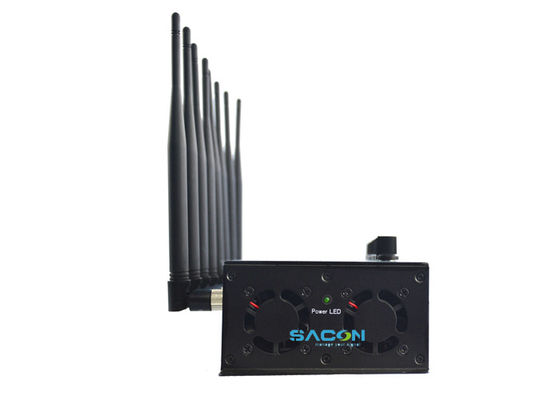

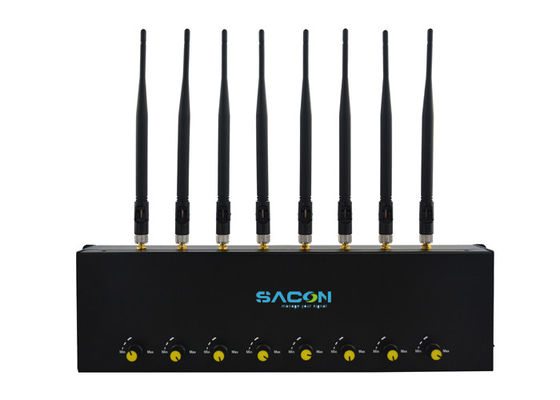

20w 8 Antennas 3G 4G High Power Signal Blocker With Adsjut Button 24 Hours Work
Looking for a signal jammer that can be widely used in the fixed places such as the conference room,
auditoriums, law court, library, exam room, school, cinema, theater, and hospital etc and can block the
signals of WiFi Bluetooth 2G 3G 4G at the same time?
Then this Multifunctional 2G 3G 4G Cell Phone Signal Jammer WiFi Blocker that you are viewing
here can just meet with your requirements.
Firstly as designed with 8 antennas so that this multifunctional WiFi 4G mobile jammer can cut off the
signals of CDMA GSM DCS PCS 3G 4G WiFi and Bluetooth at the same time with up to 20 meters jamming
distance depending on the signal strength in the detailed place. And also because of that this high power
multifunctional WiFi 4G signal jammer have used the high quality cooling system with so that this WiFi
2G 3G 4G mobile phone jammer can always stay in the good working condition and easily reach the 24/7
nonstop working goal as well. because the adjust button, you can adjust the output power of each band to
choose the suitable jamming range without influencing other people
Frequencies:
European standard
|
American standard |
CDMA: 850-894MHz
|
CDMA: 850-894MHz |
GSM: 925-960MHz
|
GSM: 925-960MHz |
GSM/PCS: 1805-1990MHz
|
GSM/PCS: 1805-1990MHz |
3G: 2110-2170MHz
|
3G: 2110-2170MHz |
4GLTE: 790-826MHz
|
4GLTE: 725-770MHz |
4GWIMAX: 2620-2690MHz
|
4GWIMAX: 2345-2400MH |
GPS:1500-1600MHz
|
GPS:1500-1600MHz |
WIFI:2400-2500MHz
|
WIFI:2400-2500MHz |
Installation instructions:
This product is available direct screw fixed to the wall or ceiling, so please stay away from low-heat-
resistant objects.
Installation height: 1.0-2.0 meters best effect
Mounting direction: The power plug with AC220V power directly to the connection
Specifications:
Output port | Frequency | Average output power | Output power |
CDMA800 | 851-894MHz | 35dBm | 3W |
GSM900 | 925-960MHz | 35dBm | 3W |
DCS1800/ PCS1900
|
1805-1880MHz/ 1930-1990MHz |
33dBm | 3W |
3G | 2110-2170MHz | 33dBm | 2W |
4G LTE |
790-826MHz/ 725-770MHz |
33dBm | 2W |
4G WIMAX |
2620-2690MHz/ 2345-2400MHz |
33dBm | 2W |
WIFI | 2400-2500MHz | 33dBm | 2W |
GPS | 1570-1580MHz | 33dBm | 2W |
Total Output Power | 20 Watt | ||
Power Supply | 50-60Hz, 100-240V AC | ||
Weight | 5.0kg | ||
Size | 427*116*60mm | ||
Running temperature | -10℃ to +55℃ | ||
Humidity | 5% - 95% | ||
Complete accessories | Eight omni-directional antennas, Power cable, Fixed Mount | ||
Jamming range(Radius) | 10 - 40meters , depend on local signal strength |
Advantages:
* 8 antennas for almost all cell phone signals,GPS signals and wifi signals
* With adjustable button to min or max single band
* With car charger, can be used in car directly
* Good cooling system, face temperature below 45°C (working under normal temperature)
* OEM welcomed
Application Area:
1. It can be applied at meeting rooms, conference rooms, museums, galleries, theaters, concert halls,
churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more.
2. For some locations of special purpose such as hospitals, gas stations and more, Please do field
test first to make sure no interference happened to the normal operation of their equipment and instrument.
Packing List:
1. 1 x Mobile Signal Jammer Master
2. 1 x English User Manual (If you need, we will send the scan file via email, it will avoid some possible custom issue)
3. AC Power Charger (we will send correct standard power charger which according customer's shipping address)
4. Mounting Screws
5. Band Specific Antennas x 8
6. 1 x car charger
