Product Details:
|
| Product Name: | 75w High Power Signal Jammer | Advantage: | Intelligent Spot Jamming |
|---|---|---|---|
| Application: | Police And SWAT Teams | Jamming Range: | 20 - 100meters,depend On Mobile Signal Strength |
| Power Supply: | AC220V, DC 28V | Weight: | 10kg |
| High Light: | cell phone signal blocker,cell phone signal scrambler |
||

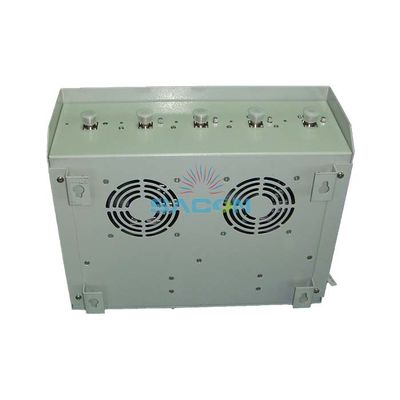

5 Bands 75w Wireless Indoor Cell Phone Signal Jammer With Omni Glass Antennas
Description
1. It is constructed inside a special metal enclosure as a prison jammer , incorporating an efficient "smart
active" cooling system with incoming air filters, which enables the system to operate 365 days/24
Hours/7days continuously even in hot weather. Its secure design ensures that the prison inmates and
unauthorized prison personnel cannot tamper with the safe and continuous operation of the system.
2. 75w high power blocker can continuous operation, even in hot climates, with no time limit.
3. Heat sink designing combing with the fans in this wireless indoor signal jammer to make system in a
cooling status.
4. Secure design to avoid sabotage.
5. Antenna type options, directional or omni-directional antennas for option.
Features:
1. Special design feature.
2. User can adjust frequency range by adjustable button.
3. Highly Efficiency output power, long jamming radius.
4. Perfect Self Protection.
5. Over Heat protection by Thermal protector.
6. Jam up to 5 different jamming frequency.
7. Max 75 watt total RF output power.
8. Systematic Smart Cooling System.
9. (VSWR) circuit protection to ensure system will not burn out in case of antenna short circuiting or
disconnection.
10. Can customize AM, FM, VHF, UHF, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA,
4G 700, 4G 800, LTE 2300, LTE 2600, GPS, WIFI, WIMAX, etc
Specification:
|
Output interface
|
Description |
Shield band of frequency |
RF output power(+1dBm) |
|
|
CH1
|
CDMA800 |
851-894 MHz |
43dBm |
|
|
CH2
|
WCDMA 3G |
2110-2170 MHz |
42dBm |
|
|
CH3
|
GSM900 |
925-960 MHz |
43dBm |
|
|
CH4
|
GSM1800/PCS 1900 |
1805-1880 MHz /1930-1990 MHz
|
42dBm |
|
|
CH5
|
GPS or WIFI |
1570-1580 MHz or 2400-2500 MHz
|
42dBm |
|
|
Power supply: AC220V, DC 28V
|
||||
|
Total Output Power: 75Watt
|
||||
|
Power consumption:300Watt
|
||||
|
Weight: 10Kg Size(length × wind × high):45*30*25cm
|
||||
|
Humidity: 30%-95% Running Temperature: -20℃ to +55℃
|
||||
|
Jammer Module Number
|
5 |
|||
|
Cooling System
|
Systematic Smart Cooling System |
|||
|
System Protection
|
VSWR |
|||
|
Jamming Source
|
Frequency Scan Technology |
|||
|
Antenna Type
|
Omni antennas or High Gain Directional Panel Antennas
|
|||
|
Jumper
|
7D-FB superflexible coaxial cable |
|||
|
Jamming range: 20-100m according to signal density of mobile network
|
||||
Application Area:
Prisons and other large sensitive locations such as military or governmental compounds. It can also be
used in oil and gas storage facilities and fields, security services, military units, secret services, museums,
border patrol and drug enforcement, customs, etc.
Packing List:
1. 1 x Mobile Signal Jammer Master
2. 1 x English User Manual (If you need, we will send the scan file via email, it will avoid some possible custom issue)
3. Mounting Screws
4. 5 x Omni Glass Antennas
