Product Details:
|
| Product Name: | 100w 3G 4G Signal Jammer | Total Output Power: | 100w |
|---|---|---|---|
| Jamming Range: | 20 - 150m Depending On Mobile Signal Strength | Work Time: | 24 Hours |
| Antenna: | 6 Antennas | Weight: | 10kg |
| High Light: | gsm gps jammer,handheld phone jammer,100w 3G 4G Signal Jammer |
||

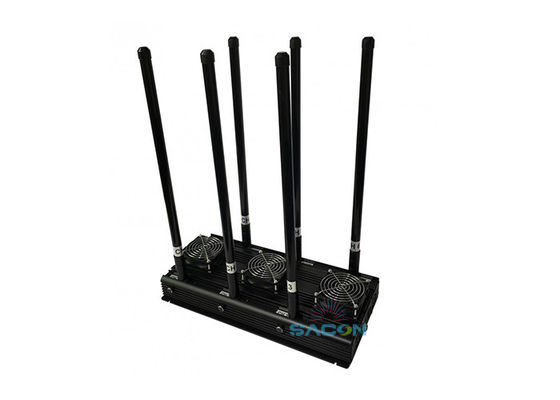

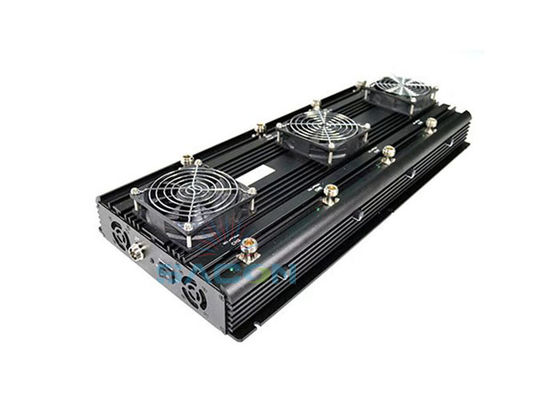

100w 6 Channels 3G 4G Signal Jammer With Long Distance Jamming Range
Ddescription:
SA-006B-M is one of the most powerful cell phone jammers which are currently presented on the market.
With 100W of output power this blocker is able to disable all GSM, 3G, CDMA, 4G, GPS, Lojack, WIFI, GPS
etc. frequencies in the radius up to 150 meters. 6 bands 100w high power 3G 4G signal jammer mainly
used for the areas where the wide radius needs to be protected against usage of mobile phones.
This high power phone blocker can be used indoors, for example to block the cell phone signal in the
churches, museums, movie theatres and other crowded places where the usage of mobile phone is
prohibited. You can also use this jammer during the important conference in a meeting room to avoid the
leakage of secure information. This unit will be irreplaceable in places where it is extremely important to
keep the silence – in classrooms during the exams, courts, hospitals, banks, recording studios etc.
Continuous operation 24/7 even during the hot/cold weather, no time limit
Fast and easy installation and operation
Can be configured to jam frequencies in any country
Secure design to avoid sabotage
The UPS battery can be used together with the unit
(VSWR) circuit protection to avoid system burn, antenna short circuiting or disconnection
Specifications:
|
Channel
|
Output port |
Frequency range |
Average out-putting power |
|
1
|
CDMA |
850-894MHz |
44dbm / 20W |
|
2
|
PCS |
1920-1990MHz |
41dbm / 10W |
|
3
|
3G |
2110-2170MHz |
41dbm / 10W |
|
4
|
4G LTE 2600 |
2500-2690 MHz |
40dbm / 10W |
|
5
|
4G LTE 700 |
700-803 MHz |
44dbm / 15W |
|
6
|
Wi-Fi 2.4G+4G2300 |
2345-2500MHz |
40dbm / 10W |
|
The below frequencies you can instead of above one to combined 6 bands
|
|||
|
Option
|
WIFI5.2G
|
5100-5500MHz |
36dbm / 4W |
|
Wi-Fi 5.8G
|
5500-5580MHz |
36dbm / 4W |
|
|
GPSL1
|
1570-1580MHz |
41dbm / 10W |
|
|
LOJACK& XM radio
|
167-175MHz |
44dbm / 20W |
|
|
VHF
|
130-174MHz |
44dbm / 20W |
|
|
UHF
|
400-470MHz |
44dbm / 20W |
|
|
4G1 LTE 850
|
790-862MHz |
44dbm / 20W |
|
|
4G1 LTE 1700
|
1710-1780MHz |
41dbm / 10W |
|
|
GSM
|
925-960MHz |
44dbm / 20W |
|
|
DCS
|
1805-1880MHz |
44dbm / 10W |
|
|
Power supply: AC adapter 50 to 60Hz, (AC110 or 240V-DC27V)
|
|||
|
Dimension: (length,width, height ) 520*230*200mm(Not include antenna)
|
|||
|
Package Size: 460 x 235 x 95mm N.W:7kg G.W:10Kg Working temperature: -30~60℃
|
|||
|
Total power: 80 -100W
|
|||
|
Warranty: one year from delivery date
|
|||
Applications
1. It can be applied at prisons, meeting rooms, conference rooms, museums, galleries, theaters, concert
halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more.
2. For some locations of special purpose such as hospitals, gas stations and more, Please do field test first
to make sure no interference happened to the normal operation of their equipment and instrument.
Package contents:
1pc high power 3g 4g signal jammer
1pc AC outer detachable power supply
6pc antenna
