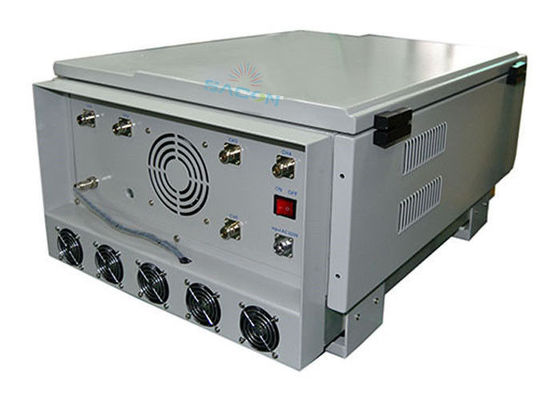

350W Output Power 1000m Range Drone Jammer for Continuous Operation in Hot Climates

High Power 6 bands vehicle mounted mobile phone jammer with huge jamming range between 500-1000 meters. Can be supplied with directional or omni-directional antennas. Designed for the protection of VIPs and groups of people from radio controlled improvised explosions by disabling the radio exploder control lines in dangerous areas and for the prevention of leakage of information through intercepting units during confidential talks.

• Each unit can simultaneously jam 6-8 frequency bands
• Continuous working even in hotter environment with no time limits
• Designed for outdoor application and easy installation
• Protection mechanism to avoid sabotage
• Accept options - Omni or directional antennas
• Selection of antennas to provide more humanized regarding the jamming range
• Addition for option: wireless RC or Ethernet PC remote control
• Each modular has 100% Safe VSWR over protection

Additional Frequency Options: The below frequencies can be substituted for the above to combine 6-8 bands:

• WIFI5.2G: 5100-5500MHz - 47dBm / 50W
• GSM: 925-960MHz - 50dBm / 100W
• PCS: 1930-1990MHz - 50dBm / 100W
• 3G: 2110-2170MHz - 50dBm / 100W
• 4G LTE 2600: 2490-2690 MHz - 50dBm / 100W
• 4G LTE 700: 725-803 MHz - 50dBm / 100W
• Wi-Fi 2.4G+4G2300: 2345-2500MHz - 50dBm / 100W
• Wi-Fi 5.8G: 5500-5580MHz - 47dBm / 50W
• WiFi3.6G: 3500-3600MHz - 47dBm / 50W
• GPSL2+L5: 1170-1280MHz - 50dBm / 100W
• LOJACK & XM radio: 167-175MHz - 50dBm / 100W
• VHF1: 130-190MHz - 50dBm / 100W
• UHF2: 190-300MHz - 50dBm / 100W
• UHF3: 300-400MHz - 50dBm / 100W
• UHF4: 400-500MHz - 50dBm / 100W
• 4G1 LTE 850: 791-821MHz - 50dBm / 100W
• 4G1 LTE 1800: 1805-1880MHz - 50dBm / 100W
• CDMA: 851-894MHz - 50dBm / 100W

General Specifications:

• Power supply: AC adapter 50 to 60Hz, (110 or 240V AC-27V DC)
• Dimensions: (L) 740 × 510 × 350mm (not including antenna)
• Package size: 90 × 70 × 50cm
• Net weight: 70kg
• Gross weight: 75kg + 20kg antennas = 95kg
• Working temperature: -30 to 60°C
• Total power: 350W
• Shielding radius: (300-1000) meters At -75dBm
• Shielding radius of VHF/UHF signal should be lesser than cell phone signal
• Warranty: one year from delivery date

• Prisons, meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more
• For special purpose locations such as hospitals and gas stations, please conduct field testing first to ensure no interference with normal equipment operation

• 1 × English User Manual (scan file available via email to avoid customs issues)
• AC Power Charger (correct standard power charger according to customer's shipping address)
• Mounting Screws
• Band Specific Antennas × 6
