Product Details:
|
| Product Name: | 90w Backpack Signal Jammer | Application: | Anti Terror Units, Military Forces, SWAT Teams |
|---|---|---|---|
| Antenna: | High Gain Omni Directional Antenna | Jamming Range: | 20 - 100meters, Depend On Signal Strength |
| Output Power: | 90w | Weight: | 15kg |
| High Light: | backpack jammer,drone frequency blocker,ISO9001 90w backpack signal jammer |
||

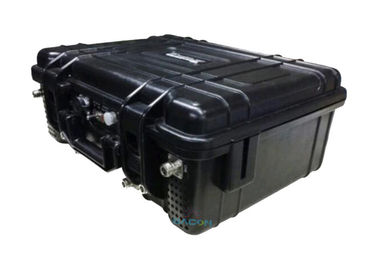

Max 90w High Power Backpack Signal Jammer 6 Channels For Military Forces
1. SA-006M-A is a state-of-the-art efficient cellular /Satellite mobile phone jammer designed for bomb
disposal security applications, like Troop marching and filed operation
2. The jammer is constructed to block continuously and simultaneously up to five frequency bands
Its smart active cooling system enables non-stopped use even in a very hard climatic and weather
condition.
3. The Backpack Jammer SA-006M-A is a portable IED Jammer or Bomb Jammer built into a backpack. It
is designed to be taken into hostile territory for defensive RF Jamming of Radio Controlled Improvised
Explosive Devices (RCIEDs) used as weapons by terrorists, insurgents, and criminals. IED Jamming
using RF Jamming technology is vital for protective forces, government officials, diplomatic
representatives, EOD teams, and Bomb Squad technicians.
Features:
1. High-power multi-band jammer, Frequency Scan technology,
2. Modular construction for easy maintenance, repair and upgrade.
3. Jamming up to 6 different jamming modules.
4. Max 90watts total RF output power.
5. AC mains or DC power.
6. Systematic Smart Cooling System.
7. The general design of the system meets military requirements.
8. Different frequency bands can be controlled independently by single switches;
9. Power Amplifiers protection design ensures the working reliability of the device
10. Can customize these frequencies AM, FM Radio, VHF, UHF, 450MHz, iDEN, CDMA, GSM, GPRS,
DCS, PCS, AWS, WCDMA, LTE 700, LTE 800, LTE 2300, LTE 2600, GPS, Galileo, Compass,
Glonass,WIFI, WIMAX, UAV, drone, etc.
Specification
| Output interface | Description | Shield band of frequency | RF output power( +1dBm) | |
| Optional | LOJACK | 168-178 MHz | 41.7dBm | |
| CH2 | WCDMA 3G | 2110-2170 MHz | 41.7dBm | |
| CH3 | GSM900 | 925-960 MHz | 41.7dBm | |
| CH4 |
GSM1800 /PCS 1900 |
1805-1880 MHz /1930-1990 MHz |
41.7dBm | |
| CH5 | WIFI, 2.4G | 2400-2485 MHz | 41.7dBm | |
| Optional | LTE800 | 790-821 MHz | 41.7dBm | |
| CH1 | GPS L1 | 1570-1580 MHz | 41.7dBm | |
| CH6 | LTE 2600 | 2620-2690MHz | 41.7dBm | |
| Power supply: AC220V, DC24V | ||||
| Total Output Power: 90Watt | ||||
| Power consumption:300Watt | ||||
|
Weight: 15Kg Size(length × wind × high): 320×120×430mm |
||||
| Humidity: 30%-95% Running Temperature: -20℃ to +55℃ | ||||
| Jammer Module Number | 6 | |||
| Cooling System | Systematic Smart Cooling System | |||
| System Protection | VSWR, Over-voltage | |||
| Jamming Source | Frequency Scan Technology | |||
| Antenna Type | High Gain Omni-directional Antennas | |||
| Number of Antennas | 6 | |||
| Inside Battery | 24V DC, 2hours; | |||
| Jamming range: 20-120m according to signal density of mobile network | ||||
Applications
Prevent remote controlled improvised explosive devices from being activated and stop terrorist attacks;
Protect explosives handling experts;
Protect important places such as bus/train stations, plazas, schools, mass gatherings, stadiums, etc;
Risk mitigation and explosives removal in specified spots;
Police used for VVIP convoy, anti drug, riot control, etc.
Military used for border control, etc.
