Product Details:
|
| Product Name: | 1300w DDS Bomb Jammer | Application: | Preventing Terrorists And Criminals |
|---|---|---|---|
| Output Power: | 1300w | Jamming Range: | 50-600meters,depend On Mobile Signal Strength |
| Advantage: | 20-3000MHz Full Band Jamming | Weight: | 85kg |
| Highlight: | ied jammer,rcied jammer |
||

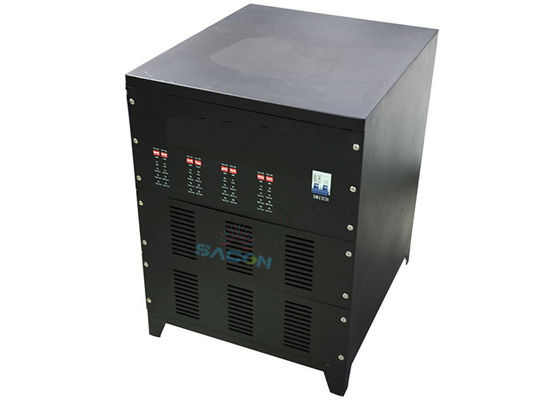

The DDS Anti 1300w High Power Convoy Bomb Jammer provides 20-3000MHz full band jamming capability for protection against remote-controlled improvised explosive devices (RCIEDs), spy tracking, and riot control situations.
| Parameter | Specification |
|---|---|
| Output Power | 1300 Watts |
| Signal Source | DDS |
| Power Supply | AC110-240V, 24V or 48V DC |
| Modules Per Unit | 13 |
| Remote Control | Wired ON/OFF Switch |
| Remote Monitoring | Adjusted output power by wired digital control board |
| Antenna | External - Omni-directional for 360º |
| Power Amplifier Protectors | Full VSWR protector |
| Operating Hours | Unlimited |
| Channel | Frequency Range | Output Power (± 1dBm) |
|---|---|---|
| CH1 | 20-80 MHz | 50 dBm |
| CH2 | 80-200 MHz | 50 dBm |
| CH3 | 200-500MHz | 50 dBm |
| CH4 | 500-1000MHz | 50 dBm |
| CH5 | 1000-1500MHz | 50 dBm |
| CH6 | 1500-2000MHz | 50 dBm |
| CH7 | 2000-2500MHz | 50 dBm |
| CH8 | 2500-3000MHz | 50 dBm |
| CH9 | 851-894MHz | 50 dBm |
| CH10 | 925-960MHz | 50 dBm |
| CH11 | 1805-1880MHz / 1930-1990MHz | 50 dBm |
| CH12 | 2110-2170MHz | 50 dBm |
| CH13 | 2400-2500MHz | 50 dBm |
| Jamming Radius | 50-600M depending on environment signal strength |
| Power Consumption | 3900W |
| Host Weight | 85Kg |
| Antennas | 13pcs External Omni antennas |
| Host Size (L×H×W) | 625×500×700 mm |
| Humidity | 30%-95% |
| Working Temperature | -20 to +55 degree Celsius |
