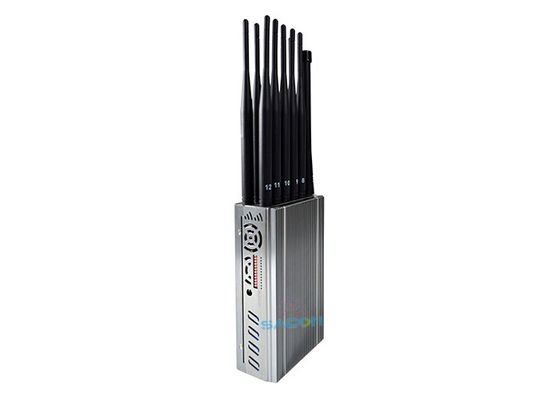

12 Channels Portable Mobile Phone Signal Jammer Block 2G 3G 4G GPS L1 L2 L5 8.4W

Product Details:
Place of Origin: China
Brand Name: Sacon
Certification: ISO9001, CE
Model Number: SA-PJ12
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: negotiation
Packaging Details: Carton with PE Foam
Delivery Time: Within 3 working days after received your payment
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000pcs/month

Detail Information

Product Name: 4G Handheld Signal Jammer Output Power: 8.4W
Shielding Radius: (2-20) Meters At -75dBm Still Depends On The Strength Signal In Given Area Built-in Battery: 7.4V/10000mAh
Packing Size: 25*24*8(cm) Weight: 2.0kg
High Light:

mobile phone blocker jammer

,

mobile phone scrambler

Product Description

12 Channels Portable Mobile Phone Signal Jammer Block 2G 3G 4G GPS L1 L2 L5





Descriptions:



The 12 antennas high power portable jammer SA-PJ12 is our new model, it is popular product in the market. The handheld

jammer device can block GSM CDMA DCS PCS 3G 4G WiFi GPS VHF UHF Lojack signals. With built-in battery, it can work

more than 2 hours. The output power of this 12 channels portable jammer is 8.4 watts. Shielding radius is up to 20 meters.





Features:



1. The latest handheld design 12 all-in-one frequencies blocking all cell phone signals, LOJACK GPS, Wi-Fi, RF signals.

2. 8.4 watt high output power and high gain antennas, Jamming range 2 to 20 meters (at-75dBm, depends on signal strength in given area).

3. Good cooling system with cooling fans inside and bigger hot sink.

4. With DIP switch, can turn on/off any signal band without affect other bands.

5. With car charger, can used in car directly, 12V DC/AC power supply is also available.

6. With built-in bigger battery, can work more than (2.0+ hours) 120 minutes, can be repeated charging.





Applications:



This High-power handheld (2G/3G/4G full-band)mobile signal jammer with Wi-Fi/ GPS/LOJACK signal,

easy to carry, flexible to use, and built-in large capacity battery, can be used in the Public Security, Police,

The Bomb Squad, S.W.A.T, Military security forces ,Anti-terrorist units, Anti-drug units, Border control units,

Checkpoints, Personal use, etc.





Specifications:



Key technical specifications:

Type A

Channel Output port Frequency range Average out-putting power
1 4GLTE 700 700-803 or 790-862MHz 28.5dBm/0.7W
2 CDMA or RC868 851-894 or 868MHz 28.5dBm/0.7W
3 GPSL1 1570-1610MHz 28.5dBm/0.7W
4 Wi-Fi 2.4G 2400-2500MHz 28.5dBm/0.7W
5 3G 2110-2170MHz 28.5dBm/0.7W
6 4G2600 or 2300 2500-2690 or 2300-2400MHz 28.5dBm/0.7W
7 LOJACK or VHF 167-175 or 135-175MHz 28.5dBm/0.7W
8 RC315 315MHz 28.5dBm/0.7W
9 RC433 or UHF 433 or 400-470MHz 28.5dBm/0.7W
10 GSM 925-960MHz 28.5dBm/0.7W
11 DCS or PCS 1805-1880 or 1920-1990MHz 28.5dBm/0.7W
12 Wi-Fi 5.8G 5725-5850MHz 28.5dBm/0.7W
Power supply: adapter 50 to 60Hz AC (110-240V AC/12V DC) Car Charger: DC12V IN

Dimensions: (length ,width, height) 165*96*46mm (not include antenna)

Length of antenna :166mm Gain:2.0dbi

Packing size: 25*24*8cm Net weight: 1.5kg Gross weight: 2.0kg
Total power: 8.4W
Shielding radius: (2-20) meters at -75dBm Still depends on the strength signal in given area
Built-in battery:7.4V/10000mAh Continue working: more than 2.0+ hours
Warranty: one year from delivery date



Key technical specifications:

Type B

Channel Output port Frequency range Average out-putting power
1 4GLTE 700 700-803 or 790-862MHz 28.5dBm/0.7W
2 CDMA or RC868 851-894 or 868MHz 28.5dBm/0.7W
3 GPSL1 1570-1610MHz 28.5dBm/0.7W
4 GPSL2L5 or PCS 1170-1280 or 1920-1990MHz 28.5dBm/0.7W
5 3G 2110-2170MHz 28.5dBm/0.7W
6 4G2600 or 2300 2500-2690 or 2300-2400MHz 28.5dBm/0.7W
7 LOJACK or VHF 167-175 or 135-175MHz 28.5dBm/0.7W
8 RC315 315MHz 28.5dBm/0.7W
9 RC433 or UHF 433 or 400-470MHz 28.5dBm/0.7W
10 GSM 925-960MHz 28.5dBm/0.7W
11 DCS or PCS 1805-1880 or 1920-1990MHz 28.5dBm/0.7W
12 Wi-Fi 2.4G 2400-2500MHz 28.5dBm/0.7W
Power supply: adapter 50 to 60Hz AC (110-240V AC/12V DC) Car Charger: DC12V IN

Dimensions: (length ,width, height) 165*96*46mm (not include antenna)

Length of antenna :166mm Gain:2.0dbi

Packing size: 25*24*8cm Net weight: 1.5kg Gross weight: 2.0kg
Total power: 8.4W
Shielding radius: (2-20) meters at -75dBm Still depends on the strength signal in given area
Built-in battery:7.4V/10000mAh Continue working: more than 2.0+ hours
Warranty: one year from delivery date





Install Steps:

  1. Please charge battery at least 8 hours before first-time use.
  2. Turn off power switch before charging. Charging indicator shall lights on RED when charging the battery, the indicator will turn to GREEN color while finished.

     3. Please install antennas and tight up according to the number indicator.

 4. Turn on the power switch and the Power LED shall light in Green and the LED of each band will turn on too(default ),by dip switching ON →OFF, each band could be disable.The corresponding LED indicator shall be turn off..

     5. Don’t suggest to use while charging, otherwise the machine will be damaged, because temperature may too high about 7 5 ° C





Packing Lists:



Main unit jammer x 1pcs

Power adapter x 1pcs

Car charge x 1pcs

Omni antenna x 12pcs

Nylon cover x 1pcs
