Product Details:
|
| Product Name: | 5.8G Mobile Phone Jammer | Channels: | 12 |
|---|---|---|---|
| Frequency System: | 2G 3G 4G WiFi GPS 5.8G Lojack VHF UHF | Output Power: | 8.4W |
| Shielding Radius: | (2-20) Meters At -75dBm Still Depends On The Strength Signal In Given Area | Dimensions: | 165*96*46mm (not Include Antenna) |
| High Light: | cell phone signal blocker,cell phone signal scrambler,8.4W 5.8g mobile phone jammer |
||

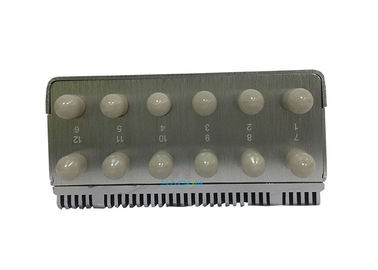

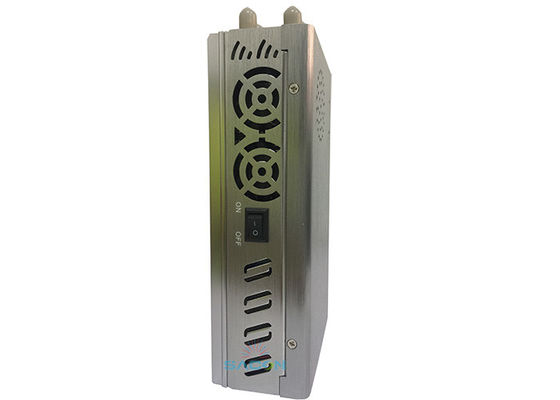

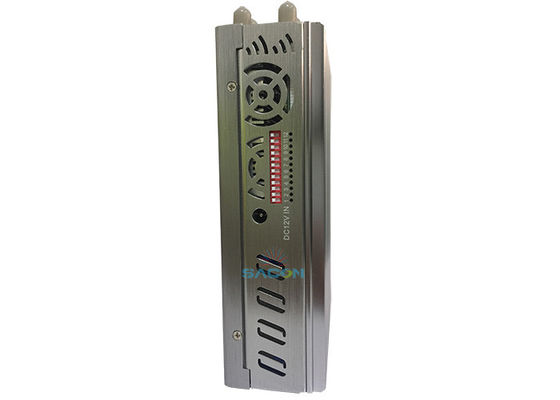

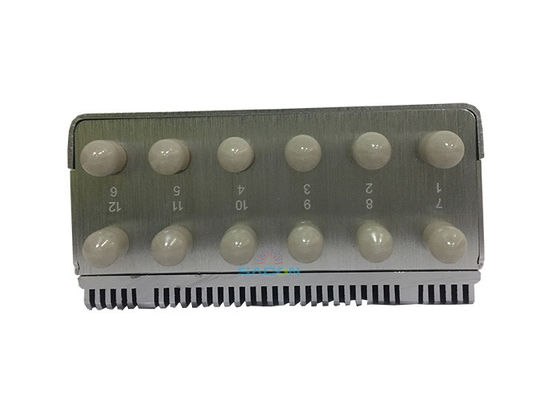

8.4W 12 Antennas Handheld Cell Phone Signal Jammer Block 2.4G 5.8G Up To 20m
Descriptions:
This 12 antennas handheld signal jammer SA-PJ12 uses high gain antennas, the shield radius can reach (2-20)m at the -75dBm.
It aslo has good cooling system with cooling fans inside and bigger hot sink. This cell phone jammer device can turn on/off any signal band
without affect other bands on the basic of DIP switch. It can be used on the car directly with car charge. The signal jammer SA-PJ12 blocks 12 frequencies. Such as 2G 3G 4G 1.2G, 2.4G, 5.8G All GPS Wifi VHF UHF 315 433 868 Lojack. Frequencies can be customized.
Technical Details:
1. Total output Power:8.4 watt
2. Built-in Battery: 10000mA/h, Working Time:120 minutes
3. Power supply: AC Charge (AC110-220V to DC12V) & Car Charge (DC12V)
4. Shielding Radius:(2-20) meters@-75dBm still depends on the strength signal in given area
5. Ports: 12 channels, such as 2G 3G 4G 1.2G, 2.4G, 5.8G All GPS Wifi VHF UHF 315 433 868 Lojack
6. Package Size: 245x235x70mm, 2.0kg
Specifications:
|
Key technical specifications: Type A |
|||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | 4GLTE 700 | 700-803 or 790-862MHz | 28.5dBm/0.7W |
| 2 | CDMA or RC868 | 851-894 or 868MHz | 28.5dBm/0.7W |
| 3 | GPSL1 | 1570-1610MHz | 28.5dBm/0.7W |
| 4 | Wi-Fi 2.4G | 2400-2500MHz | 28.5dBm/0.7W |
| 5 | 3G | 2110-2170MHz | 28.5dBm/0.7W |
| 6 | 4G2600 or 2300 | 2500-2690 or 2300-2400MHz | 28.5dBm/0.7W |
| 7 | LOJACK or VHF | 167-175 or 135-175MHz | 28.5dBm/0.7W |
| 8 | RC315 | 315MHz | 28.5dBm/0.7W |
| 9 | RC433 or UHF | 433 or 400-470MHz | 28.5dBm/0.7W |
| 10 | GSM | 925-960MHz | 28.5dBm/0.7W |
| 11 | DCS or PCS | 1805-1880 or 1920-1990MHz | 28.5dBm/0.7W |
| 12 | Wi-Fi 5.8G | 5725-5850MHz | 28.5dBm/0.7W |
| Power supply: adapter 50 to 60Hz AC (110-240V AC/12V DC) Car Charger: DC12V IN | |||
|
Dimensions: (length ,width, height) 165*96*46mm (not include antenna) Length of antenna :166mm Gain:2.0dbi |
|||
| Packing size: 25*24*8cm Net weight: 1.5kg Gross weight: 2.0kg | |||
| Total power: 8.4W Shielding radius: (2-20) meters at -75dBm Still depends on the strength signal in given area Built-in battery:7.4V/10000mAh Continue working: more than 2.0+ hours |
|||
| Warranty: one year from delivery date | |||
|
Key technical specifications: Type B |
|||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | 4GLTE 700 | 700-803 or 790-862MHz | 28.5dBm/0.7W |
| 2 | CDMA or RC868 | 851-894 or 868MHz | 28.5dBm/0.7W |
| 3 | GPSL1 | 1570-1610MHz | 28.5dBm/0.7W |
| 4 | GPSL2L5 or PCS | 1170-1280 or 1920-1990MHz | 28.5dBm/0.7W |
| 5 | 3G | 2110-2170MHz | 28.5dBm/0.7W |
| 6 | 4G2600 or 2300 | 2500-2690 or 2300-2400MHz | 28.5dBm/0.7W |
| 7 | LOJACK or VHF | 167-175 or 135-175MHz | 28.5dBm/0.7W |
| 8 | RC315 | 315MHz | 28.5dBm/0.7W |
| 9 | RC433 or UHF | 433 or 400-470MHz | 28.5dBm/0.7W |
| 10 | GSM | 925-960MHz | 28.5dBm/0.7W |
| 11 | DCS or PCS | 1805-1880 or 1920-1990MHz | 28.5dBm/0.7W |
| 12 | Wi-Fi 2.4G | 2400-2500MHz | 28.5dBm/0.7W |
| Power supply: adapter 50 to 60Hz AC (110-240V AC/12V DC) Car Charger: DC12V IN | |||
|
Dimensions: (length ,width, height) 165*96*46mm (not include antenna) Length of antenna :166mm Gain:2.0dbi |
|||
| Packing size: 25*24*8cm Net weight: 1.5kg Gross weight: 2.0kg | |||
| Total power: 8.4W Shielding radius: (2-20) meters at -75dBm Still depends on the strength signal in given area Built-in battery:7.4V/10000mAh Continue working: more than 2.0+ hours |
|||
| Warranty: one year from delivery date | |||
Applications:
This High-power handheld (2G/3G/4G full-band)mobile signal jammer with Wi-Fi/ GPS/LOJACK signal,
easy to carry, flexible to use, and built-in large capacity battery, can be used in the Public Security, Police,
The Bomb Squad, S.W.A.T, Military security forces ,Anti-terrorist units, Anti-drug units, Border control units,
Checkpoints, Personal use, etc.
Install Steps:
3. Please install antennas and tight up according to the number indicator.
4. Turn on the power switch and the Power LED shall light in Green and the LED of each band will turn on too(default ),by dip switching ON →OFF, each band could be disable.The corresponding LED indicator shall be turn off..
5. Don’t suggest to use while charging, otherwise the machine will be damaged, because temperature may too high about 7 5 ° C
Packing Lists:
Main unit jammer x 1pcs
Power adapter x 1pcs
Car charge x 1pcs
Omni antenna x 12pcs
Nylon cover x 1pcs
