5 Cooling Fans WiFi Signal Jammer Block GPS VHF UHF Lojack 315 433 868 18 Bands

Product Details:
Place of Origin: China
Brand Name: Sacon
Certification: ISO9001, CE
Model Number: SA-018B
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: negotiation
Packaging Details: Carton with PE Foam
Delivery Time: 3 working days after received your payment
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000pcs/month

Detail Information

Product Name: Cellphone Blocker Applications: Prison, Jail, School, Museums, Galleries, Theatres, Concert Halls, Churches, Temples, Restaurants,
Adjustable: Yes, You Can Adjust Each Band By Button Cooling System: High Efficiency Aluminum Alloy Radiator, Build-in 5 Cooling Fan
Working Time: Not-stop Working Weight: 7.5kg
High Light:

wifi disruptor jammer

,

wireless signal blocker

Product Description

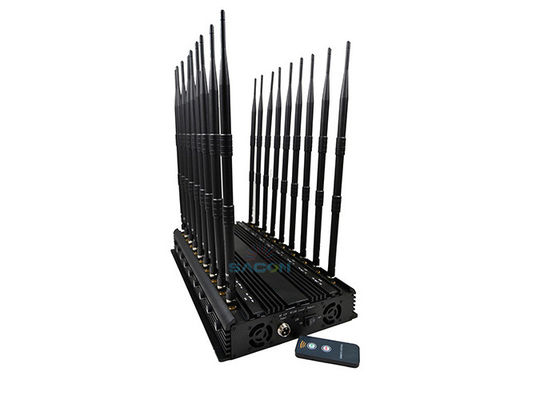

18 Bands WiFi Signal Jammer Block GPS VHF UHF Lojack 315 433 868 5 Cooling Fans





Descriptions:



This is the latest designed signal jammer SA-018B with 18 Antennas Full Bands 130Mhz-6GHz for mobile phone GSM 3G 4GLTE signal

which bring us a strong jamming ability. And it can not only cut off all 3G 4G mobile phone signals, but also jam Wi-Fi2.4G/5GHz

GPS LOJACK, RF 315 MHz 433MHz , VHF UHF Walkie-Talkie & Wireless Headset/Microphone signals. all-in-one jammer is power

full to blocks all the signals, Jamming frequencies the jamming radius up to 40meters.





Advantages:



1. Full bands 18 chancel design, Customized for special frequency band.
2. High output power, Total up to: 42W , jamming up to 40m (Still depends on the strength signal in given area).

3. External Omni-directional antennas all the TX frequency covered down link only.
4. With Car storage battery Charger DC12V can be used in car.
5. Built-in good cooling system inside, Working non-stopped.
6. Can adjust or turn off any single band without influencing the other bands operation.

7. 2-5meters with Infrared Remote Control Turn ON /OFF Power.





Specifications:



Key technical specifications: SA-018A
Channel Output port Frequency range Average out-putting power
1 CDMA 850-894MHz 35dbm / 3W
2 GSM 925-960MHZ 35dbm / 3W
3 DCS 1805-1880MHZ 33dbm / 2W
4 PCS 1900-1990MHz 33dbm / 2W
5 3G 2110-2170MHZ 33dbm / 2W
6 WIFI 2.4G 2400-2500MHZ 30dbm / 1W
7 4G1 LTE 700-805 or 790-826MHz 35dbm / 3W
8 4G LTE 2500-2690MHZ 30dbm / 1W
9 4G2 1700 1710-1780MHz 33dbm / 2W
10 4GH 2300 2300-2400MHZ 30dbm / 1W
11 433 (car remote control) 433MHZ 35dbm / 3W
12 315 (car remote control) 315MHZ 35dbm / 3W
13 VHF 135-175Mhz 35dbm / 3W
14 UHF 400-470MHZ 35dbm / 3W
15 LOJACK 167-175MHZ 35dbm / 3W
16 GPSL1 1570-1580Mhz 33dbm / 2W
17 GPSL2+L5 1170-1280MHZ 33dbm / 2W
18 GPSL3+L4 1370-1390MHZ 33dbm / 2W
Power supply: AC adapter 50 to 60Hz, (110 or 220V AC-12V DC) Car storage battery Charger DC12V
Dimensions: (length ,width, height) 460x 238x 60mm(not Include Antenna)
Packing size: 55*44*15cm Net weight: 7kg Gross weight: 8.0kg
Total power:42W
Shielding radius: (2-40) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters
Warranty: one year from delivery date



Key technical specifications: SA-018B
Channel Output port Frequency range Average out-putting power
1 CDMA 850-894MHz 35dbm / 3W
2 GSM 925-960MHZ 35dbm / 3W
3 DCS 1805-1880MHZ 33dbm / 2W
4 PCS 1900-1990MHz 33dbm / 2W
5 3G 2110-2170MHZ 33dbm / 2W
6 WIFI 2.4G 2400-2500MHZ 30dbm / 1W
7 4G1 LTE 700-805 or 790-826MHz 30dbm / 1W
8 4G LTE 2500-2690MHZ 30dbm / 1W
9 4G2 1700 1710-1780MHz 33dbm / 2W
10 4GH 2300 2300-2400MHZ 30dbm / 1W
11 Walkie-Talkie VHF1 135-200MHZ 35dbm / 3W
12 Walkie-Talkie UHF2 200-300MHZ 35dbm / 3W
13 UHF3+RC315 300-400Mhz 35dbm / 3W
14 UHF4+RC433 400-500MHZ 35dbm / 3W
15 LOJACK 167-175MHZ 35dbm / 3W
16 GPSL1 1570-1580Mhz 33dbm / 2W
17 GPSL2+L5 1170-1280MHZ 33dbm / 2W
18 GPSL3+L4 1370-1390MHZ 33dbm / 2W
Power supply: AC adapter 50 to 60Hz, (110 or 220V AC-12V DC) Car storage battery Charger DC12V
Dimensions: (length ,width, height) 460x 238x 60mm(not Include Antenna)
Packing size: 55*44*15cm Net weight: 7kg Gross weight: 8.0kg
Total power:42W
Shielding radius: (2-40) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters
Warranty: one year from delivery date



Key technical specifications: SA-018C
Channel Output port Frequency range Average out-putting power
1 CDMA 850-894MHz 35dbm / 3W
2 GSM 925-960MHZ 35dbm / 3W
3 DCS 1805-1880MHZ 33dbm / 2W
4 PCS 1900-1990MHz 33dbm / 2W
5 3G 2110-2170MHZ 33dbm / 2W
6 WIFI 2.4G 2400-2500MHZ 30dbm / 1W
7 WIFI5.2G 5100-5500MHz 30dbm / 1W
8 WIFI5.8G 5500-5900MHz 30dbm / 1W
9 4G1 LTE 700-805 or 790-826MHz 33dbm / 2W
10 4G LTE 2500-2690MHZ 30dbm / 1W
11 4G2 1700 1710-1780MHz 35dbm / 3W
12 433 (car remote control) 433MHZ 35dbm / 3W
13 315 (car remote control) 315MHZ 35dbm / 3W
14 VHF 135-175Mhz 35dbm / 3W
15 UHF 400-470MHZ 35dbm / 3W
16 LOJACK 167-175MHZ 33dbm / 2W
17 GPSL1 1570-1580Mhz 33dbm / 2W
18 GPSL2+L5 1170-1280MHZ 33dbm / 2W
Power supply: AC adapter 50 to 60Hz, (110 or 220V AC-12V DC) Car storage battery Charger DC12V
Dimensions: (length ,width, height) 460x 238x 60mm(not Include Antenna)
Packing size: 55*44*15cm Net weight: 7kg Gross weight: 8.0kg
Total power:40W
Shielding radius: (2-40) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters
Warranty: one year from delivery date







Basic Specifications



Jam Signal Type:

   1: SA-018A: Full Bands Mobile Phone 4G/3G/2G +WiFi2.4G+ GPSL1-L5 +Walkie-Talkie UHF/VHF

   2: SA-018B: Full Bands Cellphone 4G/3G/2G +WiFi2.4G+ GPSL1-L5 + Full Bands Walkie-Talkie 135-500MHZ

   3: SA-018C: Full Bands Mobile Phone 4G/3G/2G +WiFi2.4G/5GHZ + GPSL1-L5 +Walkie-Talkie UHF/VHF



Output Power:Total 42W,1-3W each band

Jam Radius:2-40meters

Power Supply:AC110 or 220V to DC12V

Cooling System:High efficiency aluminum alloy radiator, Build-in 5 cooling fan

Working Time:Not-stop Working

Product Size:460x 238x 60 mm(not Include Antenna)

Product Weight: appr.7.5kg





OEM Customized Service


Customized for special frequency band , Wi-Fi5.8G 3.6GHz, etc
Silkscreen OEM service can be offered





Application:


It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security.
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument.

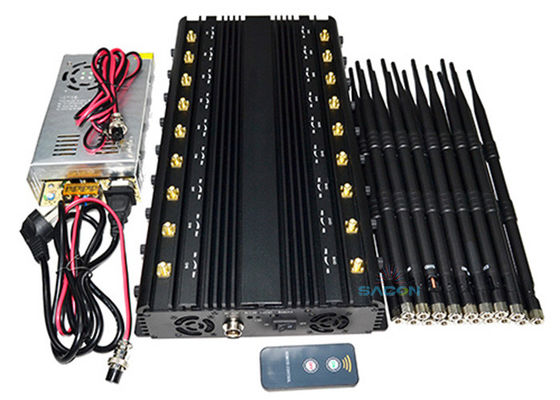

Packing Lists:



Jammer Host x 1pcs

AC Adapter x 1pcs

Antenna x 18pcs

Car storage battery cable x 1pcs
