Product Details:
|
| Product Name: | Vehicle Mounted Signal Jammer | Output Power: | 160w |
|---|---|---|---|
| Jamming Range: | 2~80(m) @the Signal Strength Is At -80dBm | Power Supply Mode: | DC-12V/24V |
| Weight: | 10kgs | Dimensions (length × Width × Height): | 460mm×330mm×70mm |
| High Light: | 8 Channels Mobile Phone Signal Jammer,Mobile Phone Signal Jammer 20w,Adjustable Mobile Phone Jammer |
||

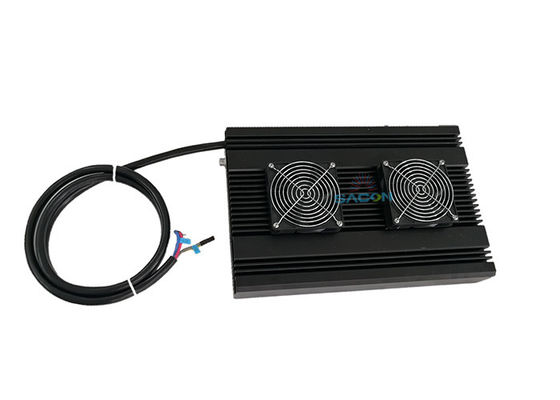

8 Channels 700Mhz - 6Ghz Mobile Phone Signal Jammer 20w Each Band With Switch
Description:
This vehicle-mounted mobile phone signal jamming device can block frequency 700Mhz - 6000Mhz signals. So it can stop
terrorists (or reactionaries, illegal organizations) from using RIPED to work on wireless communication devices working in this
frequency band to implement terrorism. The 8 channels signal blocker can reach high power, each band is 20w high power, it can be
turned on by switch. 24 hours non-stop working.
Features:
1. Easy to install, no need to modify the vehicle;
2. Modular construction for easy maintenance and upgrades;
3.The operation is simple and convenient, and the interference radius is large;
4. Frequency band and output power are optional;

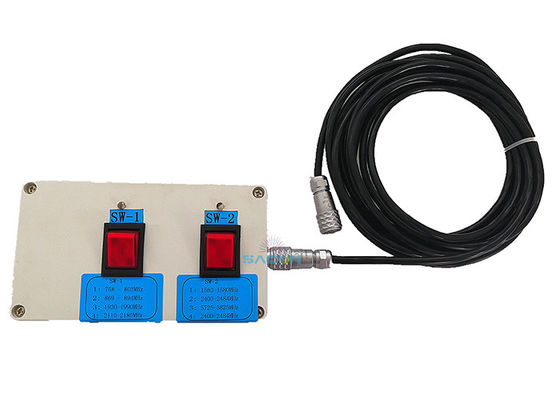

5. Local or wired control mode of operation can be selected according to the actual environment;
6. AC or DC power supply can be selected;
7.Good heat dissipation performance ensures the reliability of the device;
8. High power and long distance range.
Specification:
| 2G Cell Phone Band 758-830MHz | 20W |
| 2G Cell Phone Band 869-894MHz | 20W |
| 2G Cell Phone Band 1930-1990MHz | 20W |
| 3G Cell Phone Band 2110-2180MHz | 20W |
| Gps Band 1560-1580MHz | 20W |
| WIFI Band 2400-2484MHz | 20W |
| R/C 433MHz Band 425-440MHz | 20W |
| 4G 2600MHz 2620-2690MHz | 20W |
| Output Power | 160W |
| Jamming Range | 2~80(m) @the signal strength is at -80dBm |
| Power supply mode Battery powered | DC-12V/24V |
| Humidity | 5%-95% |
| Operating temperature: | -20℃ to +60℃ |
| Weight | 10Kg |
| Dimensions (length × width × height) | 460×330×70mm |
| Outer box | Universal carton |
| Antenna | Omni-directional antenna |
America Type frequency for United States, Canada, Mexico,S. America.
1. GSM850MHz:850-894MHz; 20W (GSM/CDMA)
2. GSM1900MHz:1920-1990MHz;20W (2GGSM/CDMA/PCS1900MHz)
3.4GLTE700MHz:700-800MHz;20W
4. 3G2100MHz:2100-2170MHz;20W (3GUMTS/WCDMA/TD-SCDMA/CDMA)
5. Wi-Fi/Bluetooth2.4G:2400-2500MHz;20W
6. 4G WiMAX/4GLTE2600MHz:2500-2700MHz;20W
7. GPS/Glonass/GalileoL1:1570-1620MHz; 20W
8. GPS/Glonass/GalileoL2:1200-2300MHz; 20W
Total Output Power:160W
Europe Type frequency for Europe, Asia, Australia, Middle East, Africa.
1. GSM900MHz:925-960MHz;20W
2.GSM1800MHz:1805-1880MHz;20W;(2GGSM/CDMA/DCS1800MHz)
3. 4GLTE700MHz:790-821MHz;20W;
4. 3G2100MHz:2100-2170MHz;20W;(3GUMTS/WCDMA/TD-SCDMA/CDMA)
5. Wi-Fi/Bluetooth 2.4G:2400-2500MHz;20W;
6. 4GWiMAX/4GLTE2600MHz:2620-2690MHz;20W;
7. GPS/Glonass/GalileoL1:1570-1620MHz; 20W
8. GPS/Glonass/GalileoL2:1200-2300MHz; 20W
Total Output Power:160W
Optional Frequency:
1.Lojack:173.03MHz;
2.CDMA450MHz:430-450/460-470MHz
3.GPS/GLONASS/GALILEO:L1 2 L3 L4 L5,
4.Wireless Camera:1.2G
5.Car remote control:433MHz,315MHz,868MHz , 920-965MHz
6.Walkie-Talkie:VHF,UHF
7. SAT Satellite Phones:1520-1670MHz
8. Wi-Fi 11a/n 5.1-5.5GHz: 5100-5500MHz;10W
9. Wi-Fi 11a/n 5.5-5.9GHz:5500-5900MHz;10W
We could supply customized service by your detail requirements about frequencies setting.
Application Area:
1) it can be applied at meeting rooms, conference rooms, museums, galleries, theaters, concert halls,
churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more
2) For some locations of special purpose such as hospitals, gas stations and more, Please do field test first
to make sure no interference happened to them
Packing Lists:
160w Signal Jammer 1pcs
Omni Antennas 8pcs
AC110 Or 220V Power Supply 1pcs
Installation bracket
