Product Details:
|
| Product Name: | Network Signal Jammer | Antenna: | Omni-directional Antenna |
|---|---|---|---|
| Power Supply: | DC-12V/24V | Operating Temperature: | -20℃ To +60℃ |
| Weight: | 10kgs | Dimensions (length × Width × Height): | 460mm×330mm×70mm |
| Highlight: | cell phone signal scrambler,mobile cell phone jammer |
||

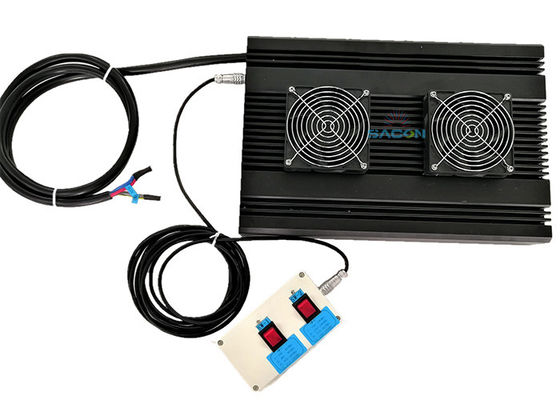

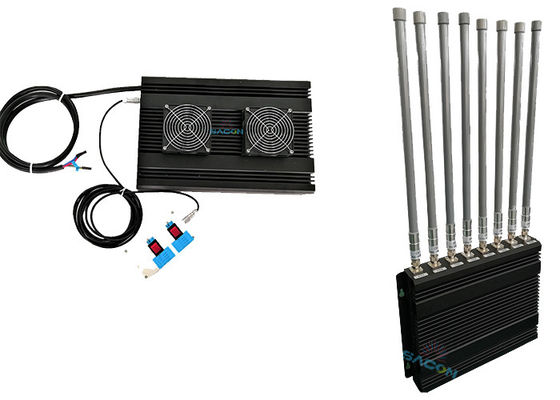

160w Vehicle Mounted Cell Phone Signal Jammer Blcok 2G 3G 4G GPS Wifi DC-12V/24V
Description:
This network signal jammer SA-MJ08 includes 8 channels, each channel power is up to 20w. The phone blocker can jam 2G
3G 4G GPS WiFi RC433Mhz RC868Mhz VHF UHF Lojack Signals. Jamming range is up to 80m. This mobile phone jamming device
can be aslo used on car, the power supply is DC12V Or 24V. It is very easy to install. With 2 big fans, it can be 24 hours working without stopping. Frequency can be customized as your special request.
Features:
1. Easy to install, no need to modify the vehicle;
2. 2 big fans inside, it can work non-stoped.
3. Modular construction for easy maintenance and upgrades;
4.The operation is simple and convenient, and the interference radius is large. Radius up to 80m;
5. Frequency band and output power are optional;
6. Local or wired control mode of operation can be selected according to the actual environment;
7. AC or DC power supply can be selected;
8.Good heat dissipation performance ensures the reliability of the device;
9. High power, each band is 20w.
Application Area:
1) it can be applied at meeting rooms, conference rooms, museums, galleries, theaters, concert halls,
churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more
2) For some locations of special purpose such as hospitals, gas stations and more, Please do field test first
to make sure no interference happened to them
Specification:
| 2G Cell Phone Band 758-830MHz | 20W |
| 2G Cell Phone Band 869-894MHz | 20W |
| 2G Cell Phone Band 1930-1990MHz | 20W |
| 3G Cell Phone Band 2110-2180MHz | 20W |
| Gps Band 1560-1580MHz | 20W |
| WIFI Band 2400-2484MHz | 20W |
| R/C 433MHz Band 425-440MHz | 20W |
| 4G 2600MHz 2620-2690MHz | 20W |
| Output Power | 160W |
| Jamming Range | 2~80(m) @the signal strength is at -80dBm |
| Power supply mode Battery powered | DC-12V/24V |
| Humidity | 5%-95% |
| Operating temperature: | -20℃ to +60℃ |
| Weight | 10Kg |
| Dimensions (length × width × height) | 460×330×70mm |
| Outer box | Universal carton |
| Antenna | Omni-directional antenna |
America Type frequency for United States, Canada, Mexico,S. America.
1. GSM850MHz:850-894MHz; 20W (GSM/CDMA)
2. GSM1900MHz:1920-1990MHz;20W (2GGSM/CDMA/PCS1900MHz)
3.4GLTE700MHz:700-800MHz;20W
4. 3G2100MHz:2100-2170MHz;20W (3GUMTS/WCDMA/TD-SCDMA/CDMA)
5. Wi-Fi/Bluetooth2.4G:2400-2500MHz;20W
6. 4G WiMAX/4GLTE2600MHz:2500-2700MHz;20W
7. GPS/Glonass/GalileoL1:1570-1620MHz; 20W
8. GPS/Glonass/GalileoL2:1200-2300MHz; 20W
Total Output Power:160W
Europe Type frequency for Europe, Asia, Australia, Middle East, Africa.
1. GSM900MHz:925-960MHz;20W
2.GSM1800MHz:1805-1880MHz;20W;(2GGSM/CDMA/DCS1800MHz)
3. 4GLTE700MHz:790-821MHz;20W;
4. 3G2100MHz:2100-2170MHz;20W;(3GUMTS/WCDMA/TD-SCDMA/CDMA)
5. Wi-Fi/Bluetooth 2.4G:2400-2500MHz;20W;
6. 4GWiMAX/4GLTE2600MHz:2620-2690MHz;20W;
7. GPS/Glonass/GalileoL1:1570-1620MHz; 20W
8. GPS/Glonass/GalileoL2:1200-2300MHz; 20W
Total Output Power:160W
Optional Frequency:
1.Lojack:173.03MHz;
2.CDMA450MHz:430-450/460-470MHz
3.GPS/GLONASS/GALILEO:L1 2 L3 L4 L5,
4.Wireless Camera:1.2G
5.Car remote control:433MHz,315MHz,868MHz , 920-965MHz
6.Walkie-Talkie:VHF,UHF
7. SAT Satellite Phones:1520-1670MHz
8. Wi-Fi 11a/n 5.1-5.5GHz: 5100-5500MHz;10W
9. Wi-Fi 11a/n 5.5-5.9GHz:5500-5900MHz;10W
We could supply customized service by your detail requirements about frequencies setting.
Packing Lists:
160w Signal Jammer 1pcs
Omni Antennas 8pcs
AC110 Or 220V Power Supply 1pcs
Installation bracket
