Product Details:
|
Product Name: | IED Bomb Jammer | Jamming Frequencies: | 2g/3G/4G/2.4G/WiFi/GPS Etc |
---|---|---|---|
Power Consumption: | 1800W | Power Supply: | AC110-220V |
Size: | 850×620×470mm | Weight: | 62kgs |
Highlight: | IED Outdoor Bomb Jammer,600w Outdoor Bomb Jammer,IED RCIED bomb jammer |
600m Radius 600w Waterproof Outdoor Bomb Jammer 5.2G 5.8G 5G Cell Phone Signal Jammer
Descriptions:
Waterproof high power prison jammer SA-WJ06, each band is 100w, total power is 600w. The jamming radius can reach 600m long distance.
This mobile jamming device can block 2G 3G 4G 5G GPS WiFi signals. Frequencies can be optional. Power supply of this bomb jammer is AC110V~220V, it can be used all over the world. This high power signal jammer includes remote control software ( Switch ON/OFF, Realtime monitoring), It is very helpful for later management and viewing. For the antennas, you can select directional plate antenna and omnidirectional antenna. This jamming system SA-WJ06 works 24 hours each day with non-stopped.
This waterproof cellular phone jammer can be used in a variety of open spaces, the main objective of the Prison Jammers is to jam cellular phones and RF communication in designated prison areas. Our solution is a high power Outdoor jamming system that can be controlled remotely using the control unit in the prison administrator computer.
Features:
1. Taking use of super-high frequency with high effective power.
2. Effective output power (channel power) and bigger interference radius.
3. Only interfere with the downlink frequency of the mobile system, without disturb normally working of Base Stations.
4. Imported elements: Slow start up design of circuit. These elements can maintain stable operation condition with high integration.
5. For Outdoor, Waterproof design.
6.Remote Control Software ( Switch ON/OFF, Realtime monitoring).
7.Connection LAN remote control + Software management system.
Specifications:
Output interface | Frequency range | RF output power | Output power/channel |
CH1 | 790-826 MHz | 50 dBm | 22 dBm/30KHz(min) |
CH2 | 2620-2690 MHz | 50 dBm | 19 dBm/30KHz(min) |
CH3 | 925- 960 MHz | 50dBm | 20 dBm/30KHz(min) |
CH4 | 1805-1880 MHz | 50dBm | 20 dBm/30KHz(min) |
CH5 | 2110-2170 MHz | 50 dBm | 23 dBm/30KHz(min) |
CH6 | 2400-2500 MHz | 50 dBm | 23 dBm/30KHz(min) |
Power supply: AC110-220V Shielding area: 50-600m @ according to signal density of the mobile network |
|||
Output Power: 600W Power consumption: 1800W Weight: 62Kg Size(length × wind × high):720×452×335mm Packing Size: 850×620×470mm |
|||
Working Time: 24 Hours Humidity: 30%-95% Running Temperature: -20 to +55 Celsius Degree |
Support 20-6000MHz, such as, 5G 3400MHz, 3600MHz, 5.8G, 5.2G.
System Advantages:
Signal Source: VCO
Continuous operation, even in hot climates, with no time limit.
Secure design to avoid sabotage.
(VSWR) circuit protection to ensure system will not burn out should there be antenna short circuiting or disconnection
Optional Features:
Selection of antennas to provide more flexibility regarding jamming coverage.
Special additional housing for all weather protection.
Can use the UPS and battery

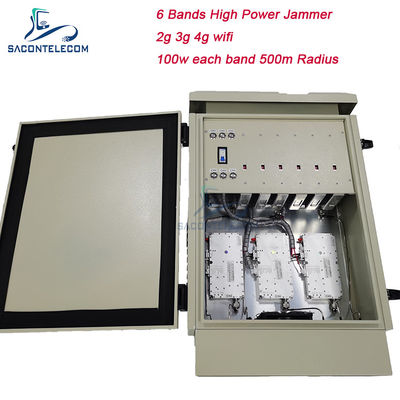

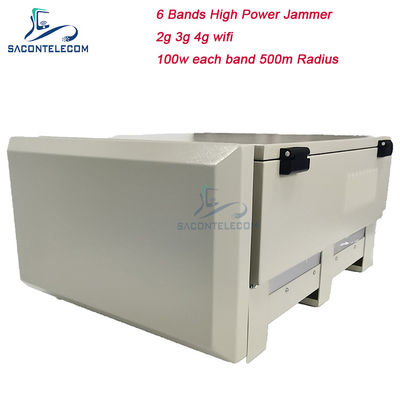

Product photo
Applications:
Prisons, military, government, Oil and Gas Storage Facilities and fields, Churches, Theatres, News Conference Rooms, Libraries, Museums, Courts, Border Patrol and Drug Enforcement, Customs, mosques, etc.
Packing lists:
Name | Quantity | Remarks |
Waterproof outdoor jammer | 1 | |
power supply | 1 | AC220V-220V |
Antennas | Optional |
