Product Details:
|
| Product Name: | Polican Vehicle Signal Jammer | Frequency Range: | 20-6000mhz |
|---|---|---|---|
| Application: | Security Force | Battery: | 1-2 Hours Working Time |
| Weight: | 9.6kgs | Dimension: | 415 Mm(L)×340mm(W)× 174 Mm(H) |
| High Light: | DDS Portable Signal Jammer,90w Portable Signal Jammer,Flexible UAV Signal Jammer |
||

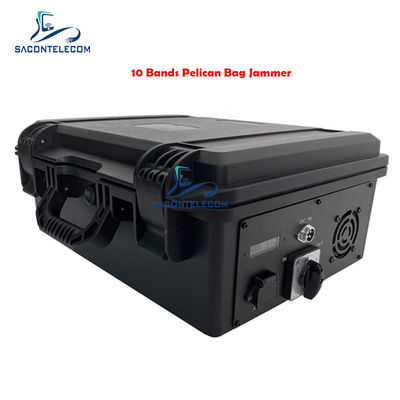

Polican Case Security Forces Built-in Antennas 90w DDS Portable Signal Jammer
Description:
1. 10 Bands Buit-in antennas, 90w power;
2. 30-100 meters radius range;
3. Drag box design can be installed in the car;
4. DDS digital modulation technology can set frequency range and adjust power according to the requirement;
5. Internal modular design can be flexible operation, multi-channels with fault alarm function can be managed separately;
6. Each channel module can start or close individually and output four different frequency bands simultaneously ;
7. Battery inside, 1~2 hours working time;
8. Frequency can be customized;
9. ODM, OEM is available.
Specifications:
| SA-MJ10 Europe Type | SA-MJ10 America Type | |||
| 920-960MHz: 10W GSM900 |
Built-in Directional Antennas for these 10 bands |
850-895MHz 10W CDMA |
Built-in Directional Antennas for these 10 bands |
|
| 1800-1920MHz 10 W DCS GSM 1800 | 1800-2000MHz 10 W DCS PCS |
|||
| 2100-2170MHz 10 W 3G UMTS |
2100-2170MHz 10W 3G UMTS | |||
| 2570-2690MHz:8W 4G LTE High |
2500-2700MHz:8W 4G High |
|||
| 758-825MHz:10W 4G LTE Low + 5G LTE |
725-805MHz:10W 4G Low |
|||
| 2300-2500MHz: 8 W WiFi 11.b, g |
2300-2500MHz: 8 W WiFi 11.b, g |
|||
| 3400-3600MHz: 8W 5G LTE | 610-652MHz: 10W 5G LTE |
|||
| 3600-3800MHz: 8W 5G LTE | 1570-1620MH: 10W GPS L1 + Glonass L1 |
|||
| 1450-1620MH: 10W GPS L1 + Glonass L1, 5G LTE |
850-895MHz 10W CDMA |
|||
| 5.1-5.9GHz: 4W WiFi 11.a |
5.1-5.9GHz: 4W WiFi 11.a |
|||
| Total : 86W | Total : 90W | |||
| Battery | 1-2 Hours Working Time | |||
| Power supply: | AC110 or 220-240V /DC 27V or External AC110-220V Power Supplier | |||
| Jamming Range | Radius 30~100 meters (-75dBm@Omnidirectional antennas) | |||
| Weight | 9.6 kg | |||
| 415 mm(L)×340mm(W)× 174 mm(H) | ||||
Antennas Specification
| Electrical Specifications | ||
| Frequency Range | 750-830/920-965/1450-1620/1805-1900/2100-2170/2300-2500/2560-2700/3400-3600/3600-3800/5100-5900MHz | |
| Gain(dBi) | 8/12±1dBi | |
| VSWR | ≤1.5/2.0 | |
| Polarization | Vertical+±45° | |
| Horizontal Beamwidth(0º) | 60-65±8º | |
| Vertical Beamwidth(0º) | ≥15±5º | |
| Front-to-back ratio(dB) | ≥20-30 | |
| Input Impedance(Ω) | 50Ω | |
| Maximum input power(W) | 100W | |
| Input connector type | 10*SMA-J RG316 | |
| Lightning Protection | DC Ground | |
| Mechanical Specifications | ||
| Dimensions mm(Height/Width/Depth) | 375*280*40mm | |
| Antenna weight(kg) | 0.8Kg | |
| Rated Wind Velocity(m/s) | 60m/s | |
| Operational Humidity(%) | 10- 95 | |
| Radome material | ABS | |
| Operating temperature(ºC) | -30~70 º | |
| Mounting hardware(mm) | ¢30~¢75 | |
| Mechanical tilt(º) | 0-10º | |
Applicable place:
The draw bar box UAV signal jammer, with characteristics of easy to carry, flexible to use, and built-in large capacity battery, can be used in the Public Security, the Airport airspace control, the Secret unit, the Sports Events, the Large Gatherings, the VIP security, etc.
Package Lists:
1pcs mobile phone jammer
1pcs power adaptor
