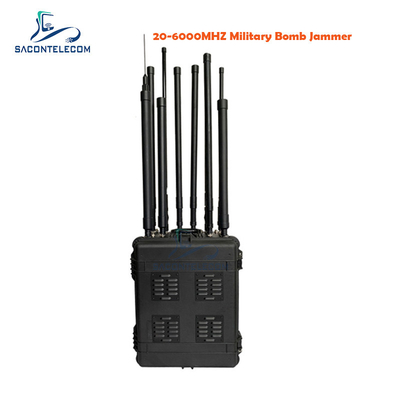

20 Bands Frequency Adjustable 20-6000mhz Military DDS Convoy Bomb Jammer
Description:
1. 20-6000mhz frequency, total 20 bands;
2. 1350w high power, 500-1000 meters radius range;
3. Stand-alone modular design and individual power control;
4. RJ485 Protocol; Can control all 10 modules by one RJ485 connector (Not like RS-232 needs to connect each module one by one).
One Computer interface control all 20 bands
5. Each module has one LED show Frequency, ON/OFF Status, Output power;
6. One Main LED to show all 8 bands/modules status: Frequency, Four Windows setting, Output power, VSWR,
Working Voltage, Working current Amp,Temperature;
7. Adjustable the Frequency and Output Power each Band/Channel by Computer;
8. VSWR over protection for each modular.
Specifications:
| SA-CBJ10-A ( 10 Bands) |
SA-CBJ10-B ( 10 Bands) |
|
20-100MHz: 100W
27MHz, 35Mhz, 41MHz, 72MHz toys and HM Remote control
|
2700-3000MHz: 50W
|
|
100-300MHz 100W VHF
Low-power transmitters
|
3000-3300MHz: 50W |
|
300-500MHz: 100W
Walky-Talky, 315/433MHz Car Remote Control
|
3300-3600MHz: 50W
5G LTE
|
|
500-800MHz: 100W
4G LTE
|
3600-4000MHz: 50W
5G LTE
|
|
800-1000MHz: 100W
GSM 900
|
4000-4400MHz: 25W
|
|
1000-1400MHz 100W
GPS L2, L3 L4 L5
|
4400-4800MHz 25W
|
|
1400-1800MHz: 100W
GPS L1
|
4400-4800MHz: 25W
|
|
1800-2000MHz: 100W
4G LTE & WiMax
|
4800-5100MHz: 25W
4G LTE & WiMax
|
|
2000-2300MHz 100W
3G UMTS
|
5100-5500MHz 25W
WiFi 11.a
|
|
2300-2700MHz: 100W
4G LTE, WiFi 11.g.b
|
5500-5900MHz 25W
WiFi 11.a
|
| 10000 W |
350 W |
| 1350 W |
| Power supply: |
AC adapter (AC220V-DC27V or 24V/ 45 Amp) or External Battery |
| Jamming Range: |
500-1000 meters@-75dBm |
| Stand-alone modular design and individual power control. |
|
RJ485 Protocol : Can control all 10 modules by one RJ485 connector (Not like RS-232 needs to connect each module one by one). One Computer interface control all 8 bands
Each module has one LED show Frequency, ON/OFF Status, Output power
One Main LED to show all 8 bands/modules status: Frequency, Four Windows setting, Output power, VSWR, Working Voltage, Working current Amp, Temperature
(Do not need Computer to check one module by one module status)
|
| Adjustable the Frequency and Output Power each Band/Channel by Computer |
| VSWR over protection for each modular. |
| Working status indicator for each band modular. |
| Dimension:626 mm(L)×49.2mm(W)× 350mm(H), Pelican 1620 |
| Weight:53 Kg (approximately) just main unit not included antenna & all accessories |
| Operating temperature:-20ºC~ +60ºC |
| Humidity: 5% ~ 90% |
| External Battery |
B-50AH 27V/50AH LiFePo4 Battery |
| |
Pelican Case 1440, 30kg Weight |
| |
Work 1 Hour Around |
| Warranty: |
1 year |
Applicable place:
The draw bar box DDS Manpack signal jammer, with characteristics of easy to carry, flexible to use, and built-in large capacity battery, can be used in the Public Security, the Airport airspace control, the Secret unit, the Sports Events, the Large Gatherings, the VIP security, etc.
Optional Accessories
1 The Battery Box
The battery capacity of external battery box: 24V35Ah
| Type |
RFE-8F35 |
| Voltage |
27V |
| Resistance |
24MΩ |
| Size |
430x245x340mm |
| Charging current |
0.2C |
| Discharging current |
1C |
| Weight |
12Kg |
| Charger input |
AC 100-230V |
| Charger output |
DC 29V/5A
|
