Product Details:
|
| Product Name: | 5G Signal Jammer Blocker | Output Power: | 110w |
|---|---|---|---|
| Jamming Radius: | 10-80 (meters)@depends On Signal Strength | Power Supply: | AC110-240V To DC24V |
| Weight: | Appr.10.0kg | Dimension: | 410x310x 91mm（not Include Antenna） |
| High Light: | Adjustable GPS Lojack Signal Jammer,110w Lojack Signal Jammer,16 Antennas Desktop Signal Jammer |
||

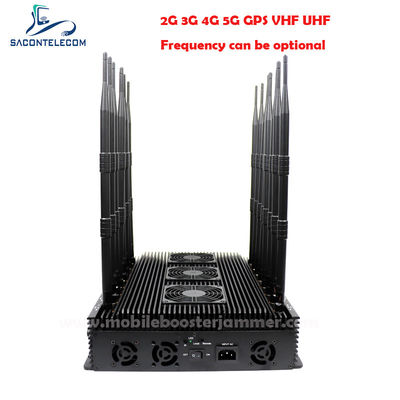

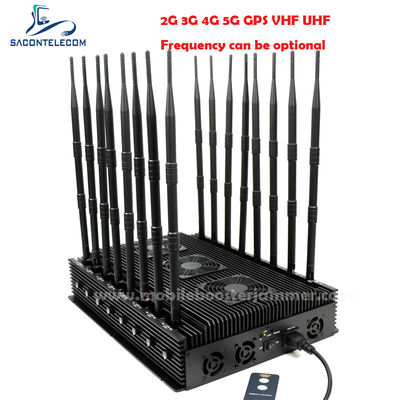

New 110w powerful 16 Antennas Indoor Desktop Adjustable GPS Lojack Signal Jammer Manufacturer
Description:
The latest design all-in-one powerful cellphone 5G WIFI GPS UHF/VHF signal jammer SA-016N is designed with 16 antennas which bring us a strong jamming ability. And it can not only cut off all 3G 4G 5G mobile phone signals, but also jam WiFi2.4G 5G CDMA450M GPS LOJACK UHF VHF LORA signals. And with Adjustable 110 watts, the jamming radius of this device can be up to 80 meters at most depending on the signal strength in the detailed place. Built-in 4 big Cooling Fans non-stop working. LED pilot light show each band working status, 2-5meters with Infrared Remote Control Turn ON /OFF Power.
Features:
16 chancel design, 2-10 watt each band
High output power, Total up to: 110W, jamming up to 80m (Still depends on the strength signal in given area)
External high gain 3-5dbi Omni-directional antennas all the TX frequency covered down link only
Build-in AC110-240V to 24V adapter, Safe and easily use.
Built-in good cooling system inside 4 big fans, Working non-stopped
2-5meters with Infrared Remote Control Turn ON /OFF Power
Can adjust or turn off any single band without influencing the other bands operation
Independent module design with frequency source of each channel, easy maintenance (if have any damaged frequency band, replace with new PCB directly, no need for professional equipment such as frequency analyzer)
LED pilot light show each band working status
ODM and OEM orders are welcome, you can select any 16 bands for you require.
Notice: If you want to use this device in car, pls buy an inverter of DC12V/24V to AC110-240V, Power≥500Watts
Specifications:
| Key technical specifications: SA-016N | |||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | CDMA&868 | 851-894MHz | 10W |
| 2 | GSM900 | 925-960MHz | 10W |
| 3 | DCS/PCS | 1805-1880/1920-1990MHz | 8W |
| 4 | 3G | 2110-2180MHz | 8W |
| 5 | 4GLTE Low | 698-803/758-821MHz | 10W |
| 6 | 4GLTE High | 2496-2690/2570-2690MHz | 8W |
| 7 | WIFI2.4G/4G2300 | 2400-2485/2300-2485MHz | 8W |
| 8 | 4G1700 | 1710-1780MHz | 8W |
| 9 | WIFI5.8G | 5500-5900MHz | 2W |
| 10 | WIFI5.2G | 5100-5500MHz | 2W |
| 11 | GPS&Glonass L1 | 1560-1610MHz | 5W |
| 12 | GPSL2L3L4L5 | 1170-1390MHz | 5W |
| 13 | LORA | 900-960MHz | 10W |
| 14 | VHF&LOJACK | 135-175MHz | 5W |
| 15 | RC315 | 315MHZ | 5W |
| 16 | UHF&RC433 | 400-470Mhz | 5W |
| Power supply: AC adapter 50 to 60Hz, (110-240V AC-24V DC) | |||
| Dimensions: (length ,width, height) 410x 310x 91mm(not Include Antenna) | |||
| Packing size: 52x45x15cm N.W: 10kg Gross weight: 11kg | |||
| Total power:110W Shielding radius: (10-80) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 30meters |
|||
| Warranty: one year from delivery date | |||
| Key technical specifications: SA-016N-US type | |||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | CDMA&868 | 851-894MHz | 10W |
| 2 | GSM&LORA | 900-960MHz | 10W |
| 3 | PCS | 1930-2000MHz | 8W |
| 4 | 3G | 2110-2180MHz | 8W |
| 5 | 4GLTE Low | 700-803MHz | 10W |
| 6 | 4GLTE High | 2500-2690MHz | 8W |
| 7 | WIFI2.4G/4G2300 | 2400-2485/2300-2485MHz | 8W |
| 8 | 5G600 | 617-685MHz | 10W |
| 9 | WIFI5.8G | 5500-5900MHz | 2W |
| 10 | WIFI5.2G | 5100-5500MHz | 2W |
| 11 | GPS&Glonass L1 | 1560-1610MHz | 5W |
| 12 | GPSL2L3L4L5 | 1170-1390MHz | 5W |
| 13 | 5G3500 | 3400-3800MHz | 5W |
| 14 | VHF&LOJACK | 135-175MHz | 5W |
| 15 | RC315 | 315MHZ | 5W |
| 16 | UHF&RC433 | 400-470Mhz | 5W |
| Power supply: AC adapter 50 to 60Hz, (110-240V AC-24V DC) | |||
| Dimensions: (length ,width, height) 410x 310x 91mm(not Include Antenna) | |||
| Packing size: 52x45x15cm N.W: 10kg Gross weight: 11kg | |||
| Total power:105W Shielding radius: (10-80) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 30meters |
|||
| Warranty: one year from delivery date | |||
| Key technical specifications: SA-016N-EU type | |||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | 5G1400 | 1427-1518MHz | 5W |
| 2 | GSM&LORA | 900-960MHz | 10W |
| 3 | DCS | 1805-1880MHz | 8W |
| 4 | 3G | 2110-2170MHz | 8W |
| 5 | 4GLTE Low | 758-826MHz | 10W |
| 6 | 4GLTE High | 2570-2690MHz | 8W |
| 7 | WIFI2.4G/4G2300 | 2400-2485/2300-2485MHz | 8W |
| 8 | 5G3500 | 3400-3600MHz | 5W |
| 9 | WIFI5.8G | 5500-5900MHz | 2W |
| 10 | WIFI5.2G | 5100-5500MHz | 2W |
| 11 | GPS&Glonass L1 | 1560-1610MHz | 5W |
| 12 | GPSL2L3L4L5 | 1170-1390MHz | 5W |
| 13 | 5G3700 | 3600-3800MHz | 5W |
| 14 | VHF&LOJACK | 135-175MHz | 5W |
| 15 | RC315 | 315MHZ | 5W |
| 16 | UHF&RC433 | 400-470Mhz | 5W |
| Power supply: AC adapter 50 to 60Hz, (110-240V AC-24V DC) | |||
| Dimensions: (length ,width, height) 410x 310x 91mm(not Include Antenna) | |||
| Packing size: 52x45x15cm N.W: 10kg Gross weight: 11kg | |||
| Total power:100W Shielding radius: (10-80) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 30meters |
|||
| Warranty: one year from delivery date | |||
OEM Customized Service
Silkscreen OEM service can be offered
Applicable place:
It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
