Product Details:
|
Product Name: | Cellular Jammer | Channels: | 20ch |
---|---|---|---|
Output Power: | 52 Watts | Jamming Range: | 20-60(m) @-75dBm Still Depends On The Strength Signal In Given Area |
Built-in Battery: | No | Power Supply: | AC Adapter (AC110V220V-DC12V) |
High Light: | GSM LORA Mobile Phone Signal Jammer,960MHZ Mobile Phone Signal Jammer,52 Watts Desktop Signal Jammer |

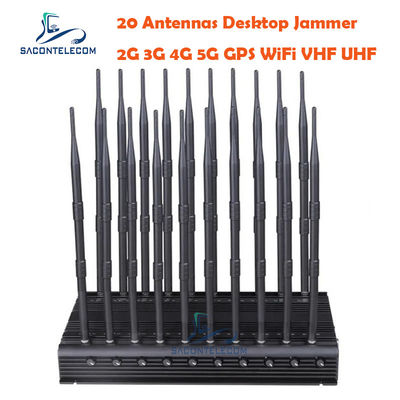

20 Channels Long Radius Desktop Mobile Phone Signal Jammer Indoor Wireless Blocker
Description Of Mobile Phone Signal Jammer
This new powerful cellphone WIFI GPS 5G signal jammer is designed with 20 antennas which bring us a strong jamming ability. And Signal Jammer can not only cut off all 3G 4G 5G mobile phone signals, but also block WiFi GPS LOJACK signals. And with Adjustable 52 watts high power, the jamming radius of this device can be up to 60 meters at most depending on the signal strength in the detailed place.Built-in 5 Cooling Fans non-stop working.
Feature Of cellphone signal jammer
1. All in one! Full Band, multi-Use, powerful Jammer;
2. Adjustable working range you can avoid blocking adjacent areas;
3. Each of 20 frequency is separately and Adjustable;
4. Friendly use and maintenance;
5. 24/7hours working,Could continue to work;
6. Good cooling system with unique case as big heat sink and 5 fans inside, low noise;
7. Portability: Vehicular power cable also included Could be used in Vehicle directly jamming car bomb;
Specification Of Mobile Phone Signal Jammer
Channel | Output port | Frequency range | Average out-putting power |
1 | CDMA/RC868 | 850-894MHz | 35dbm / 3W |
2 | GSM/LORA | 900-960MHZ | 35dbm / 3W |
3 | DCS/PCS | 1805-1990MHZ | 33dbm / 2W |
4 | 3G, UMTS | 2110-2180MHZ | 33dbm / 2W |
5 | 4G700 | 700-803 or 758-821MHZ | 35dbm / 3W |
6 | 4G2600 | 2496-2690MHZ | 30dbm / 1W |
7 | 4G1700 | 1710-1780MHZ | 33dbm / 2W |
8 | 5G 600 or 5G1400 | 617-675 or 1427-1518MHZ | 35dbm / 3W |
9 | 5G 3.5G | 3400-3600MHZ | 30dbm / 1W |
10 | 5G 3.7G | 3600-3800MHZ | 30dbm / 1W |
11 | WIFI 2.4G 11.b, g/4G2300 | 2300-2500MHZ | 30dbm / 1W |
12 | WIFI 5.2G 11.a | 4900-5500MHZ | 30dbm / 1W |
13 | WIFI 5.8G 11.a | 5500-5900MHZ | 30dbm / 1W |
14 | GPS: L1 + Glonass L1 | 1570-1580Mhz | 33dbm / 2W |
15 | GPSL2+L5 + Glonass L2 | 1170-1280MHZ | 33dbm / 2W |
16 | GPSL3+L4 | 1370-1390MHZ | 33dbm / 2W |
17 | Lojack Car Tracking | 167-175MHZ | 35dbm / 3W |
18 | VHF | 135-175Mhz | 35dbm / 3W |
19 | UHF/RC433 | 400-470MHZ | 35dbm / 3W |
20 | RC315 | 315MHZ | 35dbm / 3W |
Power supply: AC adapter 50 to 60Hz, (110 or 220V AC-12V DC) Car storage battery Charger DC12V | |||
Dimensions: (length ,width, height) 450x 238x 60mm(not Include Antenna) | |||
Packing size: 45*24*6cm Net weight: 7kg Gross weight: 8.0kg | |||
Total power:52W Shielding radius: (2-60) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters |
Application Of mobile phone blockers
Signal Jammer can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
Advantages of wireless signal jammer
1: All in one with 20 chancel design, Customized for special frequency range
2: High output power, Total up to: 52W , jamming up to 60m (Still depends on the strength signal in given area)
3: External Omni-directional antennas all the TX frequency covered down link only
4: With Car storage battery Charger DC12V can be used in car
5: Built-in good cooling system inside, Working non-stopped
6: Can adjust or turn off any single band without influencing the other bands operation
7: Independent module design with frequency source of each channel, easy maintenance (if have any damaged frequency band, replace with new PCB directly, no need for professional equipment such as frequency analyzer)
8: 2-5meters with Infrared Remote Control Turn ON /OFF Power
