Product Details:
|
| Product Name: | Car Anti RCIED Bomb Jammer | Channels: | 10 Bands |
|---|---|---|---|
| Output Power: | 1000w | Jamming Range: | 1km |
| Battery: | Available | Battery Working Time: | 1 Hour |
| Highlight: | DDS Vehicle Convoy Bomb Jammer,1000w Vehicle Convoy Bomb Jammer,Anti RCIED Car Bomb Jammer |
||

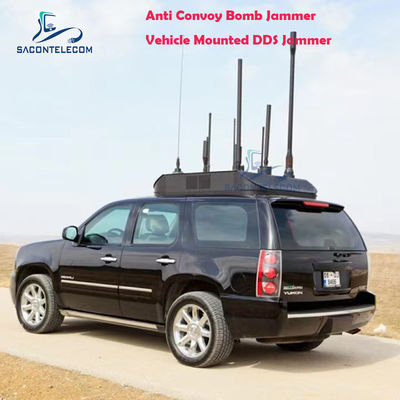

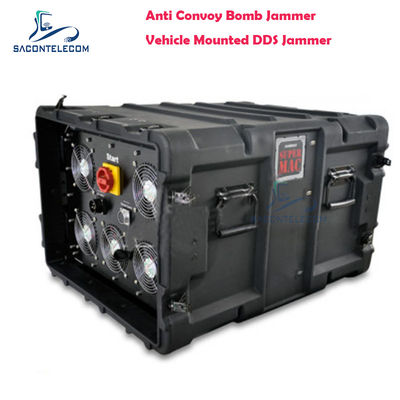

This IED RCIED bomb jammer incorporates Direct Digital Synthesizer Technology (DDS) with RJ485 Protocol. The DDS jamming system can disrupt 20-3000MHz wide band signals. This portable Pelican vehicle mounted convoy bomb jammer SA-vip10-DDS features 10 bands, each with 100w powerful signal output. With an extra battery providing 1 hour of operation, it is ideal for bomb disposal squads, VIP protection, special forces (S.W.A.T.), security forces, bomb squads, anti-terror units, border control units, and checkpoint personnel.
| Channel | Output Port | Frequency Range | Average Output Power |
|---|---|---|---|
| 1 | 27MHz, 35Mhz, 41MHz, 72MHz toys and HM Remote control | 20-100MHz | 100w |
| 2 | VHF Low-power transmitters | 100-300MHz | 100w |
| 3 | Walky-Talky, 315/433MHz Car Remote Control | 300-500MHz | 100w |
| 4 | 4G Low LTE | 758-830MHz | 100w |
| 5 | GSM900 | 925-965MHz | 100w |
| 6 | DCS1800 | 1805-1880MHz | 100w |
| 7 | 3G UMTS | 2110-2170MHz | 100w |
| 8 | 4G LTE & WiMax | 2570-2690MHz | 100w |
| 9 | WiFi 2.4G, Bluetooth 4G LTE | 2300-2500MHz | 100w |
| 10 | 5G LTE | 3400-3800MHz | 50w |
| Channel | Output Port | Frequency Range | Average Output Power |
|---|---|---|---|
| 1 | 27MHz, 35Mhz, 41MHz, 72MHz toys and HM Remote control | 20-100MHz | 100w |
| 2 | VHF Low-power transmitters | 100-300MHz | 100w |
| 3 | Walky-Talky, 315/433MHz Car Remote Control | 300-500MHz | 100w |
| 4 | 4G Low LTE | 725-805MHz | 100w |
| 5 | CDMA 850 | 850-895MHz | 100w |
| 6 | PCS CDMA 1900 | 1920-1990MHz | 100w |
| 7 | 3G UMTS | 2110-2170MHz | 100w |
| 8 | 4G LTE & WiMax | 2500-2700MHz | 100w |
| 9 | WiFi 2.4G, Bluetooth 4G LTE | 2300-2500MHz | 100w |
| 10 | 5G LTE | 600-700MHz | 100w |
Frequency can be customized as per user requirements in 10 bands. Options: GPS L1+ Glonass L1 500-1700MHz, GPS L2 + Glonass L2: 1100-1300MHz, GPS L3+L4, GPS L5: 80W (Can be no Gap from 20-2700MHz).
| Power Supply | AC adapter (AC220V-DC27V or 24V/45 Amp) or External Battery |
| RJ485 Protocol | Can control all 10 modules by one RJ485 connector |
| Main LED Display | Shows all 8 bands/modules status: Frequency, Four Windows setting, Output power, VSWR, Working Voltage, Working current Amp, Temperature |
| Dimension | 626 mm(L)×49.2mm(W)×350mm(H), Pelican 1620 |
| Weight | 53 Kg (approximately) main unit only, excluding antenna & accessories |
| Operating Temperature | -20℃ ~ +60℃ |
| Humidity | 5% ~ 90% |
| External Battery | B-50AH 27V/50AH LiFePo4 Battery |
| Pelican Case | 1440, 30kg Weight |
| Battery Working Time | Approximately 1 hour |
