Product Details:
|
| Product Name: | DDS Convoy Jamming System | Channels: | 11 Bands |
|---|---|---|---|
| Output Power: | 550w | Jamming Range: | 100-800(m) @depends On Signal Strength |
| Jamming Frequencies: | 20-6Ghz | Extra Battery: | Available |
| Highlight: | Vehicle Convoy Bomb Jammer,11 Bands Convoy Bomb Jammer,550w Roof Mounted Jammer |
||

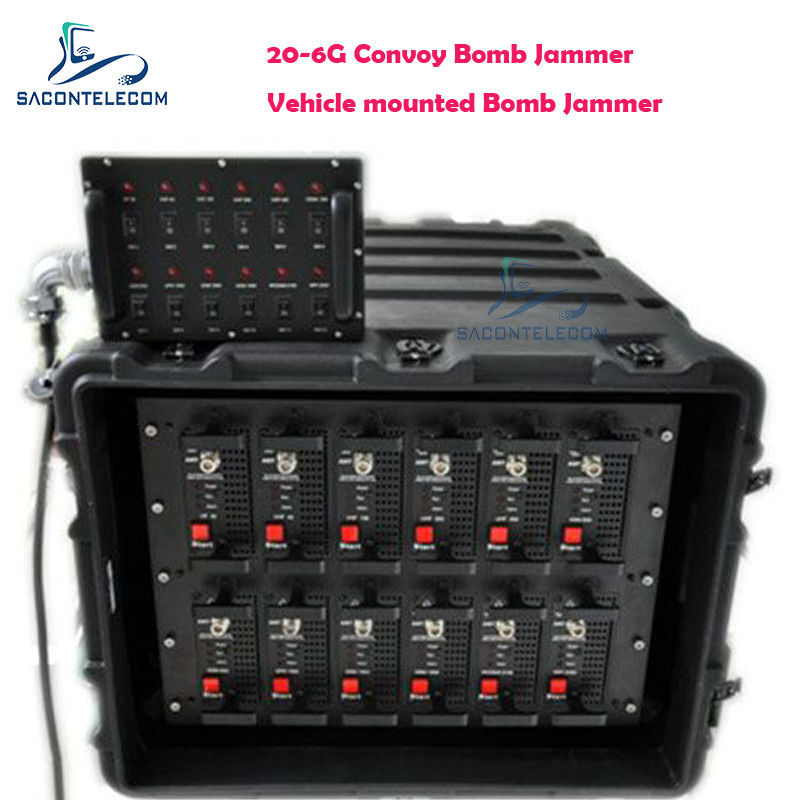

20-6G Full Band Vehicle Convoy Protection Roof Mounted Jammer System
This full band DDS convoy jammer is a vehicle mounted jamming system featuring 11 bands with frequencies from 20MHz to 6GHz. Each band delivers 50w high power signals. The SA-vip11-DDS IED RCIED bomb jammer can be installed in any vehicle type and includes optional extra battery support for approximately 1 hour of operation.
| Channel | Output Port | Frequency Range | Average Output Power |
|---|---|---|---|
| 1 | 27MHz, 35MHz, 41MHz, 72MHz toys and HM Remote Control | 20-100MHz | 50w |
| 2 | VHF Low-power transmitters | 100-400MHz | 50w |
| 3 | Walky-Talky, 315/433MHz Car Remote Control | 400-700MHz | 50w |
| 4 | 4G Low LTE, GSM900, CDMA800 | 700-1000MHz | 50w |
| 5 | GPS | 1000-1200MHz | 50w |
| 6 | 1500 4G, GPS | 1500-1600MHz | 50w |
| 7 | DCS1800, PCS1900, 3G UMTS | 1800-2200MHz | 50w |
| 8 | 4G 2300, WiFi 2.4G, Bluetooth, 4G Wimax | 2300-2700MHz | 50w |
| 9 | 5G LTE | 3500-3800MHz | 50w |
| 10 | WiFi 5.2G, Wireless camera | 5100-5500MHz | 50w |
| 11 | WiFi 5.8G, wireless camera | 5500-5900MHz | 50w |
| Power Supply | AC adapter (AC220V-DC27V or 24V/45 Amp) or External Battery |
| RJ485 Protocol | Controls all 11 modules via single RJ485 connector |
| Main LED Display | Shows all band/module status including frequency, settings, output power, VSWR, voltage, current, and temperature |
| Dimension | 626mm (L) × 49.2mm (W) × 350mm (H), Pelican 1620 |
| Weight | 90 Kg (approximately) - main unit only |
| Operating Temperature | -20℃ to +60℃ |
| Humidity | 5% to 90% |
| External Battery | B-50AH 27V/50AH LiFePo4 Battery |
| Pelican Case | 1440, 30kg Weight |
| Battery Working Time | Approximately 1 hour |
This vehicle bomb jamming system is designed for bomb disposal squads, VIP protection, security forces, anti-terrorism units, border control units, checkpoint personnel, and other law enforcement agencies. It enables more effective law enforcement processes by reducing the chance of information leakage by criminals. Also suitable for important sport events, international summits, and high-security situations.
