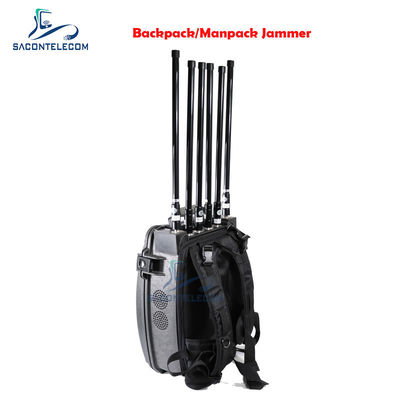

8 Channels Manpack Jammer 20-3000MHz 120Watts 100m Radius Built In Battery
This 8-channel, 120-watt high-power signal jammer (SA-BJ08) is designed for portable operation with built-in battery capability. The backpack jammer can be customized with 5, 6, 7, or 8 bands according to specific requirements, with customizable casing options available.
Product Overview
This powerful manpack jammer blocks 2G, 3G, 4G, 5G cell phone signals, GPS, WiFi, VHF, and UHF communications. Frequencies can be customized upon request. With total output power of 120 watts, the jamming radius ranges from 20-100 meters depending on local signal strength. The built-in battery provides approximately 2 hours of operation, with optional extra batteries available.
Key Features
- Lightweight backpack design for easy transport through difficult terrain
- Portable jammer built in backpack configuration
- Covers wideband frequency range including VHF/UHF radio
- Electronic blanket jamming of control channels for explosive devices
- Provides minimum protective range of 50 meters
- Can be used in manpack or vehicular configuration
- Effective for protection of mobile columns of personnel on foot or in vehicles
Frequency Specifications
| Ports |
Frequencies (MHz) |
| CH1 VHF/UHF |
20 - 500 MHz |
| CH2 GSM900 |
925 - 960 MHz |
| CH3 DCS1800 |
1805 - 1880 MHz |
| CH4 3G 2100 |
2110 - 2170 MHz |
| CH5 4G 800 |
790 - 821 MHz |
| CH6 4G 2600 |
2620 - 2690 MHz |
| CH7 GPS L1 / Glonass L1 |
1500 - 1620 MHz |
| CH8 GPS L2 - L5 |
1170 - 1390 MHz |
| WiFi 2.4G (Optional) |
2400 - 2500 MHz |
| RC 315 (Optional) |
315 MHz |
| RC 433 (Optional) |
433 MHz |
| RC 868 (Optional) |
868 MHz |
Technical Specifications
Total Output Power: 120 Watt
Output Power: Adjustable (jamming range adjustable)
Cover Radius: 50-100m (under Signal level ≤ -85dBm)
Jamming Type: Sweep Jamming
Antenna Type: 5dBi external omni-directional
Power Supply: AC adapter (50 to 60Hz/100 to 240V AC - DC27V)
Working Time: 2 hours (built-in battery)
Electric Field (SAR): Compatible with ICNIRP Standards
Operating Temp: -20 to +50℃
Storage Temp: -40 to +60℃
Humidity: 5%-80%
Product Dimension: 420×330×140mm (excluding antennas)
Weight: Approximately 19kg (including battery, excluding antennas)
Applications
Anti-terror units, bomb squads, VIP protection, protection of convoys, forces, SWAT teams, anti-units, and riot control units.
Product Advantages
- All-in-one design with 20-channel capability, customizable for special frequency ranges
- High output power up to 45W per channel, jamming up to 40m (depending on signal strength)
- External omni-directional antennas covering all TX frequencies (downlink only)
- Car storage battery charger DC12V for vehicle use
- Built-in efficient cooling system for continuous operation
- Individual band adjustment and control without affecting other bands
- Independent module design with frequency source for each channel, enabling easy maintenance
- 2-5 meter infrared remote control for power on/off operation
Packing List
- 1x Signal Jammer
- 1x Battery Charger
- 1x Manpack Bag
- 8x Antennas
