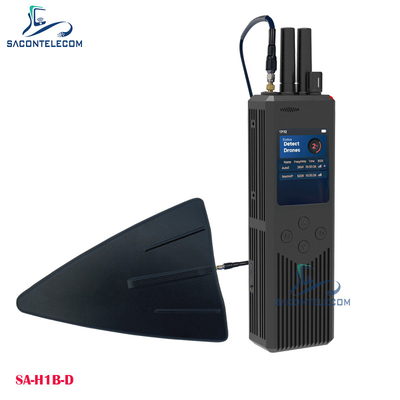

Handheld UAV detector, used for UAV detection, identification and direction finding. Based on spectrum perception and artificial
intelligencetechnology, the remote control and video transmission of UAV are identified and classified.
The equipment features include: direction finding of UAV; kinds of drone; long detection distance, low false alarm rate, screen
display; small volume, light weight, handheld or working with jamming counter gun, suitable for patrol monitoring in office
buildings, industrial park, border and coastal defense place.
Product composition:

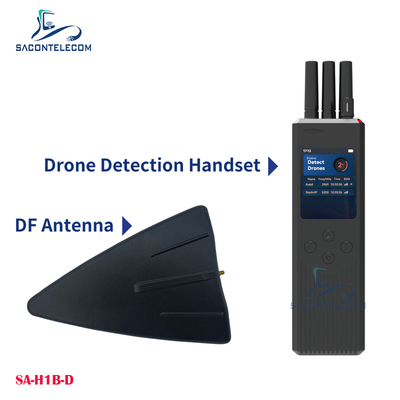

The product is mainly composed of detection host, direction finding antenna, charger and protective box, as shown in the following table:
Table 1 List of product hardware composition
1: Full identification: it can show the sorties, model, brand and working frequency of drones detected in real time;
2 : Target direction finding: the equipment is equipped with direction finding antenna and enters the direction finding mode,
which can realize the detection direction finding of the target UAV;
3: A variety of alarm methods: support light, sound, sound and light and other alarm forms, and the urgency of the alarm bell
and the flashing frequency of the lights can be adjustable;
4: Support volume adjustment: volume adjustment function, the user can adjust the appropriate volume according to the needs;
5: Support brightness adjustment: the screen display brightness can be adjusted in multiple files, and the user can set the
appropriate screen display brightness according to the requirements;
6: One-key language switch: the device can switch the device display language with one key (Chinese and English switch);
7: Reset: the equipment related parameters and configuration can be restored to the factory state;
8: Historical detection data query: the device can view the UAV information detected by the device, including the aircraft type,
frequency and its corresponding occurrence time;
9: Signal intensity display: the device can show the signal intensity of the detected UAV.
Advantage:
1. Passive detection: do not actively transmit electromagnetic signals, will not interfere with the normal use of surrounding communication equipment, environmentally friendly;
2. Small and portable: various functions; working alone or assembled on jamming gun for cooperative operation;
3. Frequency can be expanded: different frequency antenna can be configured as needed, antenna interface using the general
standard, easy to remove and replace;
4. Fast charging: charging in the form of Type-C interface, which can be used quickly, compatible with the charging interface of mainstream mobile phones in the market;
5. Strong environmental adaptability: high protection level, strong resistance to fall, support for normal detection and identification in bad weather environment;
6. Real-time screen display: use screen to show the status of the target UAV in real time.
Performance indicators:
Table 2 Product performance indicators- omnidirectional detection mode:
Table 4. Mechanical parameters of the product
Table 4. Electrical characteristics of the products
Table 5 : Environmental Adaptability
Table 6 Touch screen parameters
