Product Details:
|
| Product Name: | Outdoor Waterproof Jammer | Output Power: | 400w |
|---|---|---|---|
| Jamming Range: | 20-500(m) | Jamming Direction: | Omni-directional Or Directional |
| Color: | White And Bule | Waterproof Level: | IP65 |
| High Light: | prison jammer,remote control signal jammer,Prison Cell Phone Jammers IP65 |
||

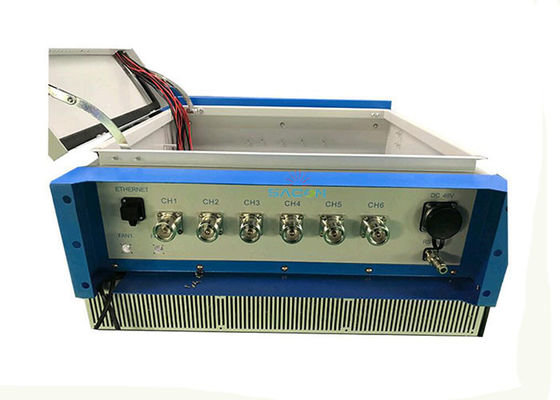

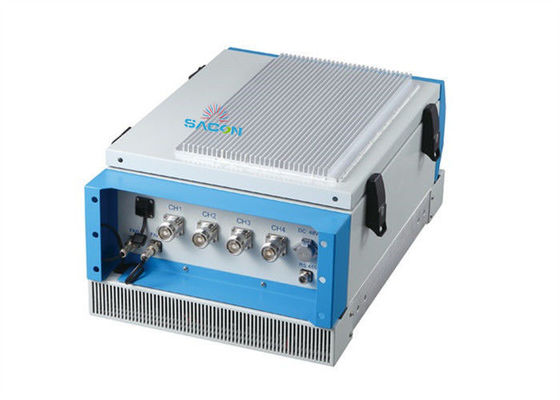

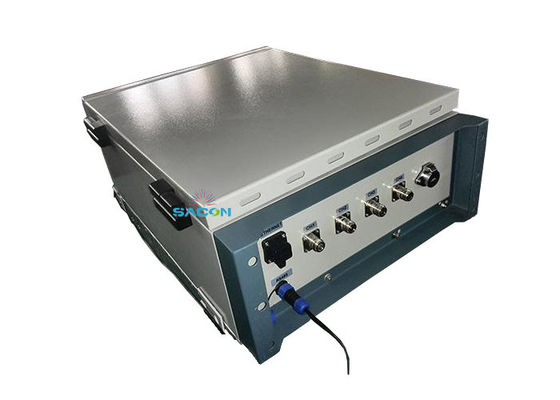

IP65 Outdoor Prison Cell Phone Jammers High Power 400w With Monitoring Software
Description:
1. Wireless Prison Jammer is developped base on our outdoor signal repteater which has been used as outdoor signal base stations for many years. Incorporating an efficient "smart active" cooling system with incoming air filters, which enables the system to operate 365 days/24 Hours/7days continuously even in hot weather. Its secure design ensures that the prison inmates and unauthorized prison personnel cannot tamper with the safe and continuous operation of the system.
2. Continuous operation, even in hot climates, with no time limit.
3. Heat sink designing combing with the fans to make system in a cooling status.
4. (VSWR) circuit protection to ensure system will not burn out in case of antenna short circuiting or disconnection.
5. Adjust output power of the jamming modules by computer.
Specifications:
| Output Channel | Frequency | Output power | Jamming range |
| CDMA800 | 869-894MHz | 100 Watts | 20-500 meters |
| GSM900 | 925-960MHz | 100 Watts | 20-500 meters |
| GSM1800 | 1805-1880MHz | 100 Watts | 20-500 meters |
| WCDMA | 2110-2170MHz | 100 Watts | 20-500 meters |
| Optional |
Frequency of each band can be customized Jamming monitoring system for option UPS battery for option |
||
| In-band Flatness | 2dB | ||
| Internal Modulation | Analog or Direct Digital Synthesis (DDS) | ||
|
Remote Control Interface |
RJ45 | ||
| Warranty | One year from delivery date | ||
| Power supply | 220VAC/48VDC (optional) | ||
| Packing list | Mainframe*1, Dual Band Directional Panel Antenna*2-3 | ||
| Applications | Hospital, Theaters, Church, Prison, etc. | ||
Jammer Monitoring Software Platform Introduction
1. The Jammer Monitoring Software Platform allows users to monitor and control all Jammers through Internet, and all real-time alarm information feedback to the users immediately. So that users can stay at office to have all information of jammers working status, and adjust the Jammers to suit the operating environment of the installed area, greatly reduce the customer's maintenance workload.
2. The platform enables real-time display of all Jammers' output power, operating temperature, alarm information (including over-temperature alarm, under-power alarms, VSWR alarms, Door open alarms, etc.), and all information is specific to each Channel, real-effective, convenient and quick.
3. This platform also allows you to change the login page photo and upload your own logo by yourself.
Applications:
1. It can be applied at prisons, meeting rooms, conference rooms, museums, galleries, theaters, concert
halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more.
2. For some locations of special purpose such as hospitals, gas stations and more, Please do field test first
to make sure no interference happened to the normal operation of their equipment and instrument.
Accessories of the Cell Phone Signal Jammer
1. 1 x English User Manual (If you need, we will send the scan file via email, it will avoid some possible
custom issue)
2. AC Power Charger (we will send correct standard power charger which according customer's shipping address)
3. Mounting Screws
4. Band Specific Antennas x 4
