Product Details:
|
Product Name: | Waterproof Signal Jammer | Output Power: | 600W |
---|---|---|---|
Jamming Range: | 50-500M @ According To Signal Density Of Mobile Network | Application: | Prisons, Detention Houses, Military Bases, Large Oil Fields |
Weight: | 25kg | Size: | 460×350×240(mm) |
Highlight: | prison jammer,remote control signal jammer |

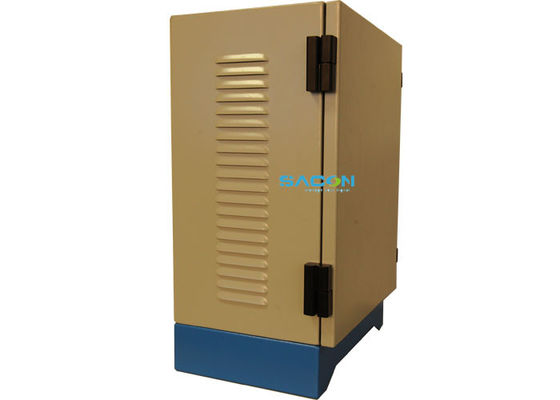

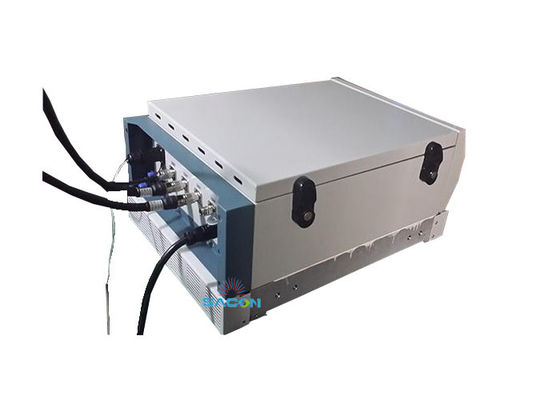

Outdoor Prison Cell Phone Jammers 600W High Power Waterproof Anti Signal Jammer
Description:
This jammer is a waterproof model. Using high quality waterproof case, ensure stability of the equipment ,even work in bad weather conditions.
Equipped with special high gain directional planar antenna or fiberglass omni-directional whip antenna, the jammer can effective block CDMA/GSM/DCS /3G/ LTE/WIMAX / Wifi /GPS.
Use the overseas advanced chip and technology . With independent modular design, it keeps high operation efficiency, and avoid mutual interference.
100 watts per band, total RF power 600 watts, also with power adjustable switches to
control the radius range. It is suitable for prisons, detention houses, military bases, large oil fields and all other outdoor places where need the signal to block.
Specifications A:
Output interface | Shield band of frequency | RF output powe | Output power/channel |
CDMA | 851 - 894 MHz | 50dBm | 20dBm/30KHz(min) |
GSM | 925 -960MHz | 50dBm | 20dBm/30KHz(min) |
DCS/PCS | 1805 - 1990 MHz | 50dBm | 16.1dBm/30KHz(min) |
3G | 2110 - 2170 MHz | 50dBm | 19dBm/30KHz(min) |
4G | 2620 - 2690 MHZ | 50dBm | 14.5dBm/30KHz(min) |
Wifi | 2400-2483 MHz | 50dBm | |
Power supply: AC220V Shielding area: 50-500M @ according to signal density of mobile network | |||
Power consumption: 1300W Weight:25Kg Size(length × wind × high):460×350×240mm | |||
Humidity: 30%-95% Running Temperature: -20 to +55 Celsius Degree |
Specifications B:
Output interface | Shield band of frequency | RF output powe | Output power/channel |
CDMA 850 | 851 - 894 MHz | 50dBm | 20dBm/30KHz(min) |
PCS 1900 | 1930 -1990MHz | 50dBm | 20dBm/30KHz(min) |
3G 2100 | 2110 - 2170 MHz | 50dBm | 16.1dBm/30KHz(min) |
4G LTE | 725 - 770 MHz | 50dBm | 19dBm/30KHz(min) |
4G Wimax | 2345 - 2400 MHZ | 50dBm | 14.5dBm/30KHz(min) |
Wifi or GPS | 2400-2483 MHz or 1570-1580MHz | 50dBm |
Specifications C:
Output interface | Shield band of frequency | RF output powe | Output power/channel |
GSM 900 | 925 - 960 MHz | 50dBm | 20dBm/30KHz(min) |
GSM 1800 | 1805 -1880MHz | 50dBm | 20dBm/30KHz(min) |
3G 2100 | 2110 - 2170 MHz | 50dBm | 16.1dBm/30KHz(min) |
4G LTE | 790 - 825 MHz | 50dBm | 19dBm/30KHz(min) |
4G 2600 | 2620 - 2690 MHZ | 50dBm | 14.5dBm/30KHz(min) |
Wifi or GPS | 2400-2483 MHz or 1570-1580MHz | 50dBm |
Competitive Advantage:
1. Using high quality waterproof case, ensure stability of the equipment even work in bad weather
conditions.
2.with good cooling system, can operate for long time.
3.Using digital interference technology, overall effective suppression of target spectrum.
4.independent module design. Each module can separate switch,disassemble. So it is convenient for
maintenance and update.
5. Perfect Alarm System, fully protected circuit in case of disconnection of antennas.
Applications:
Prison
Military camp
detention houses
Oil fields.
Museums
Drug Enforcement
Secret Services
