Product Details:
|
| Product Name: | 12 Antennas Signal Jammer | Channels: | 12 |
|---|---|---|---|
| Power Supply: | AC110-240V, DC 12V | Output Power: | 30w |
| Jamming Range: | (5 - 50)meters , Depend On Local Signal Strength | Weight: | 6kg |
| Highlight: | prison jammer,cell phone jamming devices |
||

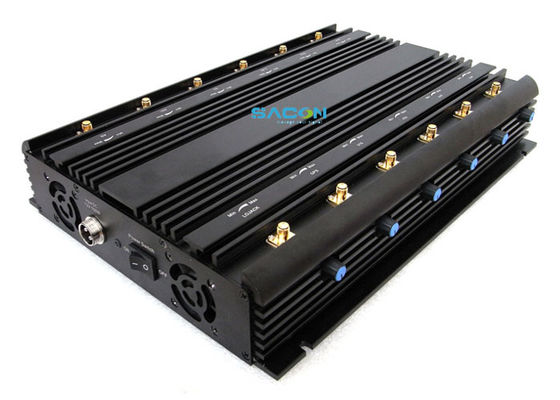

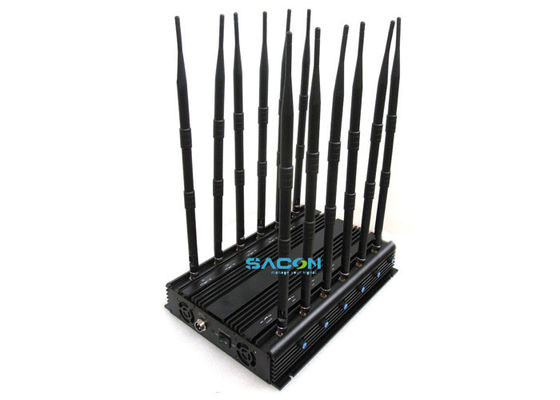

30w Powerful Wireless Prison Cell Phone Jammers 12 Antennas Block 315Mhz 433Mhz
Features:
1. Four Cooling fans design make the device work in a good cooling environment.

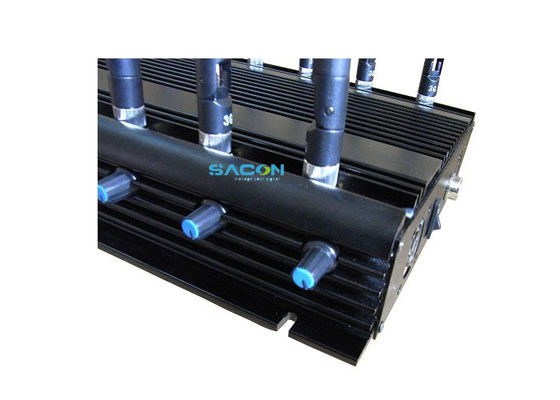

2. The output power of each band can be adjusted.
3. Working 24 hours continuously.
4. With the current of car and car adaptor design,make the jammer can be used on the vehicle directly.
5. Stable capability, cost-effective choice
6. Total output power: 30W
7. 12 channels with different frequency range,or customize other cellular standard in the world.
Such as Walkie Talkie,450MHz,GPRS,iDEN,GPS, Galileo,Compass,Glonass,UMTS,WiFi,AWS,LTE 4G.
Advantages:
1. Good cooling system with cooling fan inside.
2. Can adjust or turn off any single band without influencing the other bands operation.
3. Can 24 hours Operation.
4. Stable capability.
5. Could be used in car directly,with car charger (Option) .
Specification:
| Output port | Frequency | Average output power | Output power |
| CDMA800 | 851-894MHz | 35dBm | 3W |
| GSM900 | 925-960MHz | 35dBm | 3W |
|
DCS1800/ PCS1900
|
1805-1880MHz/ 1930-1990MHz |
33dBm | 2W |
| 3G | 2110-2170MHz | 33dBm | 2W |
| GPS | 1570-1580MHz | 32dBm | 2W |
| WIFI | 2400-2500MHz | 32dBm | 2W |
| 4G LTE 800 | 791-821MHz | 35dBm | 3W |
| 4G LTE700(Optional) | 725-770MHz | 35dBm | 3W |
| 4G LTE2600 | 2620-2690MHz | 33dBm | 2W |
| 4G LTE 2300(Optional) | 2300-2400MHz | 33dBm | 2W |
| VHF | 135-174MHz | 33dBm | 2W |
| UHF | 400-470MHz | 33dBm | 2W |
| LOJACK | 170MHz - 175MHz | 33dBm | 2W |
| RF | 433MHz | 33dBm | 2W |
| RF(Optional) | 315MHz | 33dBm | 2W |
| Total Output Power | 25-30 Watt | ||
| Power Supply | AC110-240V,DC 12V | ||
| Power consumption | 90 Watt | ||
| Weight | 6.0kg | ||
| Size | 330*238*60mm | ||
| Running temperature | -10℃ to +55℃ | ||
| Humidity | 5% - 95% | ||
| Complete accessories | Twelve omni-directional antennas, Power cable, Fixed Mount | ||
| Jamming range(Radius) | 5 - 50meters , depend on local signal strength | ||
Package Item:
12 Antenna Jammer Kit *1pc
Omni Antenna *12pcs
Power Adapter *1pc
Power Cable *1pc
Car Charger *1pc
Application Area:
1. It can be applied at meeting rooms, conference rooms, museums, galleries, theaters, concert halls,
churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more.
2. For some locations of special purpose such as hospitals, gas stations and more, Please do field
test first to make sure no interference happened to the normal operation of their equipment and
instrument.
Notice:
1. Before linking all the antenna, power supply shall not be switched on at first. Non taking off antenna when
the mainframe is in the working condition.
2. The jammer shall be installed in the position with good ventilation. And large-scale things shall be
avoided to ensure to the shielding effect.
3. When use the jammer outdoors, preventing water shall be taken into consideration.
4. Antenna shall be used vertical to the ground.
5. If you used in car,Please make sure the car output adapter is DC12V, this machine only can be working
on DC12V.
