Product Details:
|
| Product Name: | 250w Prison Jammer | Channels: | 5 |
|---|---|---|---|
| Jamming Range: | Up To 300m | Weight: | 25kg |
| Antennas: | External Omni-directional Antennas Or Directional Panel Antennas | Another Name: | High Power Prison Jammer |
| High Light: | high power cell phone jammer,radio frequency jamming devices |
||

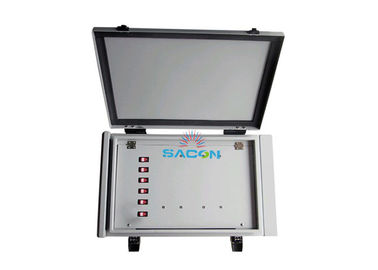

250w WiFi 4G High Power Signal Jammer Radius Up To 300m With AC100-240V DC27V
The jammer was developed specially for prisons and other large sensitive locations such as military or governmental compounds. This high power system has been approved and installed by Prison Authorities in very large prison facilities in several Countries world wide.
Advantages:
1. Jammer Unit housing unit is waterproof and heat sink design.
2. Good cooling system with cooling fan inside.
3. Each bands can adjust RF output power;
4. Have switch to turn on or off each bands without influencing the other bands operation;
5. VSWR circuit protection to ensure system will not burn out should there be antenna short circuiting or disconnection;
6. Work non-stopped;
Specifications:
Frequency: CDMA 800: 850 to 894MHz /GSM 900: 925 to 960MHz /GSM 1800: 1, 805 to 1, 880MHz /GSM 1900: 1, 920 to 1, 990MHz (PCS)/3G: 2, 110 to 2, 170MHz /Wi-Fi: 2, 400 to 2, 500MHz /GPSL1: 1570-1580MHz/4GLTE: 700-800MHz/4GWIMAX: 2620-2690MHz/CDMA450: 450-470MHz
You can select four or five of above frequency bands you need in a jammer
Total output power: 250W
Jamming range: Up to300m, the jamming radius still depends on the strength signal in given area
External Omni-directional antennas or directional panel antennas, all the TX frequency covered down link only
Power supply: 50 to 60Hz, 100 to 240V AC
With AC adapter (AC100-240V-DC27V)
Dimension: 520(l) x 230(W) x 190mm(H)
Full set weight: About 25kg(Used of external Omni-directional antennas)
Technical Specification:
| Output interface | Description | Shield band of frequency | RF output power | |
| CH1 | CDMA800 | 851-894 MHz | 47dBm | |
| CH2 | WCDMA 3G | 2110-2170 MHz | 47dBm | |
| CH3 | GSM900 | 925-960 MHz | 47 dBm | |
| CH4 |
GSM1800 /PCS 1900 |
1805-1880 MHz /1930-1990 MHz |
47dBm | |
| CH5 | WIFI, 2.4G | 2400-2485 MHz | 47dBm | |
| LTE 2600(Optional) | 2620-2690MHz | 47dBm | ||
| GPS L1(Optional) | 1570-1580 MHz | 47dBm | ||
| LTE800(Optional) | 790-821 MHz | 47 dBm | ||
| Power supply: AC220V, DC 28V | ||||
| Total Output Power: 250Watt | ||||
| Power consumption: 800Watt | ||||
|
Weight: 30Kg Size(length × wind × high):520×300×190mm |
||||
|
Humidity: 30%-95% Running Temperature: -20℃ to +55℃ |
||||
| Jammer Module Number | 5 | |||
| Cooling System | Systematic Smart Cooling System | |||
| System Protection | VSWR Protection | |||
| Jamming Source | Frequency Scan Technology | |||
| Antenna Type | High Gain Directional Panel Antennas | |||
| Jumper | 1/2 superflexible coaxial cable | |||
| Jamming range: 50-300m according to signal density of mobile network | ||||
Applications:
1. prison
2. Military camp
3. detention houses
4. oil fields.
5. Museums
6. Drug Enforcement
7. Secret Services
