Product Details:
|
| Product Name: | Prison Jamming System | Jamming Frequencies: | 2G 3G 4G 5G WiFi GPS VHF UHF Lojack |
|---|---|---|---|
| Applications: | School / Examination Room, Prison ,office And Other Places | Jamming Radius: | 20~40(m) @depends On Signal Strength |
| Device Size: | 321mm*185mm*80mm | Weight: | 4.5kgs |
| Highlight: | 100w High Power Signal Jammer,DCS High Power Signal Jammer,10 Channels VHF UHF Jammer |
||

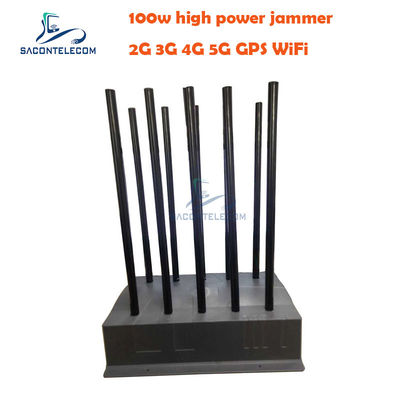

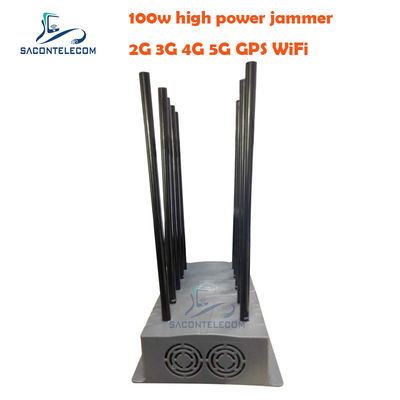

Our SA-HJ10 mobile signal jammer is a high-power prison jammer designed for use in meeting rooms, libraries, theaters, classrooms, prisons, and similar environments. This vehicle shield jammer features 10 channels with 10 high-gain omni antennas. Each band delivers 10w of power, totaling 100 watts, with a jamming radius of up to 40 meters.
The indoor cell phone jammer effectively blocks cellular phone signals including GSM, DCS, PCS, CDMA, 3G, 4G, 5G, WiFi 2.4G, 5.8G, GPS Lojack, VHF, UHF, and Walkie Talkie frequencies at 315MHz, 433MHz, and 868MHz.
| Host Size | 321×185×80 mm (excluding mounting ears) |
| Antenna Size | 352×19×19 mm (10 average length) |
| Total Weight | 4.5 kg |
| Ambient Temperature | -40ºC to 55ºC |
| Relative Humidity | 35% to 85% |
| Power Consumption | ≤240W |
| Power Input | AC 160V to 240V |
| Power Output | DC 24V/12A |
| Installation Height | 1.8m to 2.5m |
| Parameter Name | Parameter Details |
|---|---|
| Model | SA-HJ10 |
| Jamming Frequencies |
CDMA: 850-894MHz 10W GSM: 925-960MHz 10W DCS/PCS: 1805-1990MHz 10W 3G/4G: 2110-2170MHz 10W VHF: 135-174MHz or 315MHz / 433MHz 10W UHF: 400-470MHz or 420-480MHz or 450-470MHz 10W 5G: 3400-3600MHz 10W 5G: 4800-5000MHz 10W WiFi: 2300-2400MHz 10W 4G: 2500-2690MHz 10W |
| Jamming Radius | Up to 20-40 meters |
| Power | 100w |
| Voltage | AC100-240V, DC24V |
| Operating Temperature | -40ºC to +55ºC |
| Operating Humidity | 5% to 80% |
| Device Size | 321mm×185mm×80mm |
| Device Weight | 4500g |
