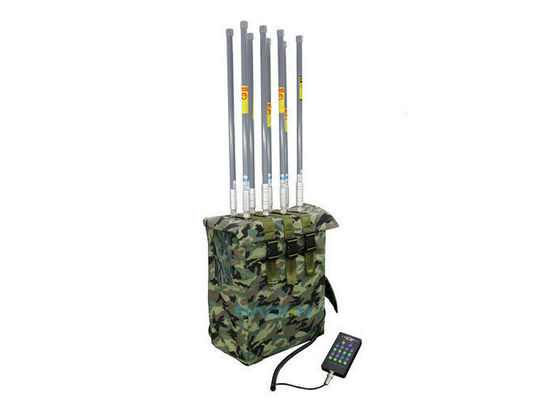

Product Details:
|
| Product Name: | Backpack Signal Jammer | Application: | Backpack |
|---|---|---|---|
| Working Frequency: | Camera 2.4G | Jamming Range: | About 20 To 200 Meters, Depend On Local Signals Strength. |
| Work Time: | 2 Hours | Weight: | 30kg |
| Highlight: | backpack jammer,drone frequency blocker |
||
SA-008M-A is a specially designed wide-band portable jamming system for RCIED disposal. This briefcase jammer provides protection for VIPs and groups by disabling radio-controlled explosive detonators in dangerous areas and preventing information leakage during confidential communications.
The system transmits RF interference to create a "Radio Frequency Protected Zone" that prevents remote-controlled bomb activation with sufficient jamming safety radius, saving lives and preventing serious injuries. Deployed for force protection, dignitary security, checkpoints, border crossings, embassies, and government facilities.
| Output Interface | Description | Shield Band Frequency | RF Output Power (±1dBm) |
|---|---|---|---|
| CH1 | LOJACK | 168-178 MHz | 41.7dBm |
| CH2 | WCDMA 3G | 2110-2170 MHz | 41.7dBm |
| CH3 | GSM900 | 925-960 MHz | 41.7dBm |
| CH4 | GSM1800 / PCS 1900 | 1805-1880 MHz / 1930-1990 MHz | 41.7dBm |
| CH5 | WiFi, 2.4G | 2400-2485 MHz | 41.7dBm |
| CH6 | LTE800 | 790-821 MHz | 41.7dBm |
| CH7 | GPS L1 | 1570-1580 MHz | 41.7dBm |
| CH8 | LTE 2600 | 2620-2690 MHz | 41.7dBm |
Power Supply: AC220V, DC24V
Total Output Power: 400 Watt
Power Consumption: 1200 Watt
Weight: 30 Kg
Dimensions: 350 × 200 × 470 mm (L × W × H)
Humidity: 30%-95%
Operating Temperature: -20℃ to +55℃
Jammer Modules: 8
Cooling System: Systematic Smart Cooling System
System Protection: VSWR, Over-voltage
Jamming Source: Frequency Scan Technology
Antenna Type: High Gain Omni-directional Antennas
Number of Antennas: 8
Internal Battery: 24V DC, 2 hours runtime
Jamming Range: 20-200m (depending on mobile network signal density)
Contact Person: Ms. Jena
Tel: +86-15818561923
