Product Details:
|
| Product Name: | 90watts Effective Manpack Jammer | Application: | Forces, Anti Units, Riot Control Units |
|---|---|---|---|
| Shell: | Backpack Style | Jamming Range: | 20 - 100meters, Depend On Signal Strength |
| Output Power: | 90w | Weight: | 15kg |
| Highlight: | backpack jammer,high frequency jammer |
||

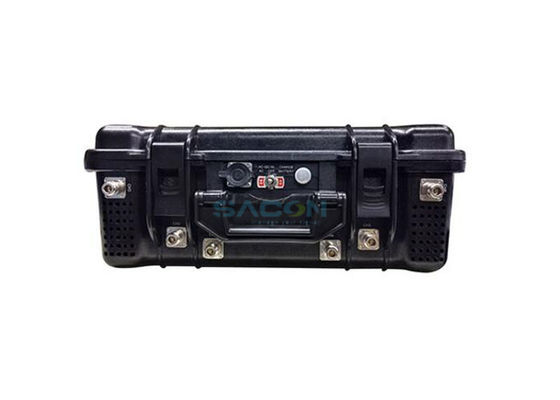

The SA-006M-A is a state-of-the-art efficient cellular/satellite mobile phone jammer designed for bomb disposal security applications, troop marching, and field operations. This portable IED jammer is built into a backpack for deployment in hostile territory, providing defensive RF jamming of Radio Controlled Improvised Explosive Devices (RCIEDs) used by terrorists, insurgents, and criminals.
| Output Interface | Description | Shield Band Frequency | RF Output Power (±1dBm) |
|---|---|---|---|
| Optional | LOJACK | 168-178 MHz | 41.7dBm |
| CH2 | WCDMA 3G | 2110-2170 MHz | 41.7dBm |
| CH3 | GSM900 | 925-960 MHz | 41.7dBm |
| CH4 | GSM1800 / PCS 1900 | 1805-1880 MHz / 1930-1990 MHz | 41.7dBm |
| CH5 | WIFI, 2.4G | 2400-2485 MHz | 41.7dBm |
| Optional | LTE800 | 790-821 MHz | 41.7dBm |
| CH1 | GPS L1 | 1570-1580 MHz | 41.7dBm |
| CH6 | LTE 2600 | 2620-2690 MHz | 41.7dBm |
Power Supply: AC220V, DC24V
Total Output Power: 90Watt
Power Consumption: 300Watt
Weight: 15Kg
Size (L×W×H): 320×120×430mm
Humidity: 30%-95%
Operating Temperature: -20℃ to +55℃
Jammer Module Number: 6
Cooling System: Systematic Smart Cooling System
System Protection: VSWR, Over-voltage
Jamming Source: Frequency Scan Technology
Antenna Type: High Gain Omni-directional Antennas
Number of Antennas: 6
Internal Battery: 24V DC, 2 hours runtime
Jamming Range: 20-120m (depending on mobile network signal density)
