Product Details:
|
| Product Name: | Anti Drone Jammer Module | Frequency: | 2380-2485mhz |
|---|---|---|---|
| Application: | Anti Drone Jammer | Output Power: | 50dBm |
| Size: | 170*74*21.5(26.5) Mm (Without Connector) | Weight: | 0.45± 0.1kg |
| Highlight: | mobile phone signal repeater,cell signal repeater |
||

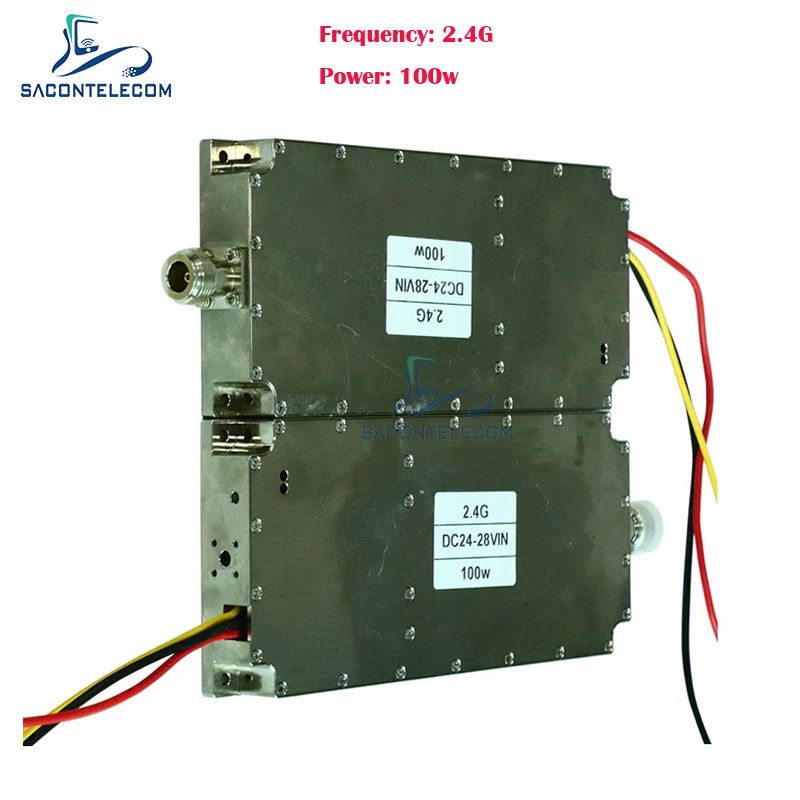

100w 2.4G anti drone jammer module FPV jammer module China manufacturer
Descriptions:
Sacontelecom can supply all kinds of RF jammer modules for manpack drone jammer, gun drone jammer, backpack UAV drone jammer, GPS stationary jammer, wifi jammers and other cell phone signal jammers. PA power has 10w 20w 30w 50w and 100w. Frequencies can be customized. Most popular frequencies like: 433mhz PA, 900mhz PA, 1.2G PA, 1.5G PA, 1.4G PA, GPS PA, 5.2G PA, 5.5G PA and 5.8G PA. We can also customize all FPVs jammer module. Welcome to enquiry details!
Features:
1. High quality, competitive price.
2. Fast delivery.
3. All frequencies can be customized.
4. Power can be customized.
5. Good after-sale service.
6. Sample is available.
| Channel | Working frequency | Output power(±1dBm) | |
| CH1 | 2.4G | 2380-2485mhz | 50dBm |
| We can Customzied the frequency you need | |||
| Connector Type | Female -SMA / N Type | ||
| Signal Source | VCO | ||
| Working Current |
10 a±1.0 |
||
| Vswr | ≦1.5 | ||
| Output Power | 100w | ||
| Working Voltage | DC24-32V | ||
| Main engine weight | 0.45± 0.1kg | ||
| Size | 170*74*21.5(26.5) mm (Without Connector) | ||
| Humidity | 30%-95% | ||
| Running temperature | ′-20ºC ~ 80ºC |
