Product Details:
|
| Product Name: | Anti Drone Jammer Module | Frequency: | 2380-2485mhz |
|---|---|---|---|
| Application: | Anti Drone Jammer | Output Power: | 50dBm |
| Size: | 170*74*21.5(26.5) Mm (Without Connector) | Weight: | 0.45± 0.1kg |
| Highlight: | mobile phone signal repeater,cell signal repeater |
||

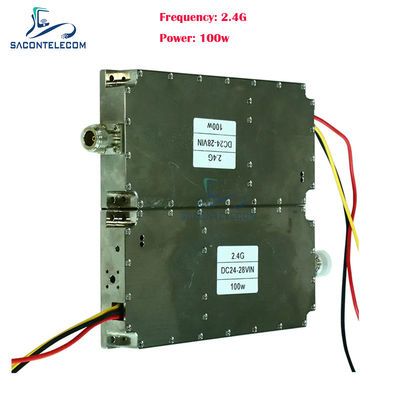

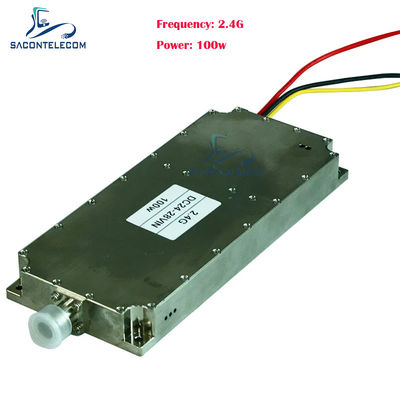

100W 2.4G Anti-Drone Jammer Module FPV Jammer Module - China Manufacturer
Sacontelecom supplies various RF jammer modules for multiple applications including manpack drone jammers, gun drone jammers, backpack UAV drone jammers, GPS stationary jammers, WiFi jammers, and other cell phone signal jammers. Available PA power options include 10W, 20W, 30W, 50W, and 100W. Frequencies can be customized to meet specific requirements.
| Parameter | Specification |
|---|---|
| Channel | CH1 |
| Working Frequency | 2.4G (2380-2485MHz) |
| Output Power | 50dBm (±1dBm) |
| Connector Type | Female - SMA / N Type |
| Signal Source | VCO |
| Working Current | 10A ±1.0 |
| VSWR | ≤1.5 |
| Output Power | 100W |
| Working Voltage | DC 24-32V |
| Weight | 0.45 ± 0.1kg |
| Size | 170 × 74 × 21.5(26.5) mm (Without Connector) |
| Humidity | 30% - 95% |
| Operating Temperature | -20°C to 80°C |
