Product Details:
|
| Product Name: | Mobile Phone Blocker | Antenna: | 18pcs Omni Antenna |
|---|---|---|---|
| Jamming Frequency: | Wi-Fi2.4G/5GHz GPS LOJACK, RF 315 MHz 433MHz , VHF UHF Walkie-Talkie & Wireless Headset/Microphone Signals | Jamming Range: | 2-40 Meters Depends On The Signal Strength |
| Dimensions: | 460x 238x 60mm(not Include Antenna) | Weight: | 8.0kg |
| High Light: | remote control signal jammer,cell phone jamming devices |
||

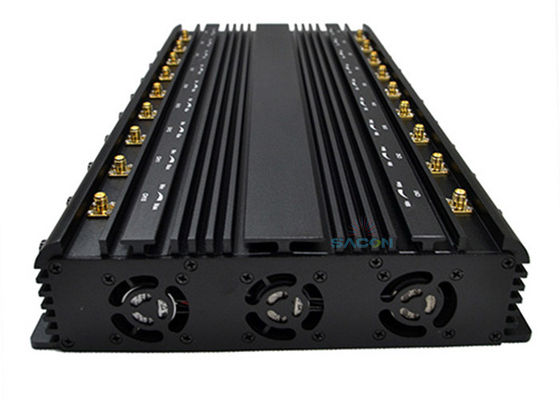

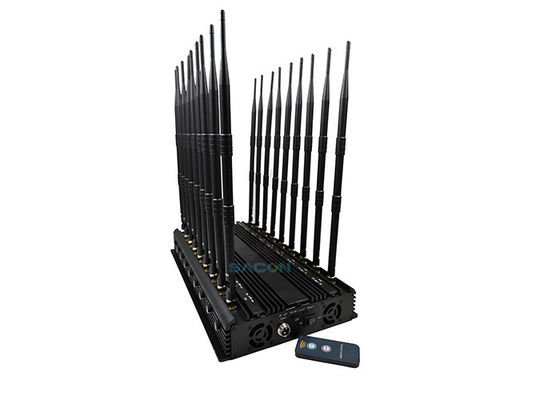

42W High Power Prison Cell Phone Jammers 18 Channels Block 2G 3G 4G 5G 2.4G
Basic Specifications
Jam Signal Type:
1: SA-018A: Full Bands Mobile Phone 4G/3G/2G +WiFi2.4G+ GPSL1-L5 +Walkie-Talkie UHF/VHF
2: SA-018B: Full Bands Cellphone 4G/3G/2G +WiFi2.4G+ GPSL1-L5 + Full Bands Walkie-Talkie 135-500MHZ
3: SA-018C: Full Bands Mobile Phone 4G/3G/2G +WiFi2.4G/5GHZ + GPSL1-L5 +Walkie-Talkie UHF/VHF
Output Power: Total 42W,1-3W each band
Jam Radius: 2-40meters
Power Supply: AC110 or 220V to DC12V
Cooling System: High efficiency aluminum alloy radiator, Build-in 5 cooling fan
Working Time: Not-stop Working
Product Size: 460x 238x 60 mm(not Include Antenna)
Product Weight: appr.7.5kg
OEM Customized Service
Customized for special frequency band , Wi-Fi5.8G 3.6GHz, etc
Silkscreen OEM service can be offered
Advantages:
| Full bands 18 chancel design, Customized for special frequency band.
| High output power, Total up to: 42W , jamming up to 40m (Still depends on the strength signal in given area).
| External Omni-directional antennas all the TX frequency covered down link only.
| With Car storage battery Charger DC12V can be used in car.
| Built-in good cooling system inside, Working non-stopped.
| Can adjust or turn off any single band without influencing the other bands operation.
| 2-5meters with Infrared Remote Control Turn ON /OFF Power.
Specifications:
| Key technical specifications: SA-018A | |||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | CDMA | 850-894MHz | 35dbm / 3W |
| 2 | GSM | 925-960MHZ | 35dbm / 3W |
| 3 | DCS | 1805-1880MHZ | 33dbm / 2W |
| 4 | PCS | 1900-1990MHz | 33dbm / 2W |
| 5 | 3G | 2110-2170MHZ | 33dbm / 2W |
| 6 | WIFI 2.4G | 2400-2500MHZ | 30dbm / 1W |
| 7 | 4G1 LTE | 700-805 or 790-826MHz | 35dbm / 3W |
| 8 | 4G LTE | 2500-2690MHZ | 30dbm / 1W |
| 9 | 4G2 1700 | 1710-1780MHz | 33dbm / 2W |
| 10 | 4GH 2300 | 2300-2400MHZ | 30dbm / 1W |
| 11 | 433 (car remote control) | 433MHZ | 35dbm / 3W |
| 12 | 315 (car remote control) | 315MHZ | 35dbm / 3W |
| 13 | VHF | 135-175Mhz | 35dbm / 3W |
| 14 | UHF | 400-470MHZ | 35dbm / 3W |
| 15 | LOJACK | 167-175MHZ | 35dbm / 3W |
| 16 | GPSL1 | 1570-1580Mhz | 33dbm / 2W |
| 17 | GPSL2+L5 | 1170-1280MHZ | 33dbm / 2W |
| 18 | GPSL3+L4 | 1370-1390MHZ | 33dbm / 2W |
| Power supply: AC adapter 50 to 60Hz, (110 or 220V AC-12V DC) Car storage battery Charger DC12V | |||
| Dimensions: (length ,width, height) 460x 238x 60mm(not Include Antenna) | |||
| Packing size: 55*44*15cm Net weight: 7kg Gross weight: 8.0kg | |||
| Total power:42W Shielding radius: (2-40) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters |
|||
| Warranty: one year from delivery date | |||
| Key technical specifications: SA-018B | |||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | CDMA | 850-894MHz | 35dbm / 3W |
| 2 | GSM | 925-960MHZ | 35dbm / 3W |
| 3 | DCS | 1805-1880MHZ | 33dbm / 2W |
| 4 | PCS | 1900-1990MHz | 33dbm / 2W |
| 5 | 3G | 2110-2170MHZ | 33dbm / 2W |
| 6 | WIFI 2.4G | 2400-2500MHZ | 30dbm / 1W |
| 7 | 4G1 LTE | 700-805 or 790-826MHz | 30dbm / 1W |
| 8 | 4G LTE | 2500-2690MHZ | 30dbm / 1W |
| 9 | 4G2 1700 | 1710-1780MHz | 33dbm / 2W |
| 10 | 4GH 2300 | 2300-2400MHZ | 30dbm / 1W |
| 11 | Walkie-Talkie VHF1 | 135-200MHZ | 35dbm / 3W |
| 12 | Walkie-Talkie UHF2 | 200-300MHZ | 35dbm / 3W |
| 13 | UHF3+RC315 | 300-400Mhz | 35dbm / 3W |
| 14 | UHF4+RC433 | 400-500MHZ | 35dbm / 3W |
| 15 | LOJACK | 167-175MHZ | 35dbm / 3W |
| 16 | GPSL1 | 1570-1580Mhz | 33dbm / 2W |
| 17 | GPSL2+L5 | 1170-1280MHZ | 33dbm / 2W |
| 18 | GPSL3+L4 | 1370-1390MHZ | 33dbm / 2W |
| Power supply: AC adapter 50 to 60Hz, (110 or 220V AC-12V DC) Car storage battery Charger DC12V | |||
| Dimensions: (length ,width, height) 460x 238x 60mm(not Include Antenna) | |||
| Packing size: 55*44*15cm Net weight: 7kg Gross weight: 8.0kg | |||
| Total power:42W Shielding radius: (2-40) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters |
|||
| Warranty: one year from delivery date | |||
| Key technical specifications: SA-018C | |||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | CDMA | 850-894MHz | 35dbm / 3W |
| 2 | GSM | 925-960MHZ | 35dbm / 3W |
| 3 | DCS | 1805-1880MHZ | 33dbm / 2W |
| 4 | PCS | 1900-1990MHz | 33dbm / 2W |
| 5 | 3G | 2110-2170MHZ | 33dbm / 2W |
| 6 | WIFI 2.4G | 2400-2500MHZ | 30dbm / 1W |
| 7 | WIFI5.2G | 5100-5500MHz | 30dbm / 1W |
| 8 | WIFI5.8G | 5500-5900MHz | 30dbm / 1W |
| 9 | 4G1 LTE | 700-805 or 790-826MHz | 33dbm / 2W |
| 10 | 4G LTE | 2500-2690MHZ | 30dbm / 1W |
| 11 | 4G2 1700 | 1710-1780MHz | 35dbm / 3W |
| 12 | 433 (car remote control) | 433MHZ | 35dbm / 3W |
| 13 | 315 (car remote control) | 315MHZ | 35dbm / 3W |
| 14 | VHF | 135-175Mhz | 35dbm / 3W |
| 15 | UHF | 400-470MHZ | 35dbm / 3W |
| 16 | LOJACK | 167-175MHZ | 33dbm / 2W |
| 17 | GPSL1 | 1570-1580Mhz | 33dbm / 2W |
| 18 | GPSL2+L5 | 1170-1280MHZ | 33dbm / 2W |
| Power supply: AC adapter 50 to 60Hz, (110 or 220V AC-12V DC) Car storage battery Charger DC12V | |||
| Dimensions: (length ,width, height) 460x 238x 60mm(not Include Antenna) | |||
| Packing size: 55*44*15cm Net weight: 7kg Gross weight: 8.0kg | |||
| Total power:40W Shielding radius: (2-40) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters |
|||
| Warranty: one year from delivery date | |||
Application:
It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security.
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument.
Packing Lists:
Jammer Host x 1pcs
AC Adapter x 1pcs
Antenna x 18pcs
Car storage battery cable x 1pcs
