Product Details:
|
| Product Name: | School Signal Jammer | Frequencies: | 200-6Ghz |
|---|---|---|---|
| Working Time: | 24 Hours Non-stopped | Power Supply: | AC110 Or 220-240V /DC 24V |
| Dimension: | 410 X 240 X 100mm | Weight: | 6.0kgs |
| High Light: | UMTS Prison Cell Phone Jammers,DC24V Prison Cell Phone Jammers,Infrared VHF UHF Signal Jammer |
||

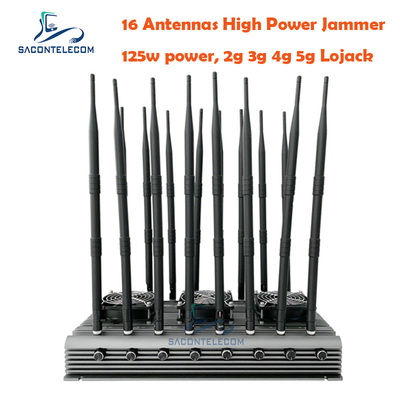

16 Channels DC24V Infrared Remote Control 200-6000Mhz Adjustable Prison Cell Phone Jammers
Advantages:
1. 16 channels, each band power can be adjustable;
2. Frequencies can be customized; such as 2G 3G 4G 5G WiFi2.4G, WiFi5.8G, VHF, UHF, GPS, Lojack, 315mhz, 433mhz, 868mhz, etc;
3. 125w high power, 60 meters long radius;
4. 3 big cooling fans, 24 hours work with non-stopped;
5. Infrared Remote Control Turn ON/OFF Power;
6. All Frequency can mix very Flexible, Each module/Band is independent.
Basic informations:
Model type: SA-NJ16S (A,B,C,D)
Output power: 125w
Radius: 20~60 meters (-75dBm@Omnidirectional antennas)
Antennas: 16pcs omni antenna
Remote control to turn on/off: Yes
Power supply: AC100-240V or DC 24V
Cooling fans: 3pcs
Working time: 24 hours non-stopped
Dimension: 410 x 240 x 100mm
Weight: 6kgs
Warranty: 12 months
Frequencies can be customized, OEM, ODM is available.
Specifications:
|
Europe Type A |
Europe Type B |
America Type C |
America Type D
|
|
758-830MHz: 10W 5G, 4G LTE Low |
758-830MHz: 10W 5G, 4G LTE Low |
850-895MHz: 10W CDMA 850 |
850-895MHz: 10W CDMA 850 |
|
920-965MHz: 10W GSM900 |
920-965MHz: 10W GSM900 |
1800-2000MHz: 10W DCS, PCS |
1800-2000MHz: 10W DCS, PCS |
|
1800-1920MHz: 10W DCS |
1800-1920MHz: 10W DCS |
2100-2170MHz: 10W 3G, UMTS |
2100-2170MHz: 10W 3G, UMTS |
|
2100-2170MHz: 10W 3G, UMTS |
2100-2170MHz: 10W 3G, UMTS |
2300-2500MHz: 8W 4G LTE + WiFi 11.b & g |
2300-2500MHz: 8W 4G LTE + WiFi 11.b & g |
|
2400-2500MHz: 8W WiFi 11.b & g |
2400-2500MHz: 8W WiFi 11.b & g |
2500-2700MHz:8W 4G WiMAX Sprint |
2500-2700MHz:8W 4G WiMAX Sprint |
|
2570-2690MHz:8W 4G LTE High |
2570-2690MHz:8W 4G LTE High |
700-800MHz: 10W 4G LTE USA iPhone (AT&T & Verizon) |
700-800MHz: 10W 4G LTE USA iPhone (AT&T & Verizon) |
|
1450-1500MHz 10W 5G |
1450-1500MHz 10W 5G |
5G 617-652MHz 10W 5G |
5G 617-652MHz 10W 5G |
|
5G 3400-3800MHz 4W 5G |
5G 3400-3800MHz 4W 5G |
868MHz: 10W Car Remote |
1370-1390MHz: 10W GPS L3+ L4 |
|
164-173MHz: 5W Lojack Car Tracking |
164-173MHz: 5W Lojack Car Tracking |
173MHz: 5W Lojack Car Tracking |
173MHz: 5W Lojack Car Tracking |
|
1570-1620Mhz: 10W GPS: L1 + Glonass L1 |
1570-1620Mhz: 10W GPS: L1 + Glonass L1 |
1570-1620Mhz: 10W GPS: L1 + Glonass L1 |
1570-1620Mhz: 10W GPS: L1 + Glonass L1 |
| 1220-1280MHz: 10W GPS L2 + L5 +Glonass L2 | 1220-1280MHz: 10W GPS L2 +L5+ Glonass L2 | 1220-1280MHz: 10W GPS L2 +L5+ Glonass L2 | 1220-1280MHz: 10W GPS L2 +L5+ Glonass L2 |
|
1370-1390MHz: 10W GPS L3+ L4 |
5.1-5.9GHz:4.0W WiFi 11.a |
5.1-5.9GHz:4.0W WiFi 11.a |
5.1-5.9GHz:4.0W WiFi 11.a |
|
130-200MHz: 5W VHF |
130-200MHz: 5W VHF |
130-200MHz: 5W VHF |
130-200MHz: 5W VHF |
| 200-300MHz: 5W | 200-300MHz: 5W | 200-300MHz: 5W | 200-300MHz: 5W |
|
300-400MHz: 5W 315MHz Car Remote |
300-400MHz: 5W 315MHz Car Remote |
300-400MHz: 5W 315MHz Car Remote |
300-400MHz: 5W 315MHz Car Remote |
|
400-500MHz: 5W UHF, 433MHz |
400-500MHz: 5W UHF, 433MHz |
400-500MHz: 5W UHF, 433MHz |
400-500MHz: 5W UHF, 433MHz |
| Total: 122 W | Total: 125 W | Total: 125 W | Total: 125 W |
|
Option: Remote/Alarm Control 315MHz, 433MHz, 868MHz, All Frequency can mix very Flexible, Each module/Band is independent |
|||
|
Adjustable Output Power/LED each Band/Channel, Max Output Power to 0 (OFF) 2-5 Meters with Infrared Remote Control Turn ON/OFF Power |
|||
| Power supply: | AC100-240V or DC 24V | ||
| Jamming Range | Radius 20~60 meters (-75dBm@Omnidirectional antennas) | ||
| Weight | 6.0Kg | ||
| Dimension: | 410 x 240 x 100mm | ||
| Working time: | Without the time limit, May continue to work, | ||
| Antenna | 380 mm Long | ||
| Warranty: | 1 year | ||
Packing Lists:
mobile signal jammer 1pcs
remote control 1pcs
power adaptor 1pcs
antenna 16pcs
Applications:
1. It can be applied at meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more
2. For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
