Product Details:
|
| Product Name: | 5 Bands Mobile Signal Amplifier | Coverage: | 1000m2 |
|---|---|---|---|
| Frequency: | 4G LTE800, 900mhz, 1800mhz, 2100mhz, 2600mhz | Output Power: | 23dBm |
| Gain: | 75dB | Weight: | 7kgs |
| High Light: | ALC AGC Mobile Phone Signal Booster,23dBm Mobile Phone Signal Booster,Gain 75dB mobile signal amplifier |
||
23dBm 800 900 1800 2100 2600mhz 75dB Gain 5 Bands Mobile Phone Signal Booster Factory Manufacturer
Descriptions of five bands mobile repeater:
This muti-band indoor cell phone signal booster supports LTE 4G800mhz, GSM900, DCS1800, 3G 2100mhz and 4G LTE2600mhz B20 B8 B3 B1 B7 signals. Output power is 23dBm, gain 75dB with LED display. This 5 bands mobile repeater supports ALC and AGC. Frequencies can be customized to others as you need.
Features of mobile phone booster:
1. Support 5 bands cell phone signals, 800/900/1800/2100/2600mhz;
2. 23dBm output power, 75dB high gain;
3. LED display;
4. ALC and AGC functions;
5. OEM and ODM is available;
6. Fast shipment, 1 year warranty.
Specifications of network booster:
| Specification | Uplink | Downlink | |
| Frequency | LTE800 | 832MHz-862MHz | 791MHz-821MHz |
| GSM900 | 890MHz-915MHz | 935MHz-960MHz | |
| LTE1800 | 1710MHz-1785MHz | 1805MHz-1880MHz | |
| UMTS2100 | 1920MHz-1980MHz | 2110MHz-2170MHz | |
| LTE2600 | 2500MHz-2570MHz | 2620MHz-2690MHz | |
| Operation Bandwidth | Wide Band | ||
| Gain | ≥70dB | ≥75dB | |
| Output Power | ≥20dBm | ≥23dBm | |
| MGC (Manual Gain Control) | 31dB Range/1dB step | ||
| Ripple in Band | 8dB | ||
| Noise Figure | ≤ 6dB | ||
| VSWR | ≤2.0 | ||
| ALC | 25dB | ||
| Intermodulation Products | ≤ -40dBc | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36dBm/30KHz | |
| 1GHz~12.75GHz | ≤ -30dBm/30KHz | ||
| Frequency stability | ≤ 0.01ppm | ||
| MTBF | > 50000 hours | ||
| Time Delay | ≤1.5μs | ||
| Impedance | 50Ω | ||
| Power Supply | Input: AC 110~240V; Output: DC 10V/6A | ||
| LED Alarm | Power LED | DC ON/OFF | |
| Smart LED | Smart function ON/OFF | ||
| AGC Alarm | Alarm RED when ALC 5dB-10dB | ||
| ISO Alarm |
Alarm RED when ALC 20dB-25dB, Then Repeater will Auto Shut Down. Auto restart after two minutes. |
||
| Mechanical Specification | |||
| RF Connector | N-Female | ||
| Power Consumption | 25W | ||
| Operating Temperature | -10ºC~ +55ºC | ||
| Environment Conditions | IP40(Indoor) | ||
| Installation Type | Wall Installation | ||
| Dimensions (D x W x H ) | 400*170*65mm | ||
| Weight | 7 KG | ||

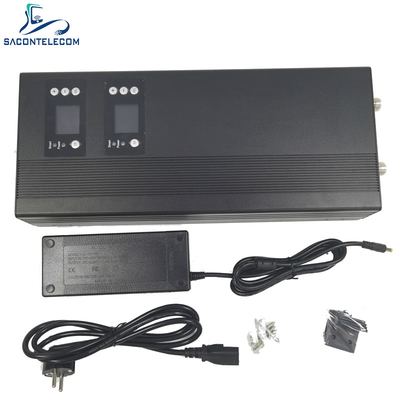

Standard Package of mobile signal amplifier:
AC90-264V, DC power supply adapter 1PCS
AC power cord (EU/US/UK/SA/China standard, etc) 1PCS
Installation kit 1PCS
User manual 1PCS
Recommended Accessories:
Donor antenna: Log Periodic Antenna (9dBi,806-960/1710-2700MHz)
Service antenna: Omni Ceiling Antenna (3dBi,806-960/1710-2700MHz)
5D-FB coaxial cable with connecter (Cable length optional)
Application of mobile signal extender:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, Shop.etc.
