Product Details:
|
| Product Name: | Uav Drone Detection And Counter System | Frequency Range: | 2.4G+5.8g+GPS+915MHz |
|---|---|---|---|
| Distance: | 1-3(km) | Power Consumption: | 280W |
| Size: | 500*500mm | Weight: | 15kgs |
| High Light: | 360 Degree UAV Signal Jammer,3KM Distance UAV Signal Jammer,Detection Counter System Drone Signal Jammer |
||
Manufacturer 3KM distance 360 degree UAV Drone Signal Detector Anti Drone Signal Jammer
Description of Drone Detection Counter System:
Sacontelecom is a professional manufacturer of all kinds of signal jammers in China over 10 years. Today let me introduce this drone signal detector and jammer system SA-UAV-JM002.
This jamming and detecting device supports detection and counter function, smaller and lighter, it is full-band detection, from 400mhz-6Ghz. This Drone Detection Counter System is suitable for industrial, consumer and WIFI drones. It can process more than 10 targets at the same time, detect, identify, locate and counteract. This drone jammer distance is up to 3km.
Features of 360 degree Portable Uav Jamming System:
1. 360 degree;
2. With Radar Detection 2.4G 5.8g 1.5g 900MHz;
3. Self-learning and identifying undocumented drones, including industrial drones, consumer drones;
4. Identify the drone model and locate the azimuth and distance of the drone;
5. Unattended and manual work, two working modes;
6. 160MHz real-time processing bandwidth;
7. Multi-antenna array design, suitable for urban complex electromagnetic environment, the detection distance can reach more than 1.0km, and the detection distance in suburban open environment can reach 1km-3km, depending on the electromagnetic environment;
8. Aerial drone signal feature recognition. For drones with no data in the database, you can enable the self-learning function, and the system will prompt you to enter a new model after the detection is complete. This ensures that the system will be able to identify any drone, making up for the lack of a database;
9. Special frequency hopping signal identification technology, which can distinguish multiple remote controllers and industrial-grade frequency hopping drones. (Some drones do not have broadband image signals and use frequency hopping signals to aggregate images);
10. Whitelist function, when a drone is detected, click the result bar to whitelist the drone. There is no need to pre-record the remote control signal, and the whitelisted unmanned aircraft will not be countered when unattended;
11. Unique patented design of intelligent gain and reference level can adapt to complex electromagnetic environment detection needs without any manual operation
Specifications of Uav Detection and Accurate Jamming:
Parameter:
| Equipment type: | Spectrum detection and counter |
| Radio Frequency: | From 400MHz to 6GHz |
| Real-time detection bandwidth: | 160MHz |
| Horizontal detection angle range: | 0°-360° |
| Detection distance: | Under normal circumstances, it can reach at least 1.0 kilometers; in open areas in the suburbs, it can reach 1-3 kilometers, depending on the electromagnetic environment. |
| Counter frequency: Defaults Defaults Defaults Defaults |
900-930MHz 40±1dBm 1559-1610MHz 40±1dBm 2400-2485MHz 40±1dBm 5725-5850MHz 43±1dBm |
| GPS automatic positioning: | √ |
| Device Orientation Awareness for the North Arrow | |
| Set up a whitelist: | √ |
| WIFI drone identification: | √ |
| Identifying industrial-grade drones | √ |
| Autonomous identification of undocumented drones | √ |
| Operating temperature: | -20°to +60° |
| Storage temperature: | -40°to +70° |
| Maximum power consumption: | <280W(sending) |
| Weight | 15Kg |

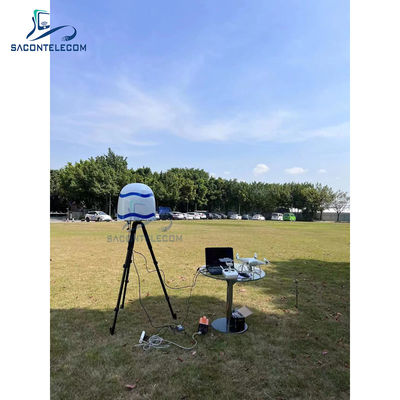

Photos of Uav Detection and Counter System:
