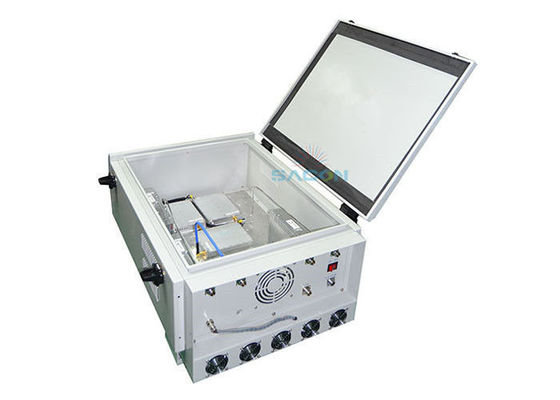

350W High Power VHF UHF Vehicle Mounted Jammer with 6 Bands Coverage and 1000m Jamming Range

1000m Long Range Vehicle Mounted Jammer Block UAV Drone

Mobile signal jammer blocker breaker manufacturer in China

High Power 6 bands vehicle mounted mobile phone jammer with huge jamming range between 500-1000 meters. Can be supplied with directional or omni-directional antennas. Designed for the protection of VIPs and groups of people from radio controlled improvised explosions by disabling the radio exploder control lines in dangerous areas and for the prevention of leakage of information through intercepting units during confidential talks.

• Each unit can simultaneously jam 6-8 frequency bands
• Continuous working even in hotter environment with no time limits
• Designed for outdoor application and easy installation
• Protection mechanism to avoid sabotage
• Accept options - Omni or directional antennas
• Selection of antennas to provide more humanized regarding the jamming range
• Addition for option: wireless RC or Ethernet PC remote control
• Each modular has 100% Safe VSWR over protection

• WIFI5.2G: 5100-5500MHz - 47dBm / 50W
• GSM: 925-960MHz - 50dBm / 100W
• PCS: 1930-1990MHz - 50dBm / 100W
• 3G: 2110-2170MHz - 50dBm / 100W
• 4G LTE 2600: 2490-2690 MHz - 50dBm / 100W
• 4G LTE 700: 725-803 MHz - 50dBm / 100W
• Wi-Fi 2.4G+4G2300: 2345-2500MHz - 50dBm / 100W
• WIFI5.2G: 5100-5500MHz - 47dBm / 50W
• Wi-Fi 5.8G: 5500-5580MHz - 47dBm / 50W
• WiFi3.6G: 3500-3600MHz - 47dBm / 50W
• GPSL2+L5: 1170-1280MHz - 50dBm / 100W
• LOJACK & XM radio: 167-175MHz - 50dBm / 100W
• VHF1: 130-190MHz - 50dBm / 100W
• UHF2: 190-300MHz - 50dBm / 100W
• UHF3: 300-400MHz - 50dBm / 100W
• UHF4: 400-500MHz - 50dBm / 100W
• 4G1 LTE 850: 791-821MHz - 50dBm / 100W
• 4G1 LTE 1800: 1805-1880MHz - 50dBm / 100W
• CDMA: 851-894MHz - 50dBm / 100W

• Power supply: AC adapter 50 to 60Hz, (110 or 240V AC-27V DC)
• Dimensions: (L) 740*510*350mm (not include antenna)
• Package size: 90*70*50cm
• Net weight: 70kg
• Gross weight: 75kg + 20kg antennas = 95kg
• Working temperature: -30 to 60°C
• Total power: 350W
• Shielding radius: (300-1000) meters At -75dBm
• Still depends on the strength signal in given area
• Shielding radius of VHF/UHF signal should be lesser than cell phone signal
• Warranty: one year from delivery date

• It can be applied at prisons, meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more.
• For some locations of special purpose such as hospitals, gas stations and more, Please do field test first to make sure no interference happened to the normal operation of their equipment and instrument.

• 1 x English User Manual (If you need, we will send the scan file via email, it will avoid some possible custom issue)
• AC Power Charger (we will send correct standard power charger which according customer's shipping address)
• Mounting Screws
• Band Specific Antennas x 6
