Product Details:
|
| Product Name: | AWS Mobile Repeater | Frequency: | AWS1700mhz |
|---|---|---|---|
| Output Power: | 30dBm | Gain: | 80dB |
| Size: | 250mm*170mm*53mm | Weight: | 3.5kg |
| High Light: | cell phone signal boosters,cell phone signal extender |
||
30dBm Wide Band Mobile Phone Booster AWS1700 Frequency 80dB High Gain America
Descriptions:

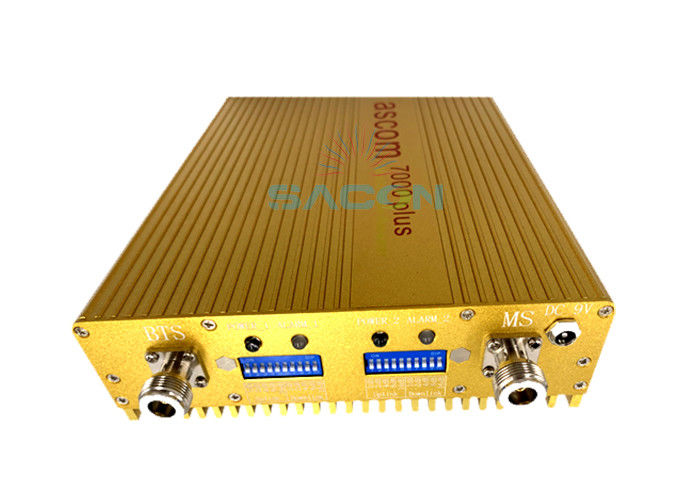

This cell phone signal booster series is our new items, it is very popular in the market. We can do the power at 20dBm, 23dBm 27dBm and 30dBm. It can be for GSM900mhz, CDMA800mhz, DCS1800mhz, PCS1900mhz and 3G2100mhz frequencies. Today I will introduce the 30dBm AWS1700 pico repeater. This AWS indoor signal booster is for AWS1700mhz signals, it can solve the probelm which has very low signals, and you can't get call stably. It has dip switch design, so you can adjust the gain manually. This mobile phone booster SA-30-GSM has ALC and AGC functions. It has 2 colors for selections-----black and gold. This gold mobile signal repeater has high power 30dBm and 80dB gain, it can cover 3500m2 range.
Features:
1. Cost effective solution for weak signal zones,
2. Compact size, low power consumption, easy installation, great cover.
Expansion and extention of the signal of base station.
Optimization of the quality of the signal and source
3. Cover about 3500m2 without block or obstruct.
4. High linear design, ALC function design, low interference to BTS.
5. Support any cellular devices (voice & data & video)
6. Black color and gold color for setection.
7. With Dip switch, easy to adjust the gain.
Applications:
To expand signal coverage of fill signal blind area where signal is weak or unavailable.
Specifications:
| Frequency Range | Uplink | Downlink | ||
| AWS1700 | 1710 - 1755MHz | 2110 - 2155MHz | ||
| Max. Gain | 75dB±2db | 80dB±2db | ||
| Max. Output Power | 27 dBm | 30 dBm | ||
| Band width | Wide Band | |||
| Manual Gain Control | 31dB / 1dB Step | |||
| Automatic Gain Control | >20dB | |||
| Ripple in-band | ≤ 6dB | |||
| Return loss | ≤ -10dB | |||
| Noise Figure | ≤ 6dB | |||
| Spurious Emission &Intermodulation |
9KHz~1GHz | ≤ -36dBm | ||
| 1~12.75GHz | ≤ -30dBm | |||
| WCDMA | Spurious Emission Mask | Meet 3GPP TS 25.143 ( V 6.2.0 ) | ||
| Modulation Accuracy | ≤ 12.5% | |||
| Peak Code Domain Error | ≤ -35dB@Spreading Factor 256 | |||
| Time Delay | ≤ 1.5 μs | |||
| Frequency stability | ≤ 0.01ppm | |||
| MTBF | > 50000 hours | |||
| Power Supply | AC100-240V,DC9V/5A | |||
| Power LED | Power indicator | |||
| Impedance | 50 ohm | |||
| Alarm LED | Red | Autoexcitation or High Power | ||
| Green | Standard | |||
| Mechanical Specification | ||||
| RF Connector | N-Female | |||
| Switch | Power SwitchManual Gain Control Switch | |||
| Cooling | Heatsink Convection cooling | |||
| Humidity | < 90% | |||
| Operating Temperature | -10°C~55°C | |||
| Environment Conditions | IP40 | |||
| Installation Type | Wall Installation | |||
| Size | 250mm*170mm*53mm | |||
| Weight | 3.5Kg | |||
Recommended Accessories:
1)Donor antenna: Log Periodic Antenna (9dBi,806-960/1710-2700MHz)
2)Service antenna: Omni Ceiling Antenna (3dBi,806-960/1710-2700MHz)
3)5D-FB coaxial cable with connecter (Cable length optional)
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What is the lead time?
A: Sample is 1-3 days, mass production time is 3 -7 days for order less than 100 pcs.
Q: Do you have any MOQ limit?
A: Our MOQ EXW is 1pcs.
Q: How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT international express. It usually takes 3-5 days to arrive.
Also we can send your goods by air and by ship if you need.
Q: Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for the products.
Q: Do you accept drop shipping?
A: Yes, it's available
Standard Package:
AC90-264V, DC5V/5A power supply adapter 1PCS
AC power cord (EU/US/UK/SA/China standard, etc) 1PCS
Installation kit 1PCS
User manual 1PCS
