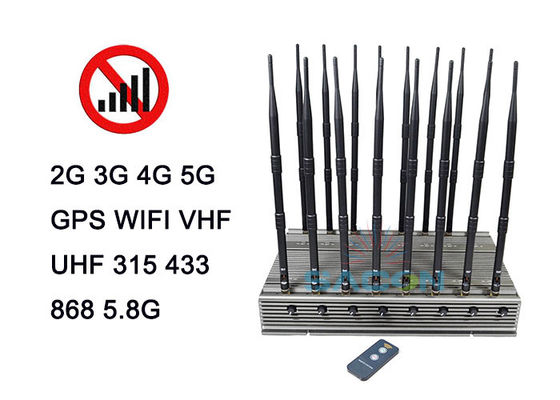

16 Antennas 5G Network Blocker Device 5-8w Each Band 315Mhz 433Mhz VHF UHF All GPS
Product Overview

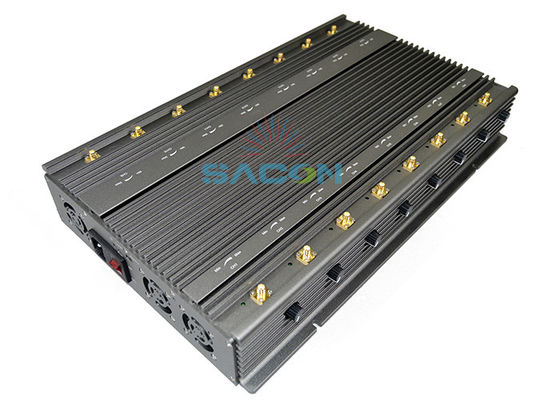

This SA-016S 5G signal jammer is a multiband blocking device capable of jamming 16 frequency bands including GSM, CDMA, DCS, 3G, 4G, 5G, WiFi, GPS, Bluetooth, VHF, UHF, Lojack, Camera Video, 315MHz, 433MHz, 868MHz and more. Designed for global compatibility, it covers mobile phone frequencies used in Europe, Asia, Australia, Middle East, and Africa.
With each band delivering 3-10 watts of power and total output up to 100W, this jammer provides coverage up to 80 meters. The unit features five internal cooling fans for continuous 24/7 operation and includes vehicle compatibility with individual channel controls and infrared remote control functionality.
Key Features
- Adjustable working range to avoid blocking adjacent areas
- Multi-use, powerful jamming capabilities
- 16 individually adjustable frequency channels
- User-friendly operation and maintenance
- 24/7 continuous operation capability
- Advanced cooling system with unique case design and 5 low-noise internal fans
- Portable with vehicular power cable for mobile jamming applications
Technical Specifications
- Jamming Type: Sweep Jamming
- Antenna Type: 5dBi external omni-directional
- Power Supply: AC adapter (50 to 60Hz/100 to 240V AC-DC24V) with car charger
- Electric Field (SAR): Compatible with ICNIRP Standards (Human safe)
- Operating Temperature: -20 to +50℃
- Storage Temperature: -40 to +60℃
- Humidity: 5%-80%
- Dimensions (L×W×H): 445 × 272 × 70mm (excluding antennas)
- Inner Box Dimension: 445 × 428 × 80mm
- Weight: 8kg
Type A Specifications
| Channel |
Output Port |
Frequency Range |
Average Output Power |
| 1 | GSM850MHz | 850-894MHz | 8W |
| 2 | GSM900 | 925-960MHz | 8W |
| 3 | DCS/PCS | 1805-1880/1920-1990MHz | 8W |
| 4 | 3G | 2110-2180MHz | 8W |
| 5 | 4G LTE 700 | 700-803 or 790-862MHz | 8W |
| 6 | 4G LTE 1700 | 1700-1800MHz | 8W |
| 7 | 4G Wimax | 2500-2690 or 2300-2400MHz | 8W |
| 8 | WiFi/Bluetooth 2.4G | 2400-2500MHz | 8W |
| 9 | GPS L1 | 1570-1580MHz | 4W |
| 10 | GPS L2+L5 | 1170-1280MHz | 4W |
| 11 | GPS L3+L4 | 1370-1390MHz | 4W |
| 12 | 5G 3.6G | 3600-3900MHz | 3W |
| 13 | 5G 600/5G 1500 | 617-685/1427-1518MHz | 8W |
| 14 | 5G 3.5G | 3400-3600MHz | 3W |
| 15 | RC433 | 430-440MHz | 5W |
| 16 | RC315 | 310-320MHz | 5W |
Total Power: 100W | Shielding Radius: 10-80 meters at -75dBm (dependent on signal strength in given area)
Type B Specifications
| Channel |
Output Port |
Frequency Range |
Average Output Power |
| 1 | GSM850MHz | 850-894MHz | 8W |
| 2 | GSM900 | 925-960MHz | 8W |
| 3 | DCS/PCS | 1805-1880/1920-1990MHz | 8W |
| 4 | 3G | 2110-2180MHz | 8W |
| 5 | 4G LTE 700 | 700-803 or 790-862MHz | 8W |
| 6 | 4G LTE 1700 | 1700-1800MHz | 8W |
| 7 | 4G Wimax | 2500-2690 or 2300-2400MHz | 8W |
| 8 | WiFi/Bluetooth 2.4G | 2400-2500MHz | 8W |
| 9 | GPS L1 | 1570-1580MHz | 4W |
| 10 | GPS L2+L5 | 1170-1280MHz | 4W |
| 11 | GPS L3+L4 | 1370-1390MHz | 4W |
| 12 | 5G 3.6G | 3600-3900MHz | 3W |
| 13 | 5G 600/5G 1500 | 617-685/1427-1518MHz | 8W |
| 14 | 5G 3.5G | 3400-3600MHz | 3W |
| 15 | Wi-Fi 5.2G | 5100-5500MHz | 1.2W |
| 16 | Wi-Fi 5.8G | 5500-5900MHz | 1.2W |
Total Power: 93W | Shielding Radius: 10-80 meters at -75dBm (dependent on signal strength in given area)
OEM Customized Service
We offer silkscreen OEM services and customized frequency configurations based on your specific requirements.
Applications
Suitable for meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, cars, buses, and other secure environments.
Package Contents
- 1 × Signal Jammer
- 1 × AC Charger
- 1 × Car Charger
- 16 × Antennas
