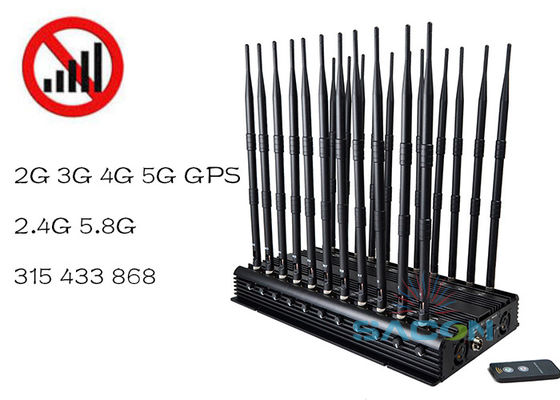

WiFi Infrared Remote Control 22 Antennas 5G Signal Jammer Blocker
Product Overview
This advanced 22-antenna all-in-one signal jammer delivers powerful jamming capability for mobile phone 5G/LTE/GSM/3G/4G signals. It effectively blocks all 5G, 3G, and 4G mobile phone signals while also jamming Wi-Fi 2.4G/5GHz, GPS LOJACK, RF 315MHz/433MHz, VHF/UHF Walkie-Talkie, and wireless headset/microphone signals.
The desktop high-power jammer SA-022B features a total output of 42W with a built-in efficient cooling system, enabling continuous 24/7 operation. This network jammer includes adjustable controls for each frequency band, car charger compatibility for mobile use, and infrared remote control for power management.
Key Features
- Full-band 22-channel design with customizable frequency ranges
- High output power up to 45W total with jamming radius up to 40 meters
- External omni-directional antennas covering all TX frequencies
- Car storage battery charger compatibility (DC12V)
- Built-in efficient cooling system for non-stop operation
- Individual band adjustment without affecting other bands
- Infrared remote control for power management (2-5 meter range)
OEM Services
Custom silkscreen OEM services are available upon request.
Technical Specifications
Jam Signal Types: 5G, 4G, 3G, 2G, GPS, WiFi, Infrared, RF signals
Output Power: Total 45W, 1-3W per band
Jam Radius: 2-40 meters
Power Supply: AC110/220V to DC12V
Cooling System: High-efficiency aluminum alloy radiator with 5 built-in cooling fans
Working Time: Continuous non-stop operation
Product Size: 450 × 238 × 60 mm (excluding antennas)
Product Weight: Approximately 8kg
Frequency Specifications
| Channel |
Output Port |
Frequency Range |
Average Output Power |
| 1 | CDMA/RC868 | 850-894MHz | 35dbm / 3W |
| 2 | GSM | 925-960MHz | 35dbm / 3W |
| 3 | DCS | 1805-1880MHz | 33dbm / 2W |
| 4 | 3G | 2110-2170MHz | 33dbm / 2W |
| 5 | 4G800 | 758-821MHz | 35dbm / 3W |
| 6 | 4G2600 | 2570-2690MHz | 30dbm / 1W |
| 7 | 4G2500 | 2500-2570MHz | 30dbm / 1W |
| 8 | 4G2300 | 2300-2400MHz | 30dbm / 1W |
| 9 | 5G 1500 | 1427-1518MHz | 33dbm / 2W |
| 10 | 5G 3.4G | 3300-3600MHz | 30dbm / 1W |
| 11 | 5G 3.8G | 3600-3900MHz | 30dbm / 1W |
| 12 | 5G 4.0G | 3900-4200MHz | 30dbm / 1W |
| 13 | WIFI 2.4G | 2400-2500MHz | 30dbm / 1W |
| 14 | WIFI 5.2G | 4900-5500MHz | 30dbm / 1W |
| 15 | WIFI 5.8G | 5500-5900MHz | 30dbm / 1W |
| 16 | GPSL1 | 1570-1580MHz | 33dbm / 2W |
| 17 | GPSL2+L5 | 1170-1280MHz | 33dbm / 2W |
| 18 | GPSL3+L4 | 1370-1390MHz | 33dbm / 2W |
| 19 | LOJACK | 167-175MHz | 35dbm / 3W |
| 20 | VHF | 135-175MHz | 35dbm / 3W |
| 21 | UHF/RC433 | 400-470MHz | 35dbm / 3W |
| 22 | RC315 | 315MHz | 35dbm / 3W |
Package Contents: Jammer Host × 1, AC adapter × 1, Antennas × 22, Car storage battery cable × 1, Infrared Remote Control × 1
Warranty: One year from delivery date
Applications
Ideal for use in meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, buses, and other locations requiring silence, confidentiality, and information security.
For sensitive locations such as hospitals and gas stations, please conduct field testing first to ensure no interference occurs with normal equipment and instrument operation.
